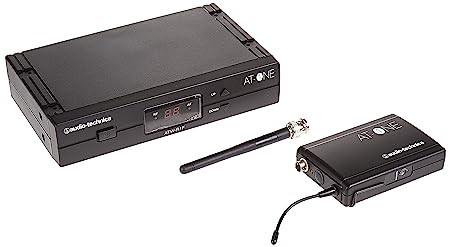

Audio Technica ATW11F Microphone
₹34,015.86

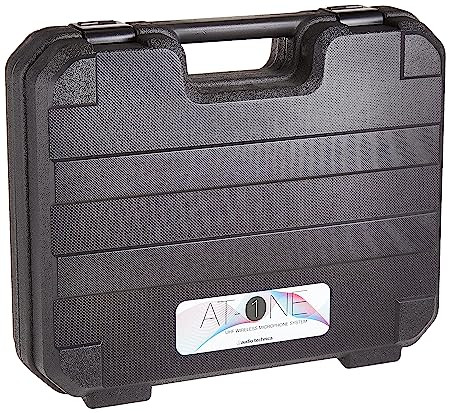

Introducing AT-One, the entry-level UHF wireless system from Audio-Technica. The AT-One is equipped with a 2 x 4 channel frequency plan for increased versatility, a strong but attractive build quality, and a straightforward user interface, making it the ideal wireless companion for you. One has been created with simplicity and use in mind. The AT-One is the excellent choice for individuals looking for accurate, dependable performance at an entry level price. It comes with a convenient carrying bag, rack-mount kit, and detachable antennae.
In Stock & Ready to ship
0 views Today
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
FREQUENCY RESPONSE:60 Hz - 16 kHz SENSITIVITY:10dBµV (S/N 60dB @ 20 kHz deviation) FREQUENCY STABILITY:+/- 0.005%, Phase lock loop frequency control MODULATION MODE:FM ACCESSORIES:AC Adapter, Antennas, Rack mount adapter, protective carrying case FOUR-PIN LOCKING CONNECTOR:Pin 1: GND Pin 2: INST Pin 3: Mic Pin 4: DC Bias +10V AUDIO OUTPUT DIRECT OUTPUT 1:Unbalanced -2dBV AUDIO OUTPUT DIRECT OUTPUT 2:Balanced 4dBV OUTPUT CONNECTOR :(Microphone) Balanced: XLRM-type, (Instrument) Unbalanced: 6.3 mm mono jack NUMBER OF CHANNELS VOICE: 2 x 4 frequencies MAX OUTPUT LEVEL:Mic / Line (0 / -20dB) ANTENNA INPUT BNC :type, 50 - BIAS voltage 12V DC 100mA each BATTERY TYPE:Two 1.5V AA alkaline (not included) BATTERY LIFE:10 hours - depending on battery type and use pattern RECEIVING SYSTEM TRUE DIVERSITY IMAGE REJECTION:55dB minimum RF POWER OUTPUT:10 mW OPERATING FREQUENCIES:824 - 831 MHz, 863 - 865 MHz TOTAL HARMONIC DISTORTION :
- Built to be used quickly and easily.The AT-One is perfect for people looking for dependable outcomes at affordable rates since it strikes the perfect balance between affordability and performance. The AT-One frequency plan is split into two groups, each with four channels, one in the range of permitted European frequencies and the other in the duplex Gap. In a group, users can select up to 4 channels. The ATW-11F system includes a stealthy and reliable pocket transmitter. 10mW RF transmission power All Audio-Technica wireless microphones can connect to the 4-pin HRS connector on the bodypack transmitter. Two 1 5V AA batteries can power the device for up to 10 hours. LED RF Indicator robust design using high-quality materials
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Features | |
| FREQUENCY RESPONSE | 60 Hz - 16 kHz |
| SENSITIVITY | 10dBµV (S/N 60dB @ 20 kHz deviation) |
| FREQUENCY STABILITY | 0.005%, Phase lock loop frequency control |
| MODULATION MODE | FM |
| ACCESSORIES | AC Adapter, Antennas, Rack mount adapter, protective carrying case |
| FOUR PIN LOCKING CONNECTOR | Pin 1: GND Pin 2: INST Pin 3: Mic Pin 4: DC Bias +10V |
| AUDIO OUTPUT DIRECT OUTPUT 1 | Unbalanced -2dBV |
| AUDIO OUTPUT DIRECT OUTPUT 2 | Balanced 4dBV |
| OUTPUT CONNECTOR | (Microphone) Balanced: XLRM-type, (Instrument) Unbalanced: 6.3 mm mono jack |
| NUMBER OF CHANNELS VOICE | 2 x 4 frequencies |
| MAX OUTPUT LEVEL | Mic / Line (0 / -20dB) |
| ANTENNA INPUT BNC | type, 50 - BIAS voltage 12V DC 100mA each |
| BATTERY TYPE | Two 1.5V AA alkaline (not included) |
| BATTERY LIFE | 10 hours - depending on battery type and use pattern |
| RECEIVING SYSTEM TRUE DIVERSITY IMAGE REJECTION | 55dB minimum |
| RF POWER OUTPUT | 10 mW |
| OPERATING FREQUENCIES | 824 - 831 MHz, 863 - 865 MHz |
| TOTAL HARMONIC DISTORTION | <1% - 20 kHz deviation @ 1 kHz |
| DYNAMIC RANGE HH | 108 dB, BP 103 dB (@ max deviation) |
| OPERATING RANGE | 60m, typical |
| DIMENSIONS | 200 mm x 42 mm x 122 mm (W x H x D) |
