Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland VS-700R - I-O Module for SONAR V-Studio 700
Roland

Roland VS-700R - I-O Module for SONAR V-Studio 700

₹607,995.00

The Roland VS-700R I/O Module for SONAR V-Studio 700 provides seamless integration, offering exceptional audio recording, mixing, and processing capabilities for professional studios and high-performance audio production environments.

in stock ready to shipIn Stock & Ready to ship
View1 views Today
Add to Cart
enquireEnquire
phone
9940046621
true in-store experience

A True In-store Experience

Get expert advice on choosing the right instrument.

Talk to our product expert at
9940046621
9940046621
Reasons to choose us
collectionsSecured shipping
collections24/7 expert service
collectionsGenuine products
collectionsStandard warranty

Product Description

The Roland VS-700R I/O Module is an essential component of the SONAR V-Studio 700 system, designed for professional music production and audio engineering. This advanced audio interface delivers a powerful array of inputs and outputs, providing optimal flexibility for recording, mixing, and mastering in high-performance studio environments. With 24-bit/192kHz audio resolution, the VS-700R ensures crystal-clear sound quality, making it the ideal choice for those who demand exceptional audio performance.


Equipped with 8 analog inputs, 8 analog outputs, and ADAT I/O, the VS-700R facilitates seamless connectivity with a wide range of instruments, microphones, and audio gear. Its digital signal processing capabilities allow for real-time effects processing, while the motion-control fader and touch-sensitive controls offer an intuitive workflow for live performance and studio mixing.


Whether you're producing music, recording vocals, or mixing complex arrangements, the Roland VS-700R I/O Module integrates effortlessly with SONAR, providing a comprehensive, hands-on solution for modern music production. This professional-grade interface ensures reliable, low-latency performance, enhancing your overall creative workflow with its high-quality, versatile audio connectivity and cutting-edge features.

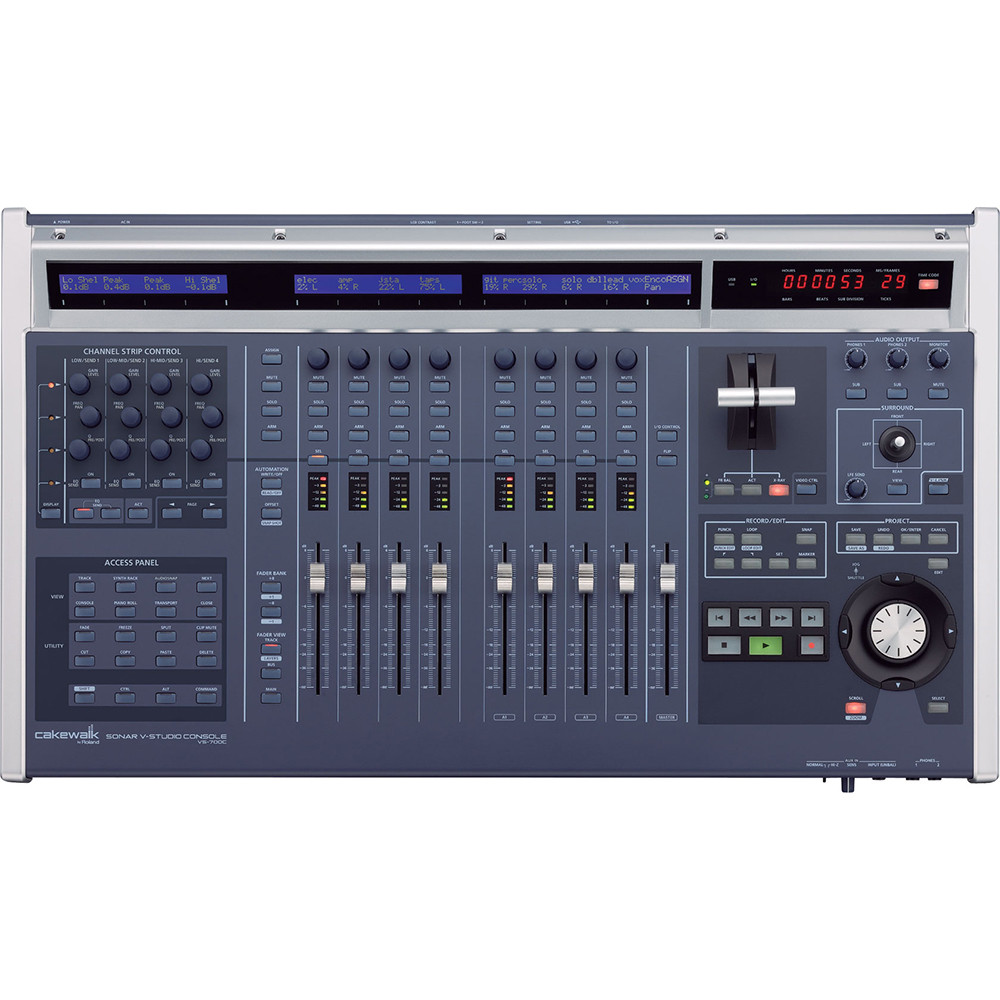

  • The VS-700C Console offers unmatched control and deep editing and mixing functionality for SONAR, surpassing any other control surface on the market today.
  • The critically acclaimed SONAR 8 Producer digital audio workstation is renowned for its music creation features and industry-leading 64-bit audio engine.

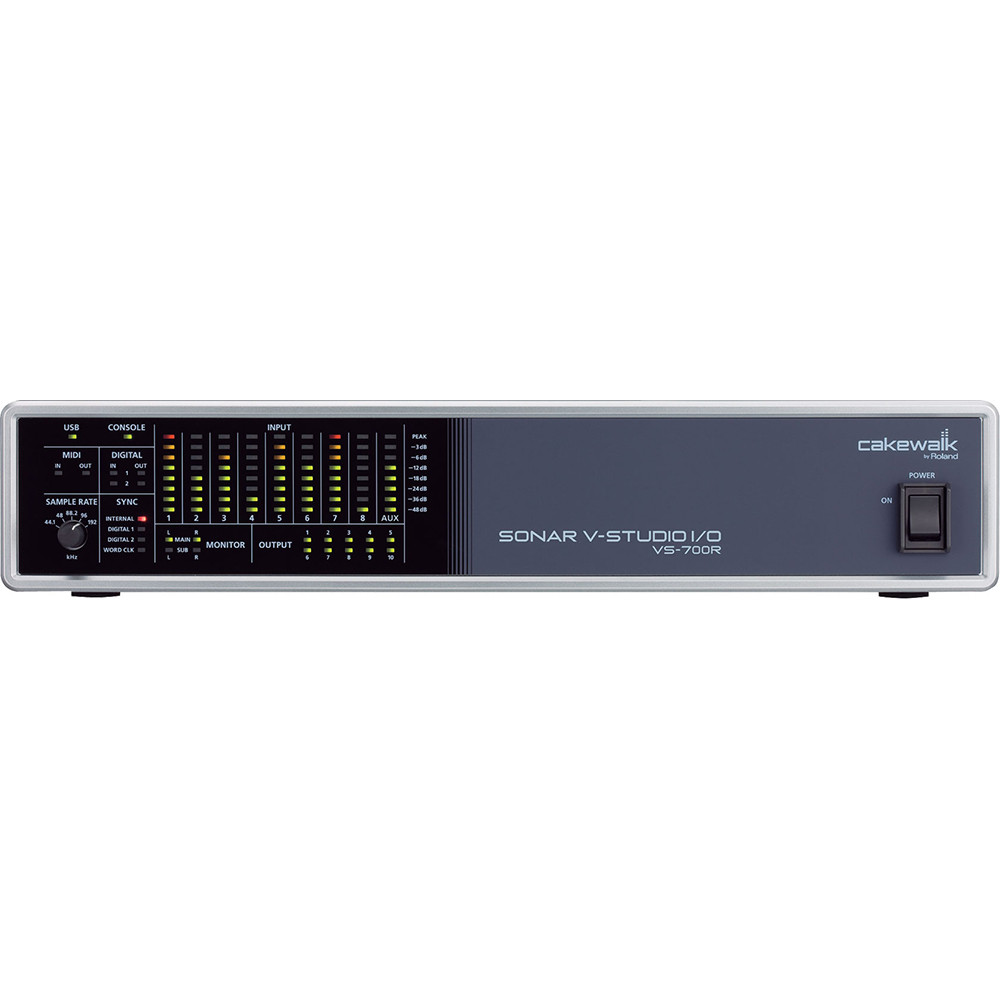

  • The VS-700R is a high-speed USB 2.0 audio interface that provides comprehensive recording and routing capabilities to handle any music production task.

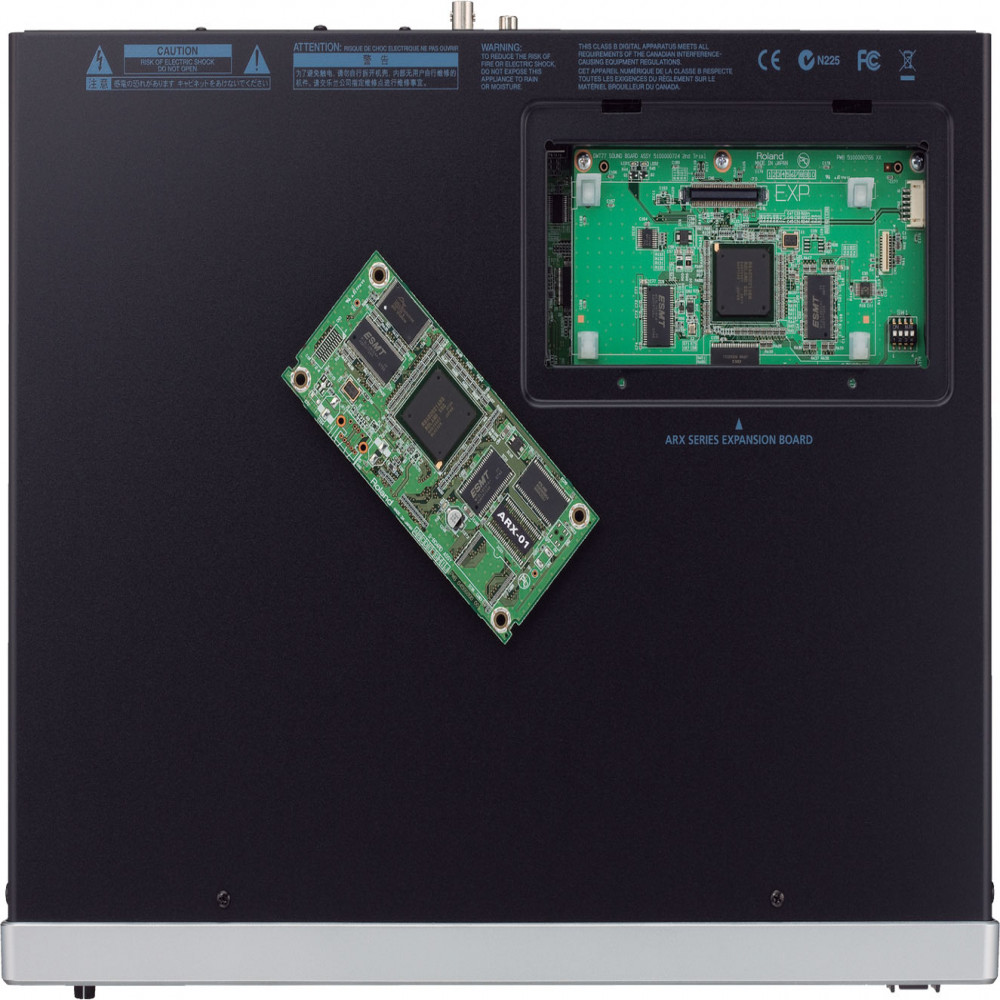

  • The 18/24 I/O module includes an onboard Fantom VS hardware synthesizer, based on the world-renowned Roland Fantom series, enhancing sound creation options.

overstockWant to sell yours?

List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price

HARDWARE SPECIFICATIONS
Number of Audio Record/Playback ChannelsRecord: 19, Playback: 24 (44.1 kHz, 48 kHz) Record: 15, Playback: 20 (88.2 kHz, 96 kHz) Record: 5, Playback: 10 (192 kHz) (*1)
Signal ProcessingPC interface: 24-bit AD/DA Conversion: 24-bit Internal: 40-bit
Sampling FrequencyAD/DA Conversion: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz DIGITAL 1, 2 (IN/OUT): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Nominal Input LevelINPUT 1-8: -40 to +4 dBu (Pad ON) -60 to -16 dBu (Pad OFF) AUX IN: -60 to -20 dBu (NORMAL) -50 to -10 dBu (Hi-Z)
Pad20 dB (ON/OFF)
Maximum Input LevelINPUT 1-8: +2 dBu (Pad OFF) +22 dBu (Pad ON) AUX IN: -2 dBu (NORMAL, SENS: min.) +8 dBu (Hi-Z, SENS: min.)
Input ImpedanceINPUT 1-8: 35 k ohms AUX In: 3 k ohms (NORMAL) 470 k ohms (Hi-Z)
Head Room18 dB
Nominal Output LevelMAIN OUT, SUB OUT, OUTPUT 1-10: +4 dBu (balanced)
Maximum Output LevelMAIN OUT, SUB OUT, OUTPUT1-10: +22 dBu (balanced) PHONES 1-2: 100 mW + 100 mW (32 ohms loaded)
Output ImpedanceMAIN OUT, SUB OUT, OUTPUT1-10: 600 ohms (balanced) PHONES 1-2: 44 ohms
Recommended Load ImpedanceMAIN OUT, SUB OUT, OUTPUT 1-10: 10 k ohms or greater PHONES 1-2: 32 ohms or greater
Phantom PowerDC +48 V (unloaded maximum), 10 mA (maximum load *) All XLR type inputs
Frequency Response (INPUT 1-8 to MAIN OUT)20 Hz - 20 kHz 0 dB/-2 dB (44.1 kHz, 48 kHz) 20 Hz - 40 kHz 0 dB/-2 dB (88.2 kHz, 96 kHz) 20 Hz - 60 kHz 0 dB/-3 dB (192 kHz) 20 Hz - 90 kHz 0 dB/-8 dB (192 kHz) (*1)
Frequency Response (AUX IN to MAIN OUT)20 Hz - 20 kHz 0 dB/-2 dB (44.1 kHz, 48 kHz) 20 Hz - 40 kHz 0 dB/-3 dB (88.2 kHz, 96 kHz) 20 Hz - 40 kHz 0 dB/-3 dB (192 kHz) 20 Hz - 90 kHz 0 dB/-12 dB (192 kHz) (*1, *2) * NORMAL/Hi-Z, SENS = min.
Total Harmonic Distortion +NoiseINPUT 1-8 to MAIN OUT: 0.07 % typ. (Pad ON, GAIN = min., -1 dB) AUX IN to MAIN OUT: 0.07 % typ. (NORMAL, SENS: min., -1 dB), 0.3 % typ. (Hi-Z, SENS: min., -1 dB) (*2, *3)
Residual Noise LevelINPUT 1-8 to MAIN OUT: -81 dBu typ. (Pad ON, GAIN = min., 400 ohms terminated, IHF-A) AUX IN to MAIN OUT: -83 dBu typ. (Pad ON, GAIN = min., 400 ohms terminated, IHF-A) (*2, *3)
Equivalent Input Noise Level (E.I.N.)INPUT 1-8: -123 dBu typ. (Pad OFF, GAIN = max.,400 ohms terminated, IHF-A) AUX IN: -120 dBu typ. (NORMAL, SENS = max., 400 ohms terminated, IHF-A) AUX IN: -108 dBu typ. (Hi-Z, SENS = max., 400 ohms terminated, IHF-A) * Output Connector = MAIN OUT (*2, *3)
Dynamic RangeAD block INPUT 1-8: 104 dB typ. (Pad ON, GAIN = min.) AUX IN: 106 dB typ. (NORMAL/Hi-Z, SENS = min.) DA block MAIN OUT, SUB OUT, OUTPUT 1-10: 108 dB typ. (*3)
Crosstalk@1 kHzINPUT 1-8 to MAIN OUT: -98 dB typ. (Pad ON, GAIN = min.) (*2, *3)
Built-in Sound Generator (Fantom VS)Parts: 16 parts Maximum Polyphony: 128 voices Wave Memory: 128 M bytes (16-bit linear equivalent) Preset: Patches 1,152 + 256 (GM2) Rhythm Sets: 19 + 9 (GM2) ARX Series Expansion: 1 slot
Display(VS-700C Console) 32 characters, 2 lines (backlit LCD) x 2 40 characters, 2 lines (backlit LCD) x 1
Connectors (VS-700C Console)AUX IN jack: 1/4 inch phone type, PHONES jacks (PHONES1, 2): Stereo 1/4 inch phone type, FOOT SW jacks (FOOT SW 1, 2): 1/4 inch phone type, USB connector: USB Type B, AC IN

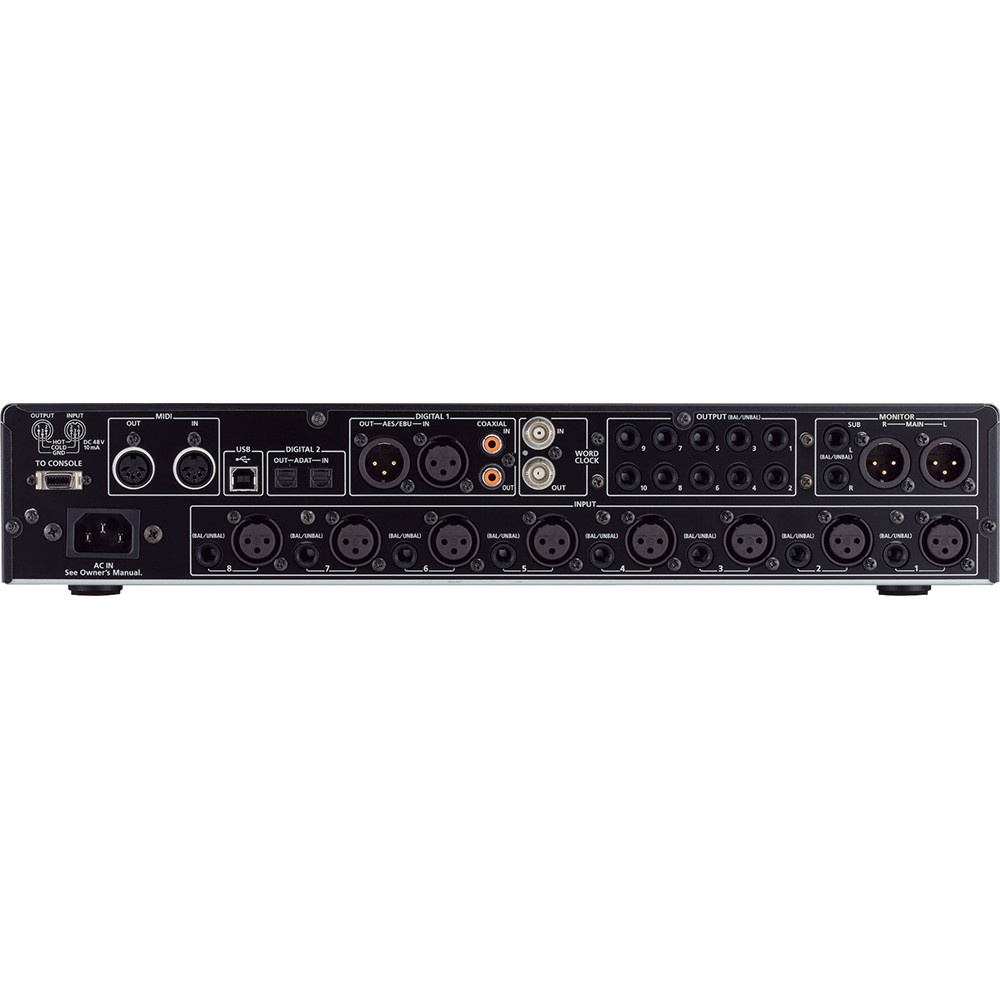

Connectors (VS-700R I/O)INPUT jacks (1-8): XLR type, 1/4 inch TRS phone type, MAIN OUT jacks (L/R): XLR type, SUB OUT jacks (L/R): 1/4 inch TRS phone type, OUTPUT jacks (1-10): 1/4 inch TRS phone type, WORD CLOCK connector (IN, OUT): BNC type, DIGITAL 1 jacks (AES/EBU IN, OUT):
Power SupplyAC 117 V, AC 230 V, AC 240 V (50/60 Hz)
Power ConsumptionVS-700C Console: 31 W (AC 117 V, AC 230 V, AC 240 V) VS-700R I/O: 33 W (AC 117 V) , 39 W (AC 230 V, AC 240 V)
AccessoriesPower Cord x 2, USB Cable, Special Cable, VS-700R Rack Mount Angle x 2, Getting Started, VS-700 Owner's Manual, SONAR 8 User's Guide, Shortcuts and Quick Keys Guide, SONAR 8 DVD-ROMs, Dimension Pro DVD-ROM, RAPTURE + SONAR V-STUDIO 700 Driver CD-ROM
OptionsPedal Switch (Roland DP-2)
SYSTEM REQUIREMENTS
Operating SystemMicrosoft®Windows Vista®, Windows Vista®x64, Windows®XP Professional
ComputerWindows compatible computer equipped with a USB 2.0 (Hi-SPEED USB) port
CPU/ClockIntel®Pentium®4 3.0GHz or higher, Core2Duo, Core2Quad recommended
Memory (RAM)2 GB or higher
Hard Disk Space30 GB or higher
Hard Disk Type7,200 RPM or higher/SATA
Graphics (resolution, color depth)Minimum: 1024 x 768 16-bit color Recommended: 1280 x 960, 24-bit color or higher
Required HardwareDVD-ROM Drive (Install), CD-R Drive (For CD writing), DVD-ROM, DVD+/-R, or DVD+/-RW Drive (Dual Layer-capable drive required for installation of SONAR 8 Producer content)
