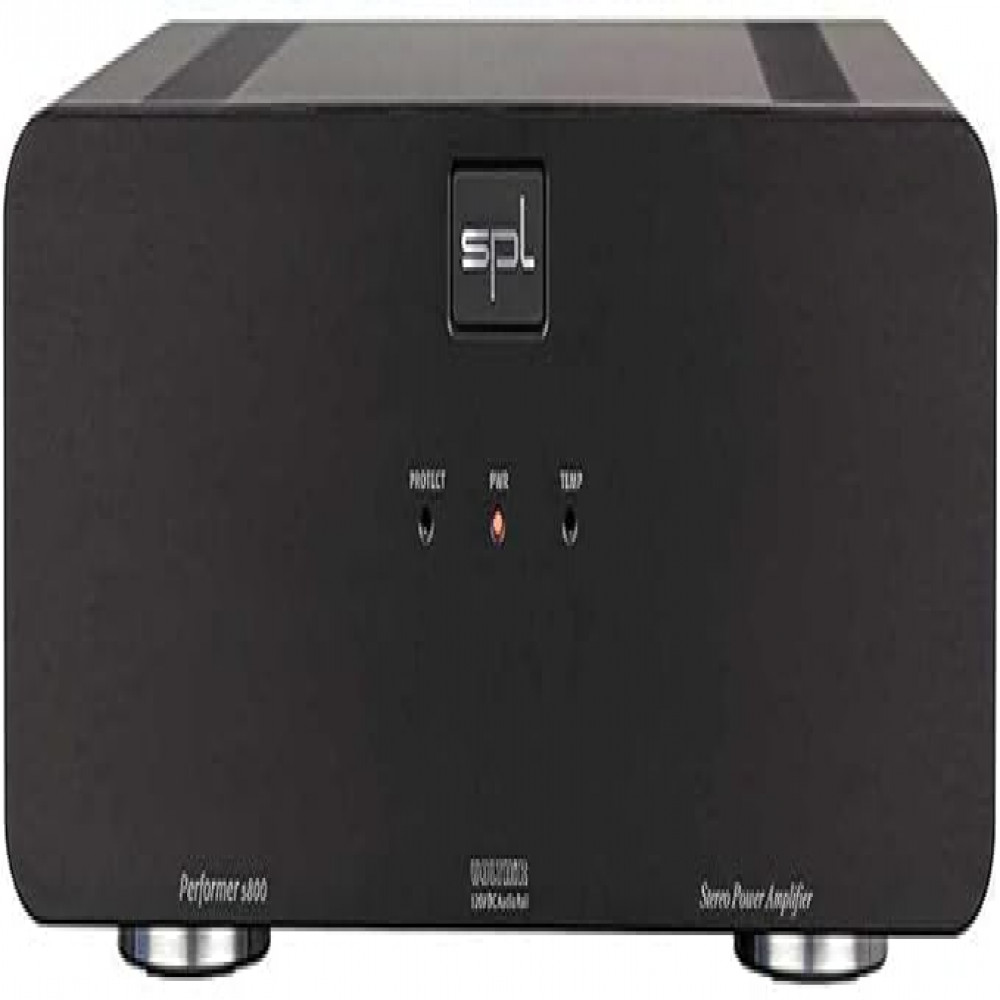

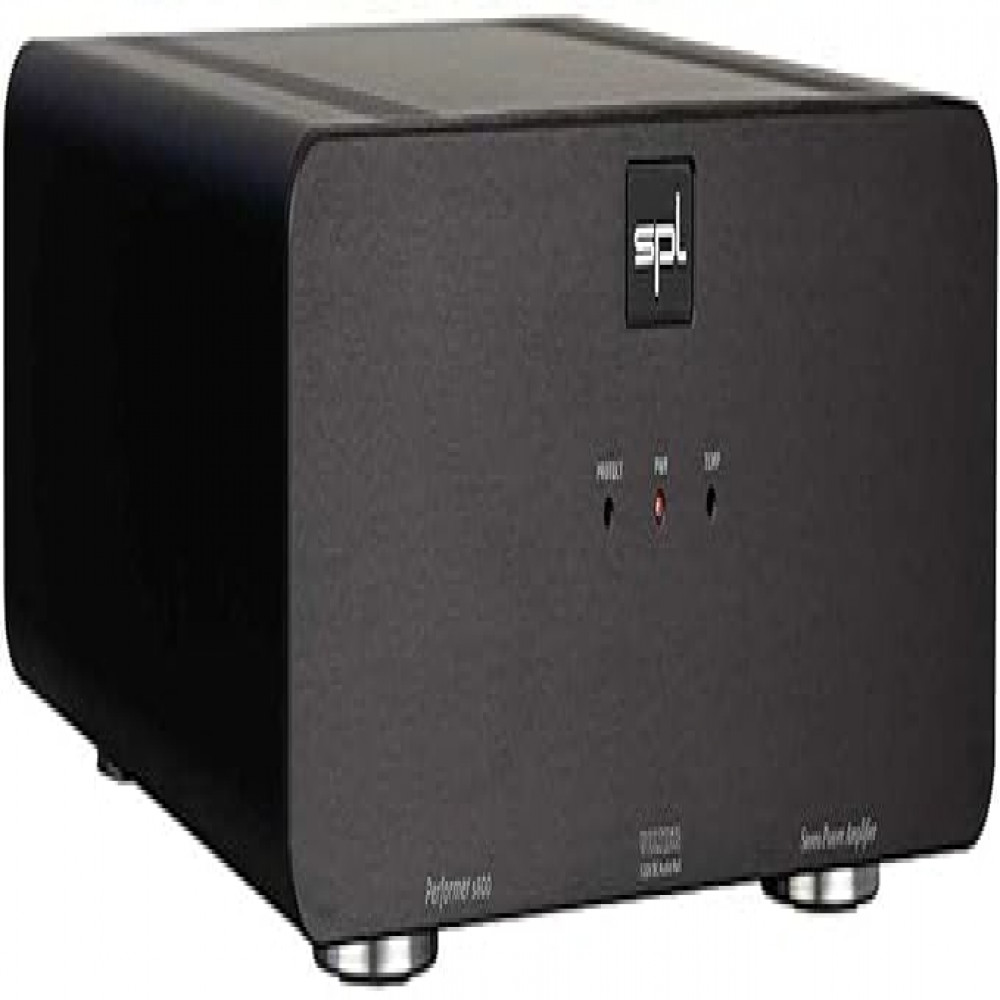

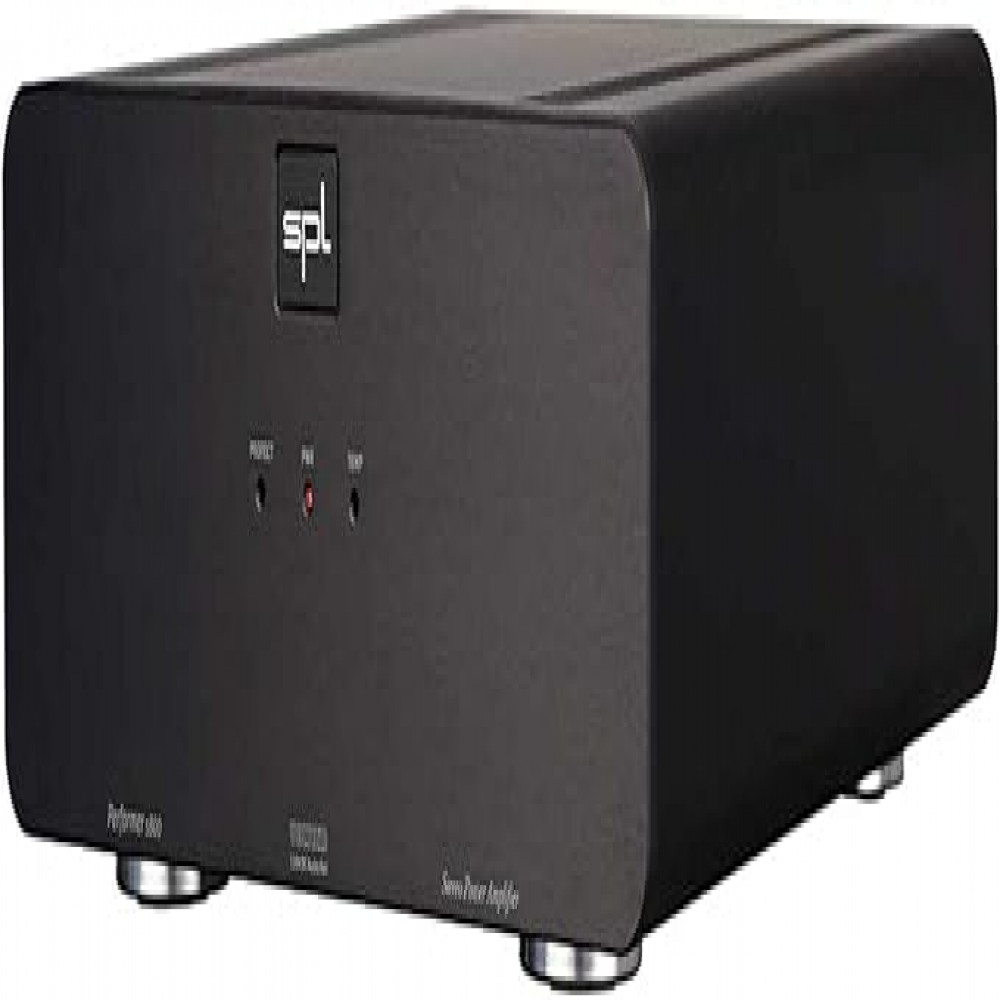

SPL Performer s800 Stereo Power Amplifier

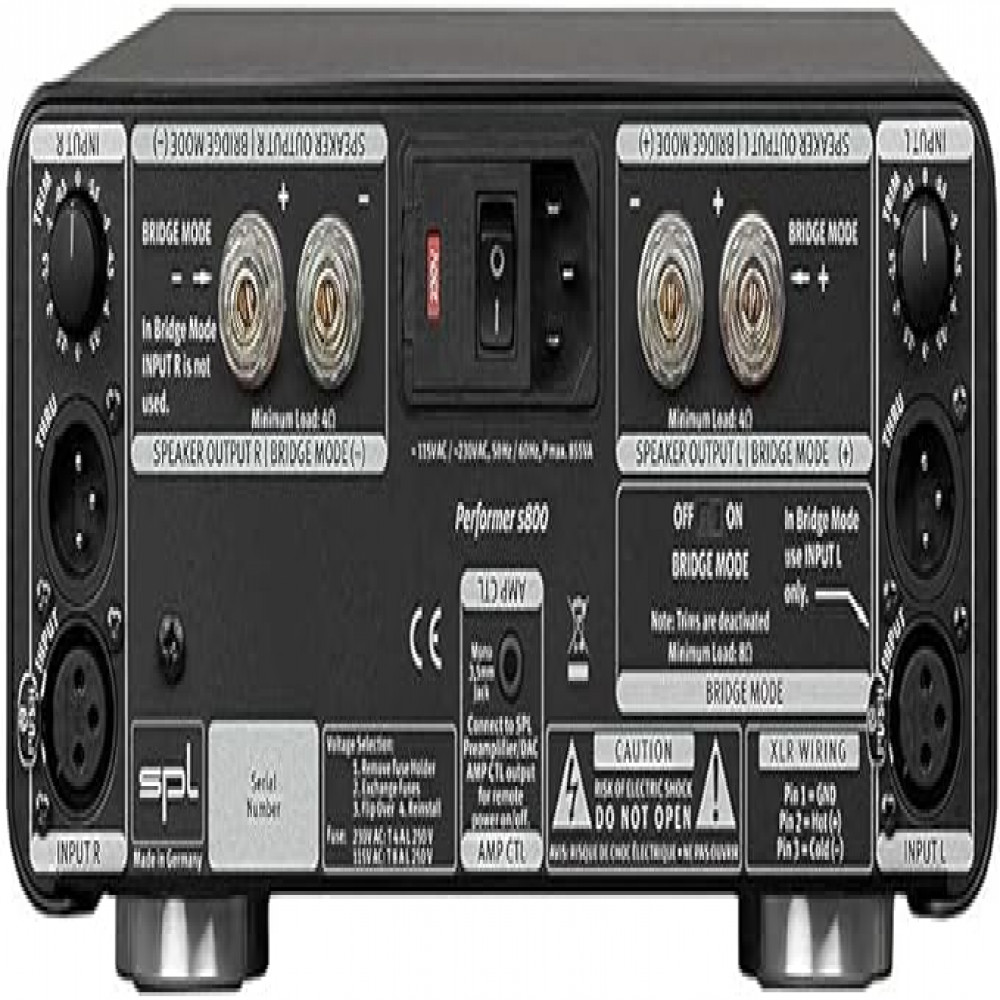

In stereo operation this bi-polar transistor power amplifier delivers up to 2x 285 W into 4 ohms speakers. In Bridge Mode it delivers 450 W into a 4 or 8 ohms speaker. The Performer s800 is equipped with slave-through outputs and input trim switches.The SPL Performer S800 Power Amplifier is equipped with a 855 VA toroidal transformer. After many listening test we are convinced that an fully analog power amplifier with a power supply built around a toroidal transformer sound superior to digital amplifiers and power amplifiers with switch mode power supplies. The power supply is equipped with a capacitance of 40800 µF for screening and electricity storage for faithful reproduction of impulse peaks.The SPL Performer S800 Power Amplifier has a protection circuit against DC (direct current) voltage at the output and against overheating. At about 70° C at the heat sink, the amplifier will switch off. After the temperature has fallen below 55° C, the amplifier automatically switches on again. The Temp LED on the front indicates the overheating.If DC is detected at the outputs, the amplifier automatically switches off. DC voltage can be an indication for a defect in the power stage. The Performer s800 does not automatically switch on again. It needs to be disconnected from the power (on/off). The Protect LED on the front indicates that the protection circuit is activated and the power stage has been switched off.The SPL Performer S800 Power Amplifier is equipped with Neutrik XLR input and output connectors for balanced operation. The input signal is passively routed to the output connector to feed e.g. a second power amplifier for bi-wiring. The input can be lowered via a Trim rotary switch from 0 dB to -5.5 dB in 0.5 dB steps. This is useful in order to a achieve an optimal stereo sweet-spot in acoustically sub-optimal rooms. In bi-wiring line-ups or in the studio with multi speaker sets it allows to level speakers with different efficiency to equal loudness.The speaker outputs are gold plated binding post connectors. The terminals can accommodate both banana plugs, as well as a strand of up to 4mm diameter. To protect against short-circuits the Binding post is equipped with a clear plastic cap.
