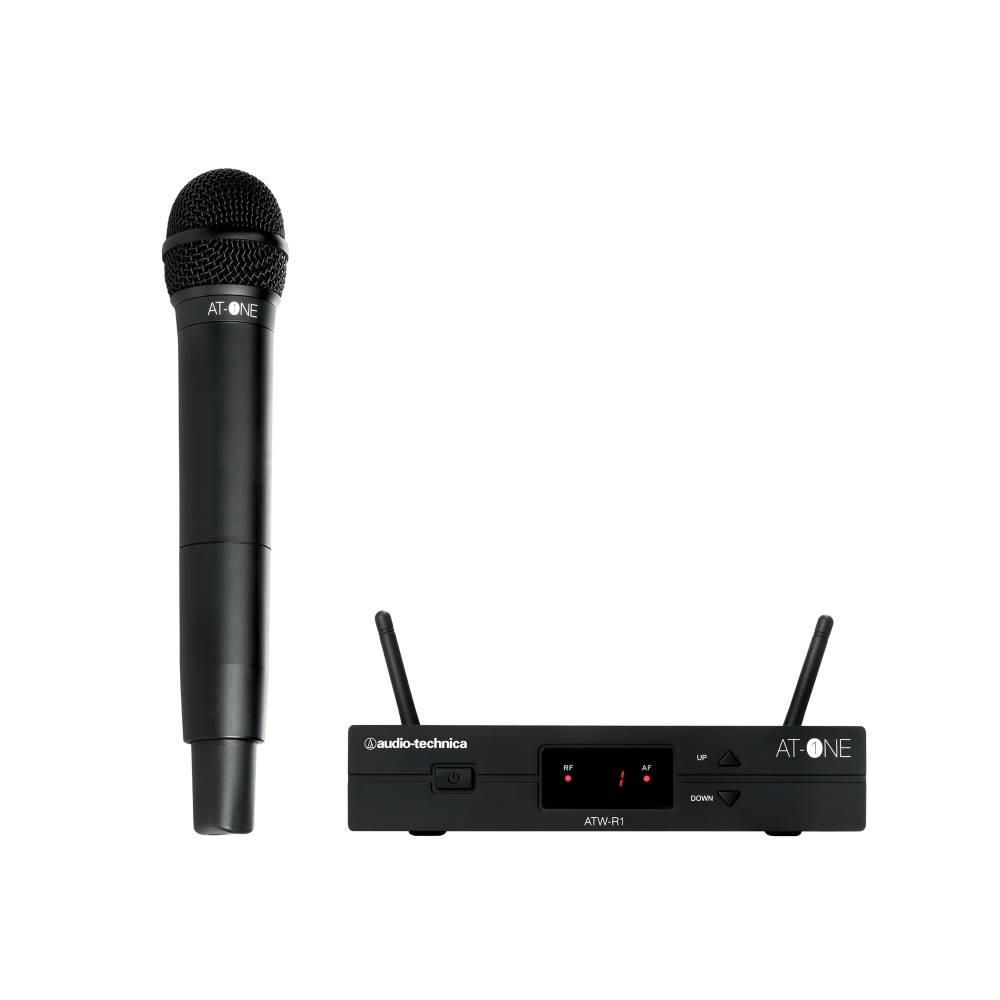

Audio Technica ATW-13F(IN) AT-One Handheld Transmitter System
Audio Technica ATW-13F(IN) AT-One Handheld Transmitter System
Audio Technica

Audio Technica ATW-13F(IN) AT-One Handheld Transmitter System

₹25,000.00

ATW-13 AT-One Handheld Transmitter System - Simple to set up and use, 2 x 4 channel frequency plan for enhanced flexibility, Rack mountable for easy installation and Intuitive receiver and transmitter controls.

in stock ready to shipIn Stock & Ready to ship
View0 views Today
Add to Cart
Add to Cart
enquireEnquire
phone
9940046621
Reasons to choose us
collectionsSecured shipping
collections24/7 expert service
collectionsGenuine products
collectionsStandard warranty

Product Description

ATW-13 AT-One Handheld Transmitter System - Simple to set up and use, 2 x 4 channel frequency plan for enhanced flexibility, Rack mountable for easy installation and Intuitive receiver and transmitter controls.
    Overall System
    Operating FrequenciesF-Band: 824 - 831 MHz, 863 - 865 MHz
    Modulation ModeFM
    Frequency Response60 Hz - 16 kHz
    Frequency Stability#ERROR!
    Operating Range60m, typical
    Number Of Channels2 x 4 frequencies
    Handheld Transmitter
    RF Power Output10 mW
    Spurious EmissionsFollowing national regulatios
    Microphone ElementCondenser Cardioid
    Battery TypeTwo 1.5V AA alkaline
    Battery Life10 hours - depending on battery type and use pattern
    Dimensions268 mm long - 52 mm (diameter)
    Accessories IncludedStand clamp
    Receiver
    Receiving SystemAntenna switching diversity
    Image Rejection55dB minimum
    Sensitivity10dBµV (S/N 60dB @ 20 kHz deviation)
    Maximum Output LevelMic / Line (0 / -20dB)
    Antenna InputBNC type, 50 - BIAS voltage 12V DC 100mA each
    Dimensions200 mm x 42 mm x 122 mm (W x H x D)
    Weight418 g without accessories
    Accessories IncludedAC Adapter, Antennas, Rack mount adapter, protective carrying case
    Audio Output Balanced4dBV
    Audio Output Unbalanced-2dBV
    Dynamic RangeHH: 108 dB, BP 103 dB (@ max deviation)
    Output Connectors (Instrument)Unbalanced: 6.3 mm mono jack
    Output Connectors (Microphone)Balanced: XLRM-type
    Total Harmonic Distortion<1% - 20 kHz deviation @ 1 kHz
