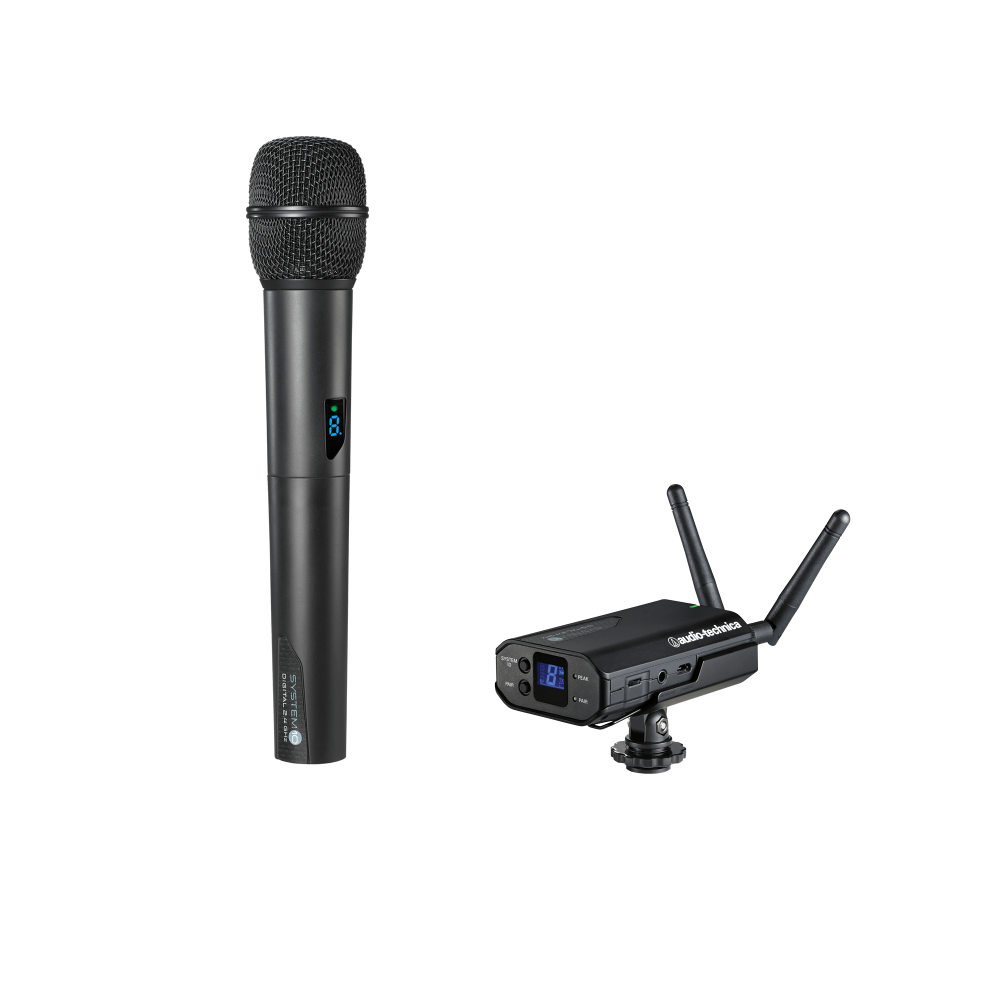

Audio Technica ATW-1702(W2) System 10 Camera-Mount Wireless Handheld Microphone System
₹53,000.00
ATW-R1700 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex‚ stand clamp.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
ATW-R1700 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex‚ stand clamp.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Overall System | |
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz Depending on microphone type |
| Operating Range | 30 m (100') radius, 60 m (200') diameter typical; Open range environment with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F); Battery performance may be reduced at very low temperatures |
| Audio Sampling | 24 bits / 48 kHz |
| Handheld Transmitter | |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA not included |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| Body Pack | |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Battery Type | Two 1.5V AA not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiver | |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D |
| Weight | 105 grams (3.7 oz) |
| Accessories Included | Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable |
| Battery Current/Life | 12 hours Depending on environmental conditions Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions Charging Temperature Range: 5° C to +35° C (41° F to 95° F) |
| Battery Type | Internal Battery: 3.7V rechargeable Li-ion battery; Battery Rating: 5.5 Wh; 1,460 mAh |
