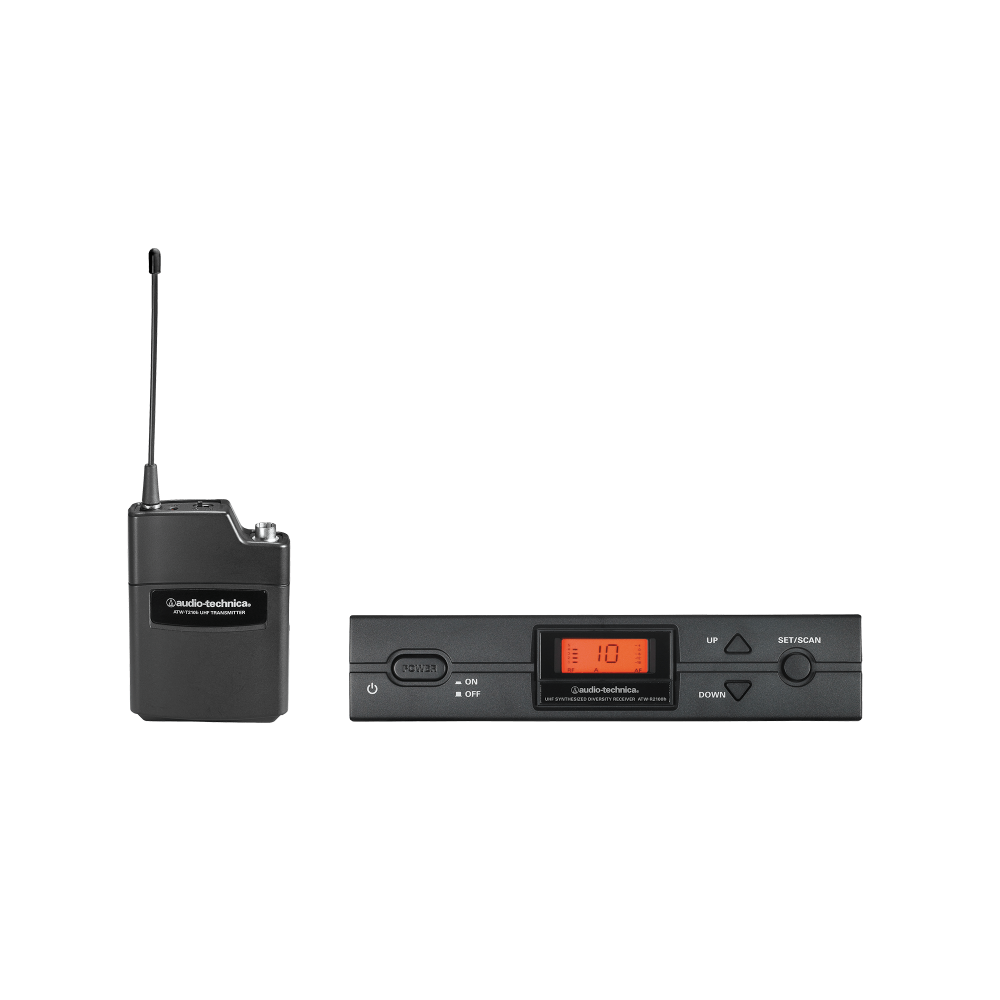

Audio Technica ATW-2110b 2000 Series Wireless Body-pack System
₹43,000.00
ATW-R2100b receiver and ATW-T210a body-pack transmitter. Select a microphone or cable with a cW-style locking 4-pin connector to complete the system.
In Stock & Ready to ship
1 views Today
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
ATW-R2100b receiver and ATW-T210a body-pack transmitter. Select a microphone or cable with a cW-style locking 4-pin connector to complete the system.
Product Specifications
| Overall System | |
| Operating Frequencies | UHF Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICA Band I : 487.125 to 506.500 MHz |
| Modulation Mode | FM |
| Maximum Deviation | ±40 kHz |
| Frequency Response | 100 Hz to 15 kHz (+1 dB, -3 dB) |
| Operating Range | ; Open range environment with no interfering signals. |
| Total Harmonic Distortion | < 1% (at 1 kHz, ±20 kHz deviation) |
| Operating Temperature Range | 5º C to 45º C; 41º F to 113º F; Battery and LCD performance may be reduced at very low temperatures. |
| Number Of Channels | 10 total |
| Handheld Transmitter | |
| RF Power Output | High: 30 mW; Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following federal and national regulations |
| Microphone Element | Dynamic cardioid |
| Battery Type | Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2 |
| Battery Life | High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern. |
| Dimensions | 232.0 mm (9.13") long, 48.0 mm (1.89") diameter |
| Net Weight | 252 g (8.9 oz), without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| Body Pack | |
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life | High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern. |
| Battery Type | Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2 |
| Dimensions | 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H |
| Input Connections | Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V |
| Net Weight | 81 g (2.9 oz), without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiver | |
| Receiving System | True diversity |
| Image Rejection | 60 dB nominal, 55 dB minimum |
| RF Sensitivity | 20 dBuV at 60 dB S/N ratio; (50 ohms termination) |
| Antenna Input | BNC-type, 50 ohms; Bias voltage 12V DC, 60 mA, each |
| Power Requirements | 12-18V DC, 500 mA |
| Dimensions | 210.0 mm (8.27") W x 162.2 mm (6.39") D x 44.0 mm (1.73") H Not including BNC connectors or feet. |
| Weight | 1.0 kg (35.3 oz), without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters ADDITIONAL RECEIVER SPECS Maximum Output Level: XLR, balanced: +9 dBV ¼" (6.3 mm), unbalanced: +4 dBV Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB |
