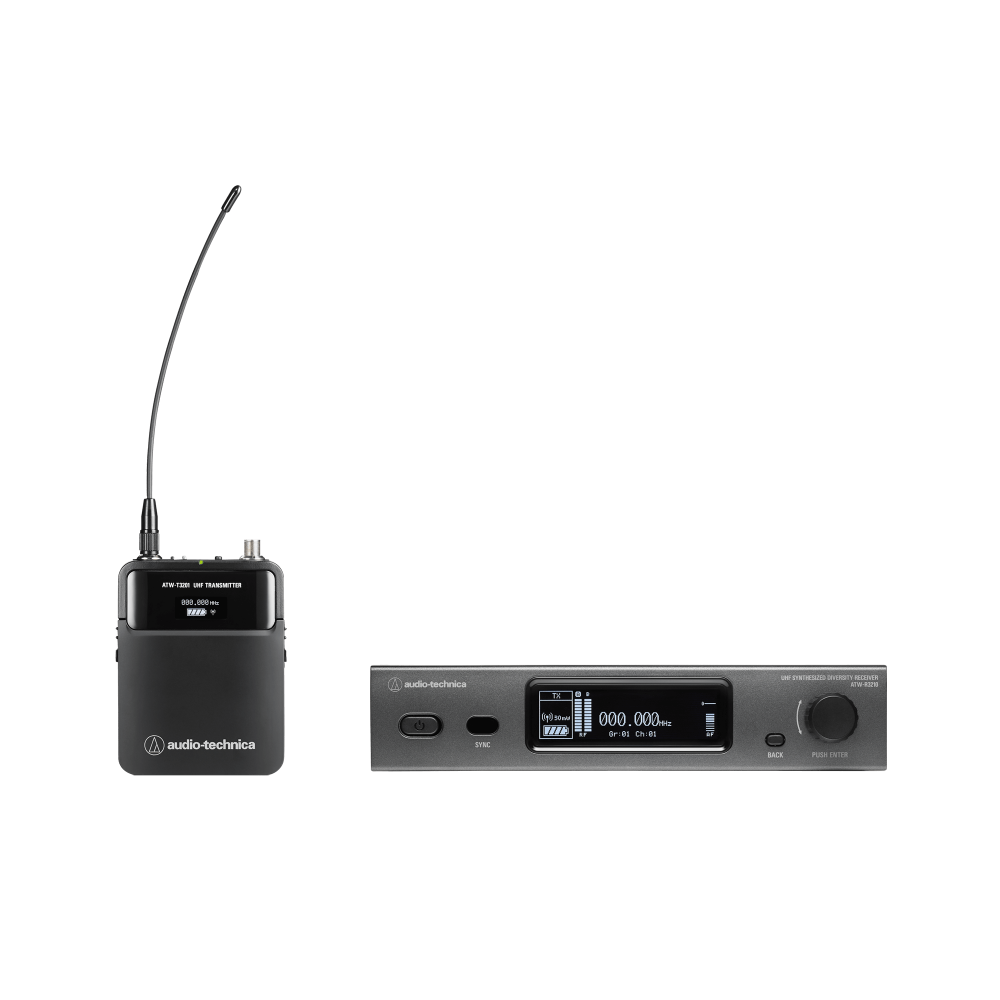

Audio Technica ATW-3211 3000 Series Wireless Body-pack System
₹62,000.00
ATW-R3210 receiver and ATW-T3201 body-pack transmitter with cH-style screw-down 4-pin connector. Select a microphone or cable with a cH-style screw-down 4-pin connector to complete the system.
In Stock & Ready to ship
0 views Today
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
ATW-R3210 receiver and ATW-T3201 body-pack transmitter with cH-style screw-down 4-pin connector. Select a microphone or cable with a cH-style screw-down 4-pin connector to complete the system. Available separately, the AT-cWcH Adapter Cable enables wireless microphones with a cW-style locking 4-pin connector to be used with body-pack transmitters that have a cH-style screw-down 4-pin connector.
Product Specifications
| Overall System | |
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) |
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Maximum Deviation | ATW-T3201: ±38 kHz (THD:10%); ATW-T3202: ±36 kHz (THD:10%) |
| Frequency Response | ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element |
| Operating Range | 100 m (328') Open range environment with no interfering signals. |
| Total Harmonic Distortion | <1.0% (at 1 kHz, ±17.5 kHz deviation) |
| Operating Temperature Range | -5° C to +45° C (23° F to 113° F) |
| Simultaneous Use | 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
| Handheld Transmitter | |
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following Federal and National Regulations |
| Microphone Capsule | Interchangable industry standard thread |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Dimensions | ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter |
| Net Weight | ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries |
| Body Pack | |
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H) |
| Input Connections | cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| Net Weight | 102 g (3.6 oz), without batteries |
| Spurious Emissions | Following Federal and National Regulations |
| High-pass (low-freq. roll-off) | 125Hz, 12dB/octave |
| Receiver | |
| Receiving System | True Diversity |
| Image Rejection | 60 dB nominal |
| RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 ohms termination) |
| Maximum Output Level | XLR, balanced: +14 dBV; 6.3 mm (1/4"), unbalanced: +8 dBV |
| Antenna Input | BNC-type, 50 ohms |
| Antenna Power | 12 V DC, 160 mA (combined) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H) |
| Weight | 1100 g (38.8 oz), without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters |
