Audio Technica

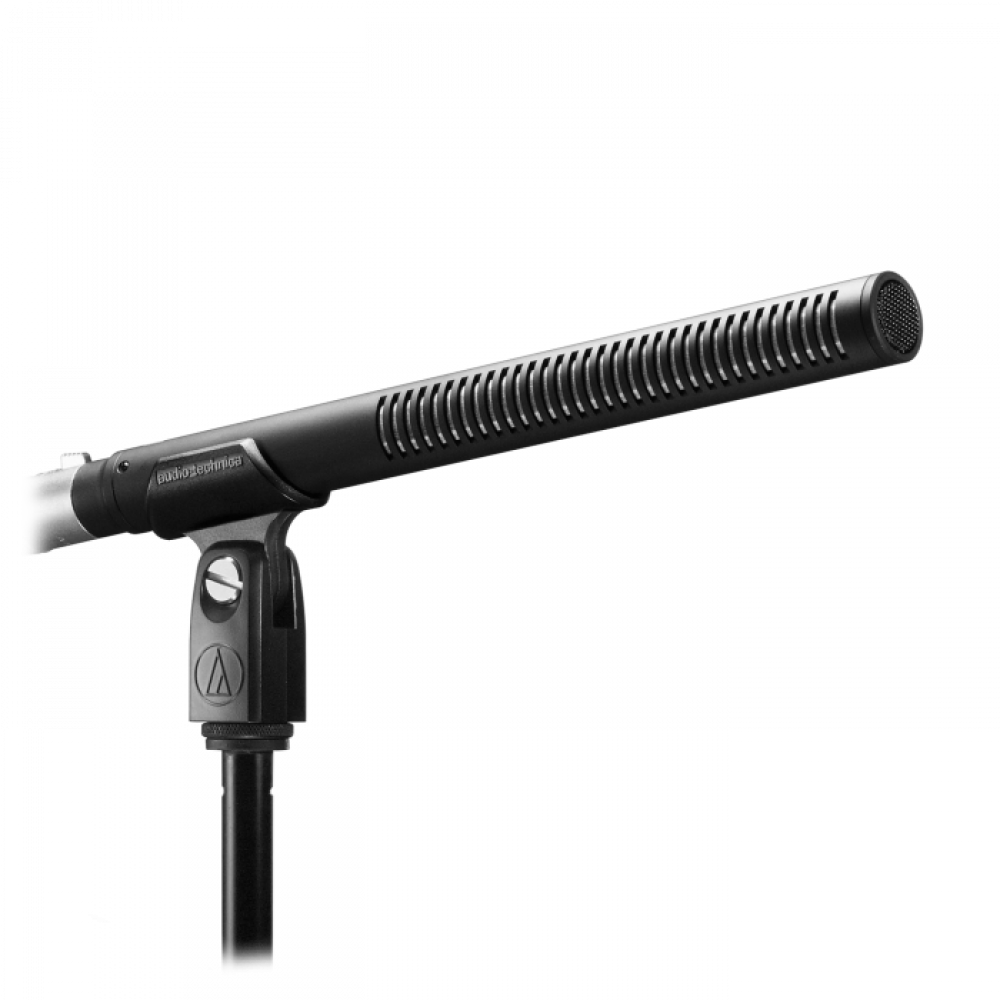

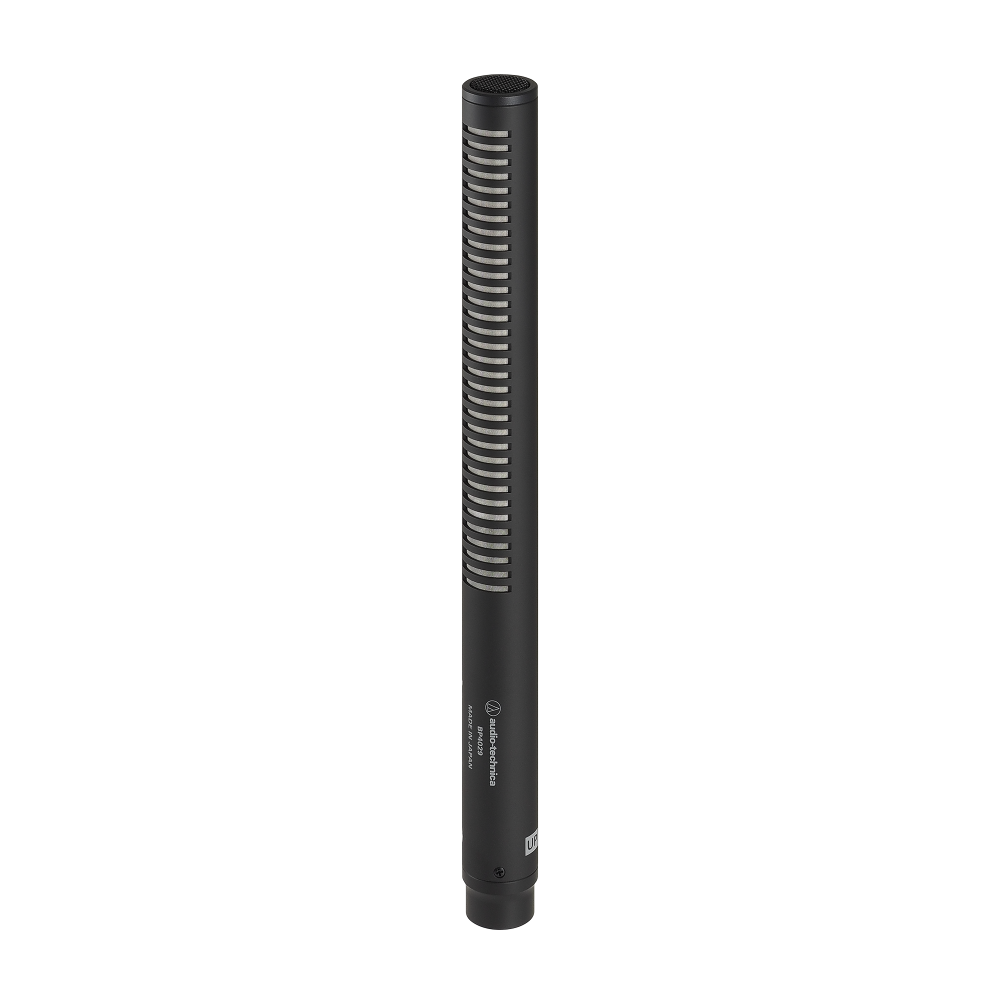

Audio Technica BP4029 Stereo Shotgun Microphone

93,500.00

Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 (14.96" long) and BP4029 (9.29" long) Stereo Shotgun models are engineered for high-end broadcast and production use.

in stock ready to shipIn Stock & Ready to ship
View0 views Today
enquireEnquire
phone
9940046621
true in-store experience

A True In-store Experience

Get expert advice on choosing the right instrument.

Talk to our product expert at
9940046621
9940046621
Reasons to choose us
collectionsSecured shipping
collections24/7 expert service
collectionsGenuine products
collectionsStandard warranty

Product Description

Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 (14.96" long) and BP4029 (9.29" long) Stereo Shotgun models are engineered for high-end broadcast and production use. Both microphones feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. These innovative microphones allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone’s internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer. A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use.
  • Designed for broadcasters, videographers and sound recordists.
  • Compact, lightweight design is perfect for camera-mount use.
  • Independent Line-cardioid and Figure-of-eight condenser elements.
  • Switchable low-frequency roll-off.
  • Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes.

overstockWant to sell yours?

List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price

Features
ElementFixed-charge back plate, permanently polarized condenser
Polar PatternLine-cardioid, Figure-of-eight
Frequency Response40-20,000 Hz
Low Frequency Roll Off80 Hz, 12 dB/octave
Open Circuit SensitivityMid: -30 dB (31.6 mV) re 1V at 1 Pa;; Side: -34 dB (19.9 mV) re 1V at 1 Pa;; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa
Maximum Input Sound LevelMid: 123 dB SPL, 1 kHz at 1% T.H.D.;; Side: 127 dB SPL, 1 kHz at 1% T.H.D.;; LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.
Dynamic RangeMid: 101 dB, 1 kHz at Max SPL; Side: 101 dB, 1 kHz at Max SPL;; LR Stereo: 102 dB, 1 kHz at Max SPL
Signal-to-Noise RatioMid: 72 dB SPL, 1 kHz at 1 Pa; Side: 68 dB SPL, 1 kHz at 1 Pa;; LR Stereo: 70 dB SPL, 1 kHz at 1 Pa
Phantom Power Requirements11-52V DC, 4 mA typical at 48V, each channel
SwitchesM-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off
Weight103 g (3.6 oz)

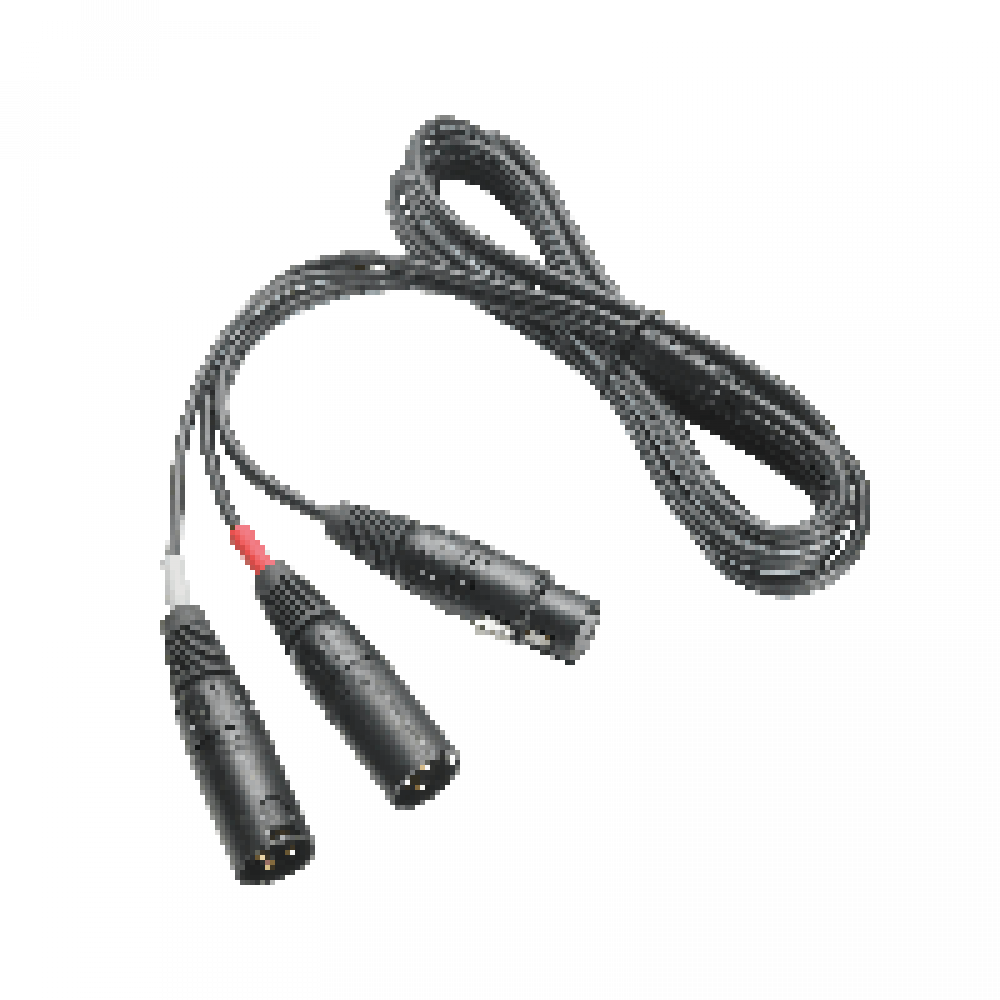

CableDual 0.61 m (24") shielded two-conductor, terminated in two XLR3M-type connectors
Dimensions236.0 mm (9.29") long, 21.0 mm (0.83") diameter
Output ConnectorIntegral XLR5M-type

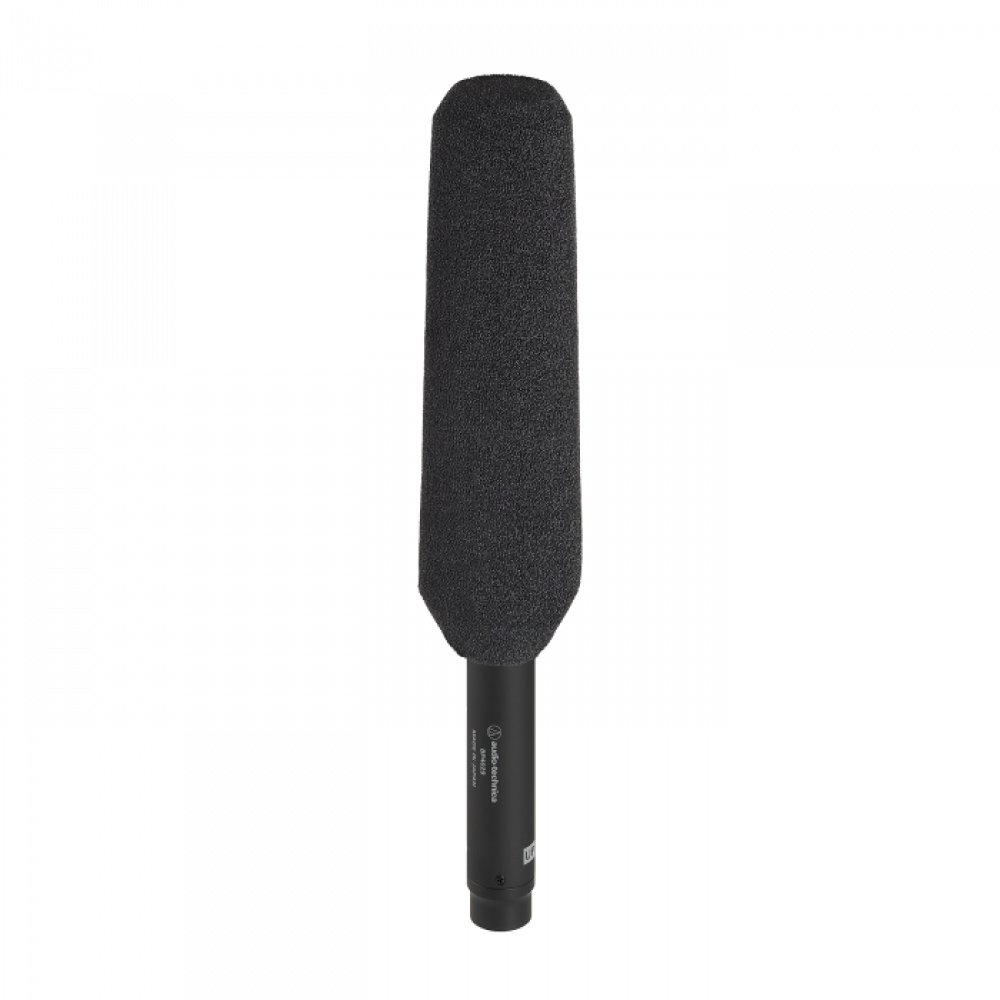

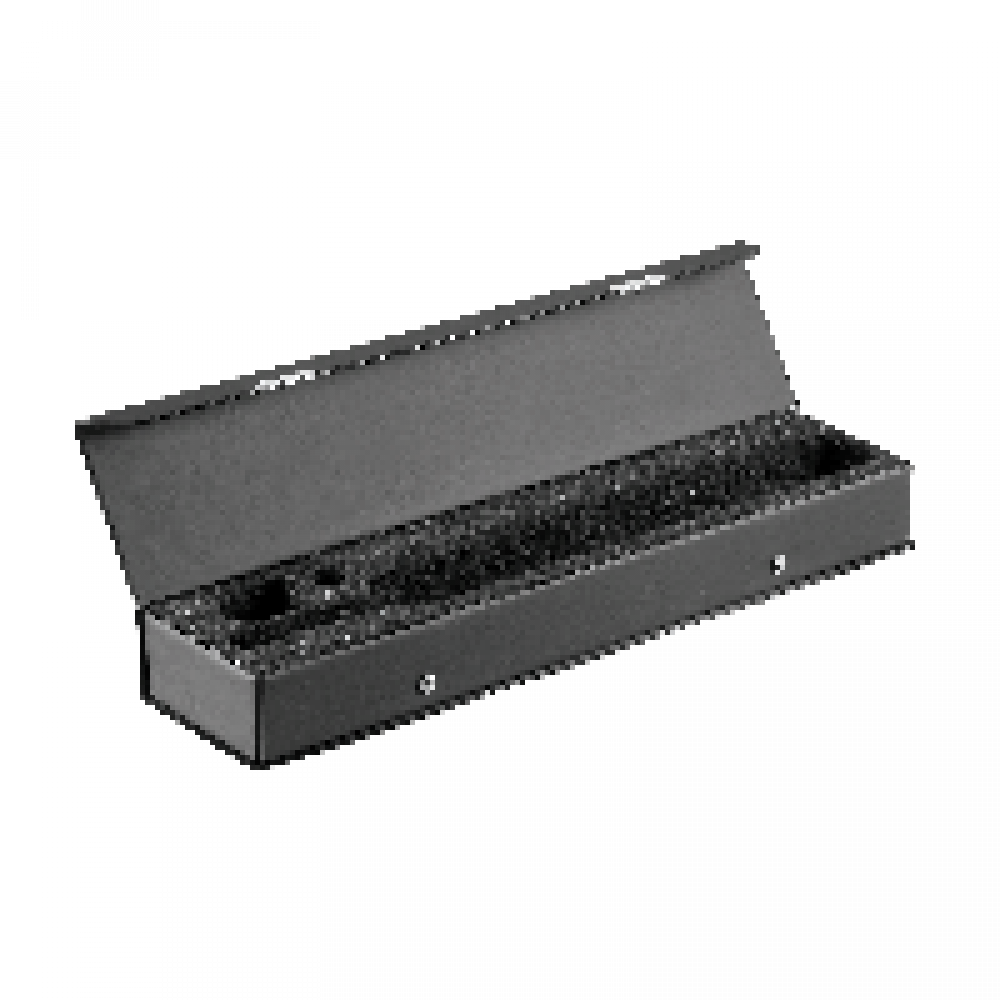

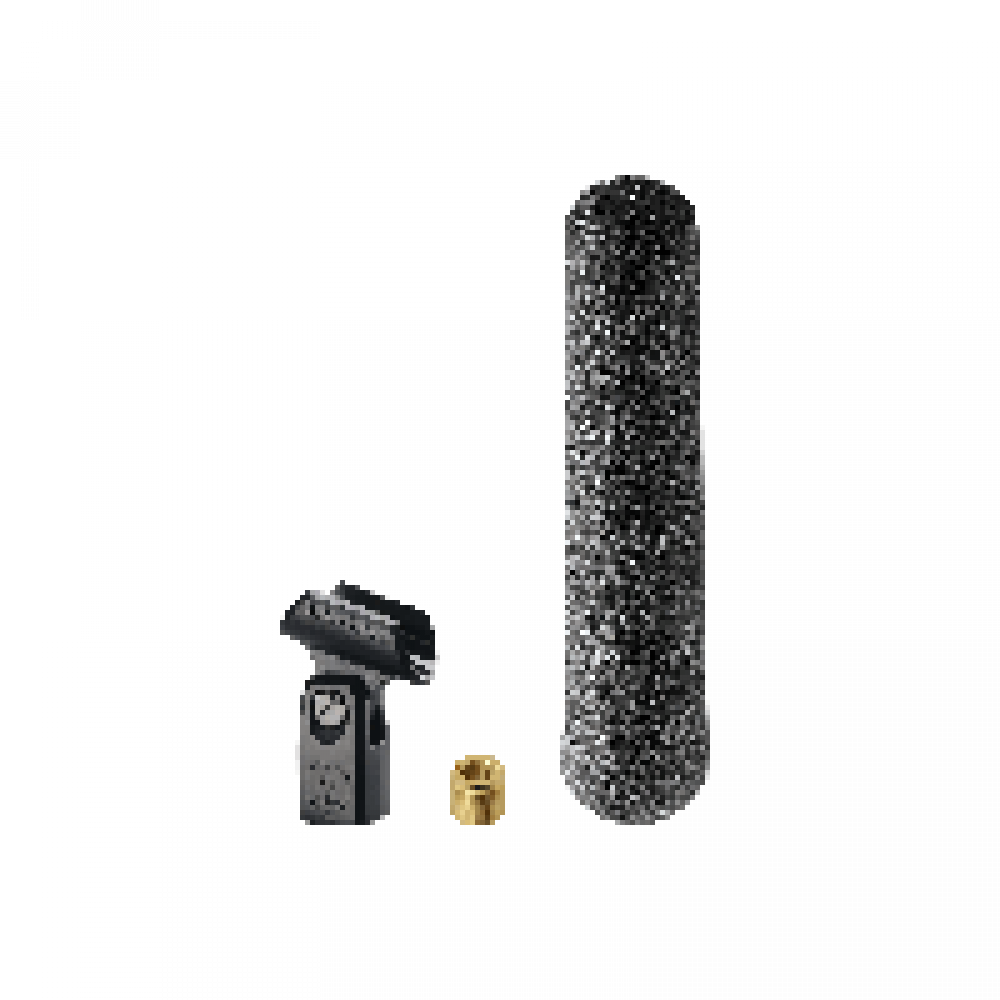

Accessories IncludedAT8405a stand clamp for 5/8"-27 threaded stands; AT8134 foam windscreen; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case
