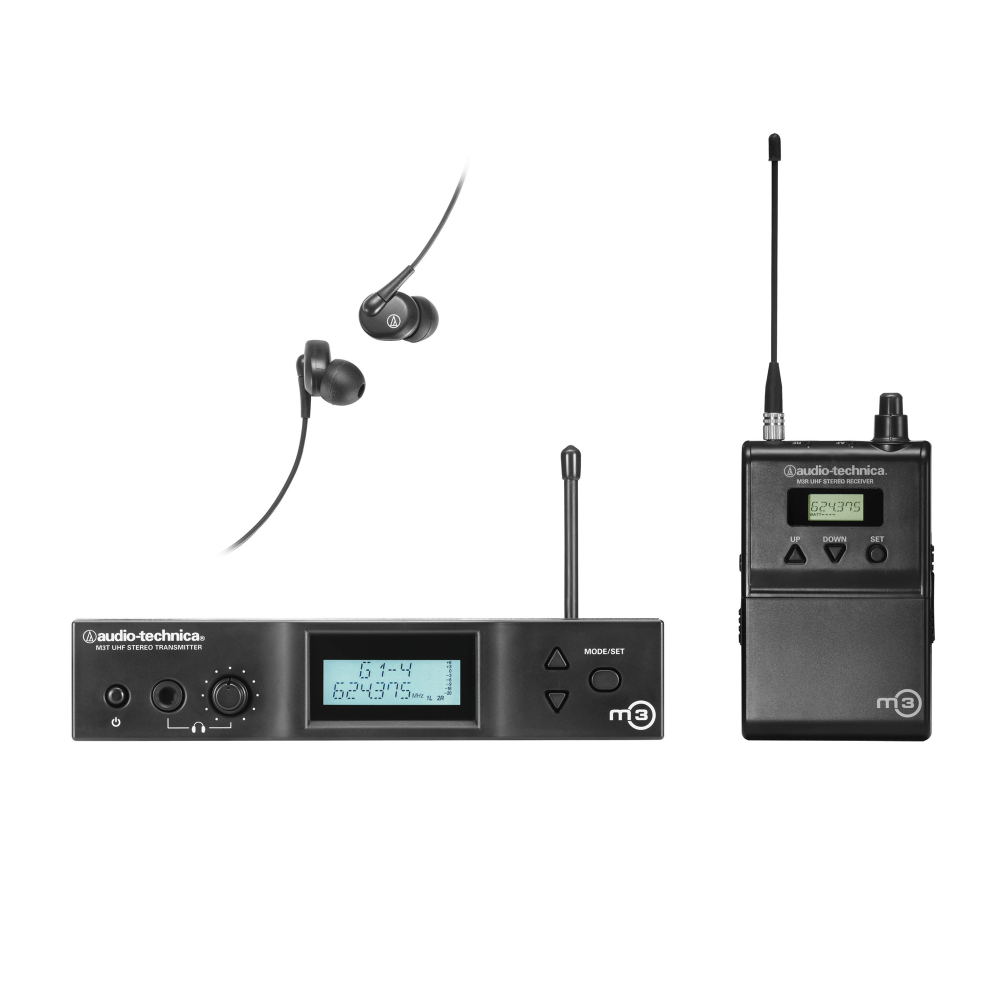

Audio Technica M3 M Wireless In-Ear Monitor System
₹73,000.00
Audio-Technica’s advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
Audio-Technica’s advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences. The stereo monitor system is equipped with Audio-Technica’s versatile Personal Mix Control, which allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T Stereo Transmitter is equipped with two XLR/¼” combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.
- High-fidelity sound with clean, articulate mix allows performers to hear themselves clearly at lower volume.
- 1321 selectable UHF channels with automatic frequency scanning.
- Up to 16 simultaneous systems per frequency band.
- Three receiver modes: Personal Mix, stereo, and mono.
- Personal Mix Control allows volume and mix control of two independent signals at the receiver.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Overall System | |
| Operating Frequencies | Band L: 575.000 to 608.000 MHz, 1321 frequencies; Band M: 614.000 to 647.000 MHz, 1321 frequencies; Bande H1: 754.000 to 787.000 MHz, 1321 (nombre de fréquences)(Not all frequency bands available in all areas. Pl |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM stereo |
| Maximum Deviation | ±40 kHz |
| Frequency Response | 60 Hz to 13 kHz (+/- 3 dB) |
| Operating Range | 100 m (300'), typical (Open range environment with no interfering signals.) |
| Dynamic Range | 90 dB (typical), A-weighted |
| Total Harmonic Distortion | <1% at (1 kHz, ±20 kHz Deviation) |
| Operating Temperature Range | (-)5° C (23° F) to +50° C (122° F) (Battery performance may be reduced at very low temperatures.) |
| Simultaneous Use | 16 channels per band (maximum recommended) |
| Receiver | |
| Receiving System | Double conversion superheterodyne |
| Sensitivity | 20 dBuV (at 60 dB S/N ratio, 50 ohms termination) |
| Headphone Output | 3.5 mm TRS stereo phone jack, 65 mW (at 32 ohms) |
| Antenna Input | SMA-type, 50 ohms |
| Dimensions | 70.0 mm (2.76") W x 25.0 mm (0.98") D x 110.0 mm (4.33") H |
| Weight | 133g, without batteries |
| Accessories Included | EP3 earphone; flexible antenna |
| Battery Current/Life | 8 hours (alkaline) Depending on battery type and use pattern |
| Battery Type | 2 x 1.5V AA (not included) |
| Transmitter | |
| Accessories Included | AC adapter (country dependant); rack mount adapters; flexible antenna |
| Antenna Connector | BNC, 50 ohms |
| Dimensions | 210.0 mm (8.30") W x 132.0 mm (5.20") D x 44.0 mm (1.70") H |
| Headphone Output Connector | 6.3 mm (1/4") TRS stereo phone jack |
| Headphone Output Power | 120 mW at 32 ohms |
| Loop Output Connection | XLRM-type connector Pin 1: Ground Pin 2: Hot Pin 3: Cold |
| Input Connection | XLRF-type/6.3 mm stereo (1/4") combination connector Pin 1 and Sleeve: Ground Pin 2 and Tip: Hot Pin 3 and Ring: Cold |
| Maximum Input Level | XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu 6.3 mm (1/4") mono, unbalanced: +26 dBu |
| Net Weight | 930g, without accessories |
| Power Output | 10 mW/50 mW (switchable), 50 ohms Limited to 10 mW within 863 MHz to 865 MHz Following national regulations |
| Power Requirement | 12-18V DC, 600 mA |
| Spurious Emissions | Following national regulations |
