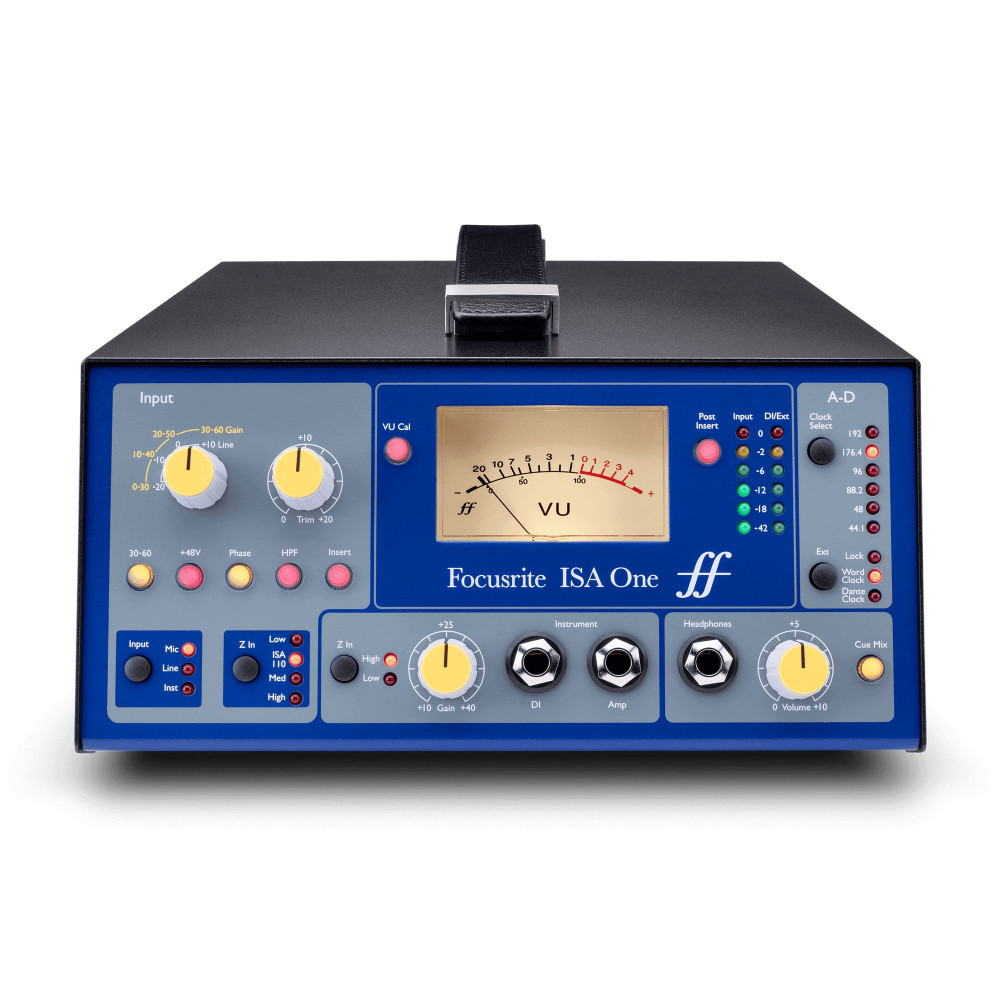

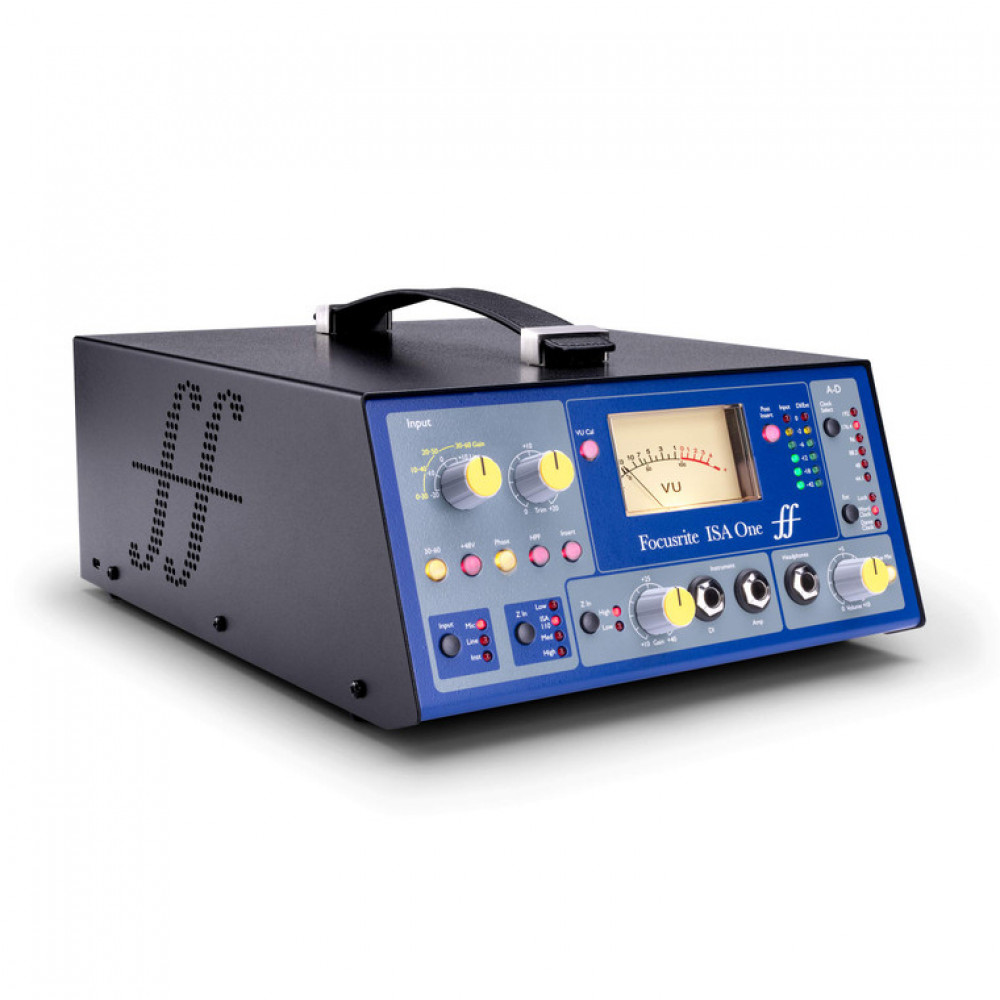

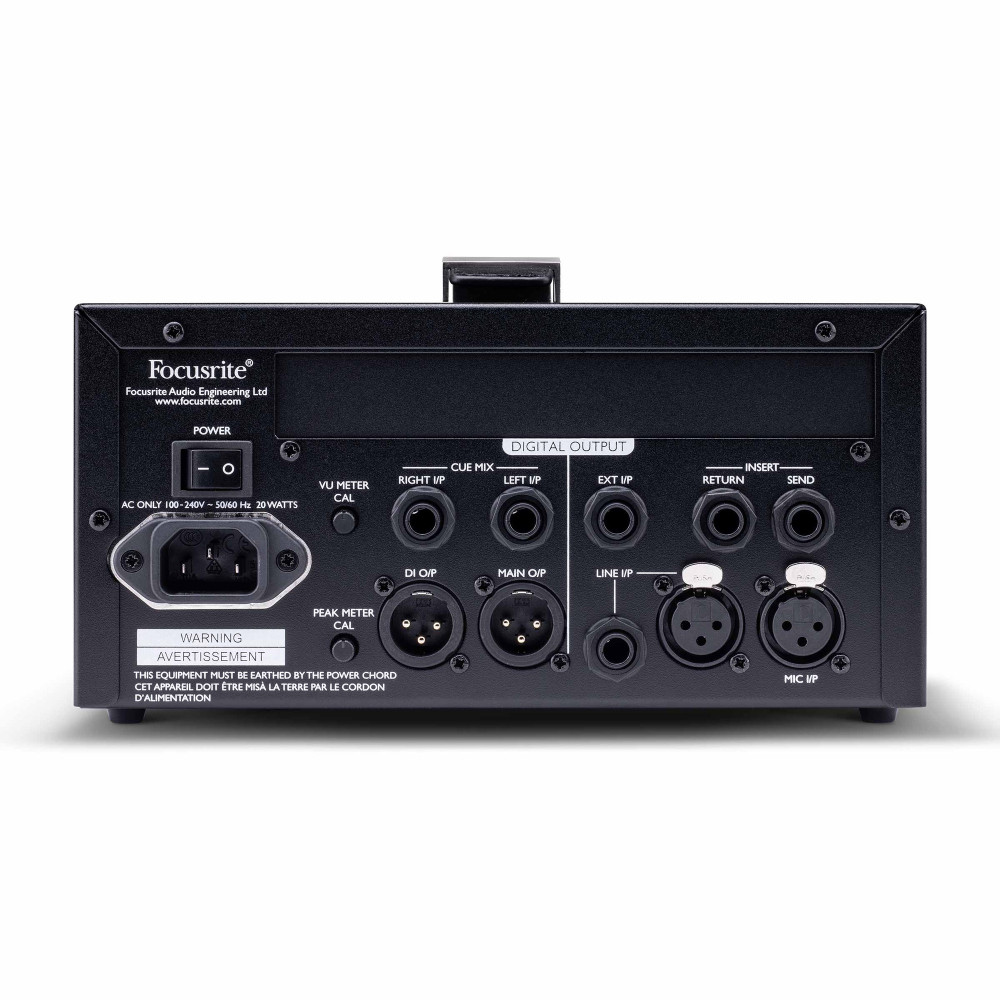

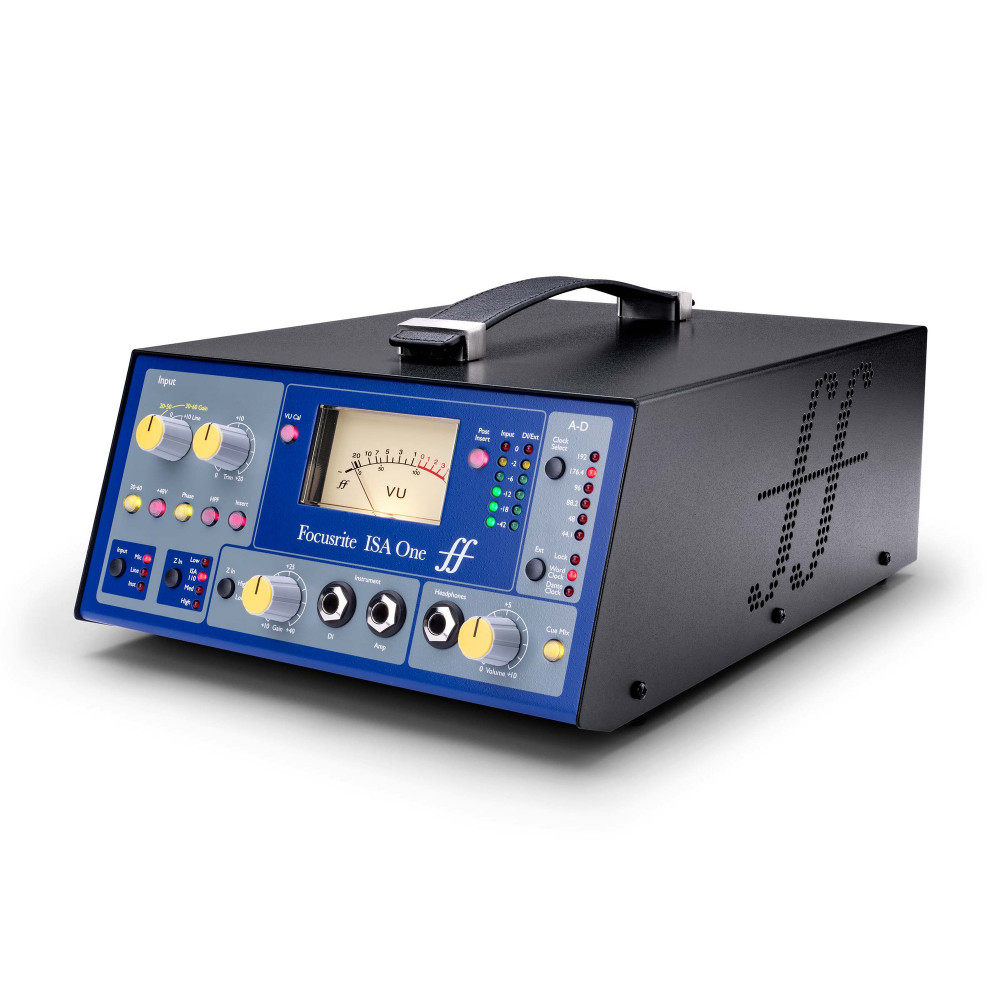

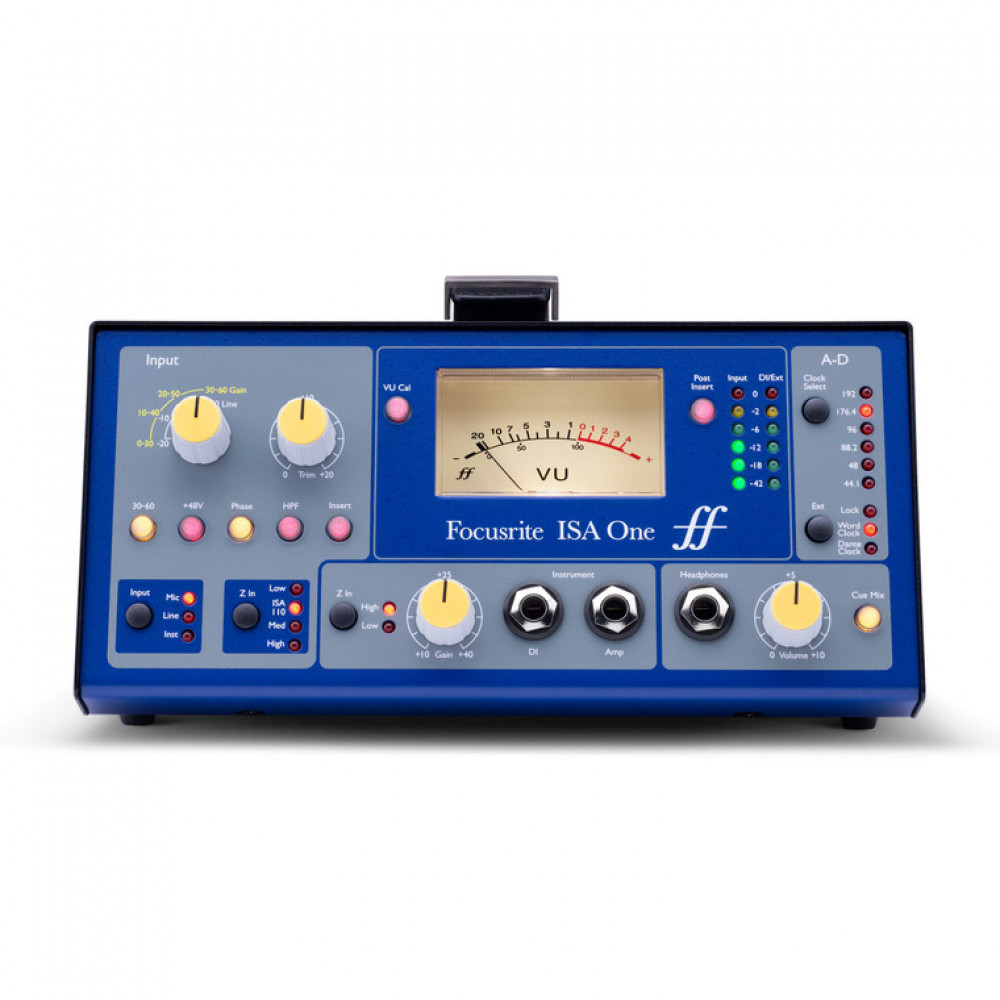

Focusrite ISA One - Analogue Microphone Preamplifier
₹82,181.00
At the heart of the ISA range is the microphone preamplifier with its Lundahl input transformer — essentially the same circuit, based on the original ISA110, that has been used for 30 years in successive Focusrite designs.
In Stock & Ready to ship
0 views Today
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warranty
Experience In-Store Like Buying Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Product Description
The input transformer imparts a special character to the sound that can't be truly emulated in any other way: inseparable from the microphone itself, the transformer input stage is ideal for use with classic microphones. But this mic pre has a twist the original didn't have, which makes it far more versatile: four carefully-selected impedances allow you to match microphone to input in different ways. Bring out the character of a classic mic or emphasise a special feature, or go for a totally transparent, modern sound — it's up to you.Whether you're an artist, engineer or producer, you'll appreciate the versatility of the ISA One, with its front-panel DI input. The DI includes low/high impedance switching and an amplifier output, and its own feed to the optional A/D converter and separate rear-panel XLR output.
- ISA series transformer-based preamplifier.
- Flexible independent DI channel.
- Switchable impedance.
- Optional stereo 192kHz A-D converterLundahl LL1538 Input Transformer.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Mic input response | |
| Gain Range (Mic) | 0dB to 60dB in 10dB steps 20 dB of variable gain |
| EIN (Mic) | -126dB measured at 60dB of gain with 150 Ohm terminating impedance and 22Hz/22kHz band-pass filter |
| Noise (Mic) | Noise at output with unity gain (0 dB) and 22 Hz-22 kHz band pass filter-97 dBu |
| Signal To Noise Ratio (Mic) | 106 dB relative to max headroom (9dBu) |
| Frequency Response (Mic) | At minimum gain (0 dB)-0.5dB down at 10Hz and -3dB down at 125kHz |
| CMRR (Mic) | 98dB (Channel 1, 1kHz, maximum gain with 24 dBu input) |
| Crosstalk Channel To Channel (Mic) | With 10dB@1kHz input to chA, chB output =104dBrA. With 10dB@10kHz input to chA, chB output = 84dBrA |
| Line input response | |
| Gain Range (Line) | -20dB to 10dB in 10dB steps 20 dB of variable gain |
| Input Impedance (Line) | 10 kO from 10 Hz to 200 kHz |
| Total Harmonic Distortion Noise (Line) | Measured with a 0 dBu input signal, and a 22 Hz-22 kHz band pass filter0.0001 |
| Frequency Response (Line) | At unity gain (0 dB)-0.3dB down at 10Hz and -3dB down at 200kHz |
| Instrument input response | |
| Gain Range (Instrument) | 10dB to 40dB continuously variable |
| Input Impedance (Instrument) | High = greater than 1M Low =greater than 300k |
| THD (Instrument) | At minimum gain ( 10) |
| High-pass filter | |
| Roll Off | 18 dB per octave (3 pole filter) |
| Frequency | Fixed 75Hz measured at the 3dB down point |
