Focusrite RedNet AM2 Headphone Amplifier and Line Output Interface
₹41,945.00
Stereo Dante headphone amplifier and line output interface with PoE RedNet AM2 is a compact Dante-compatible stereo monitoring unit combining headphone and balanced line outputs for monitoring of signals from the Dante network wherever required.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description

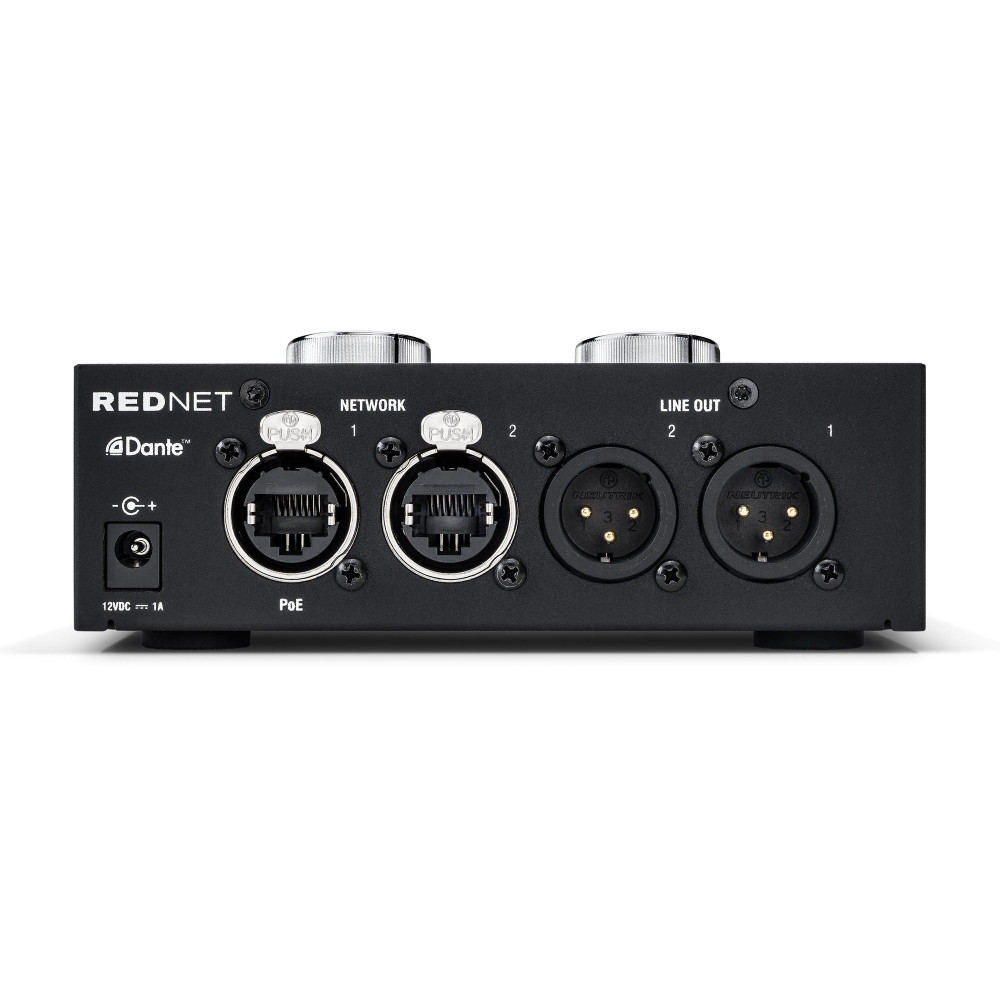

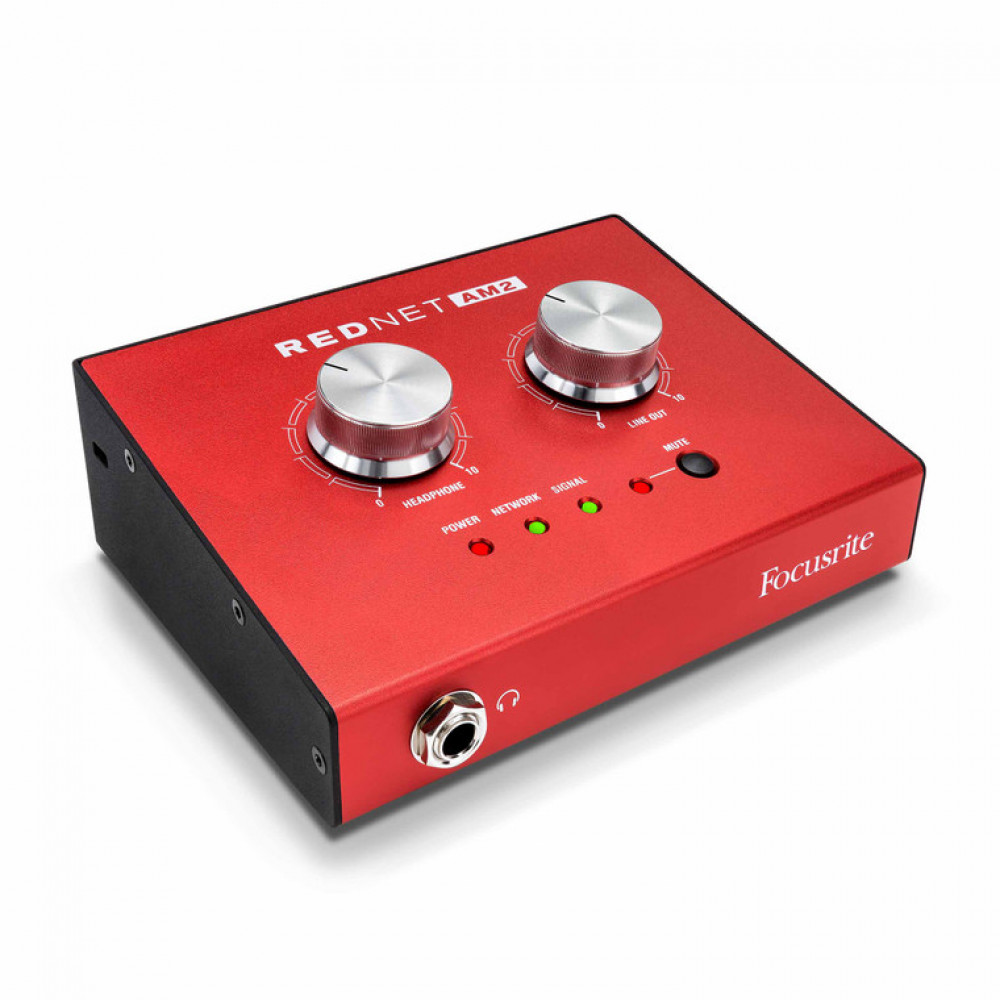

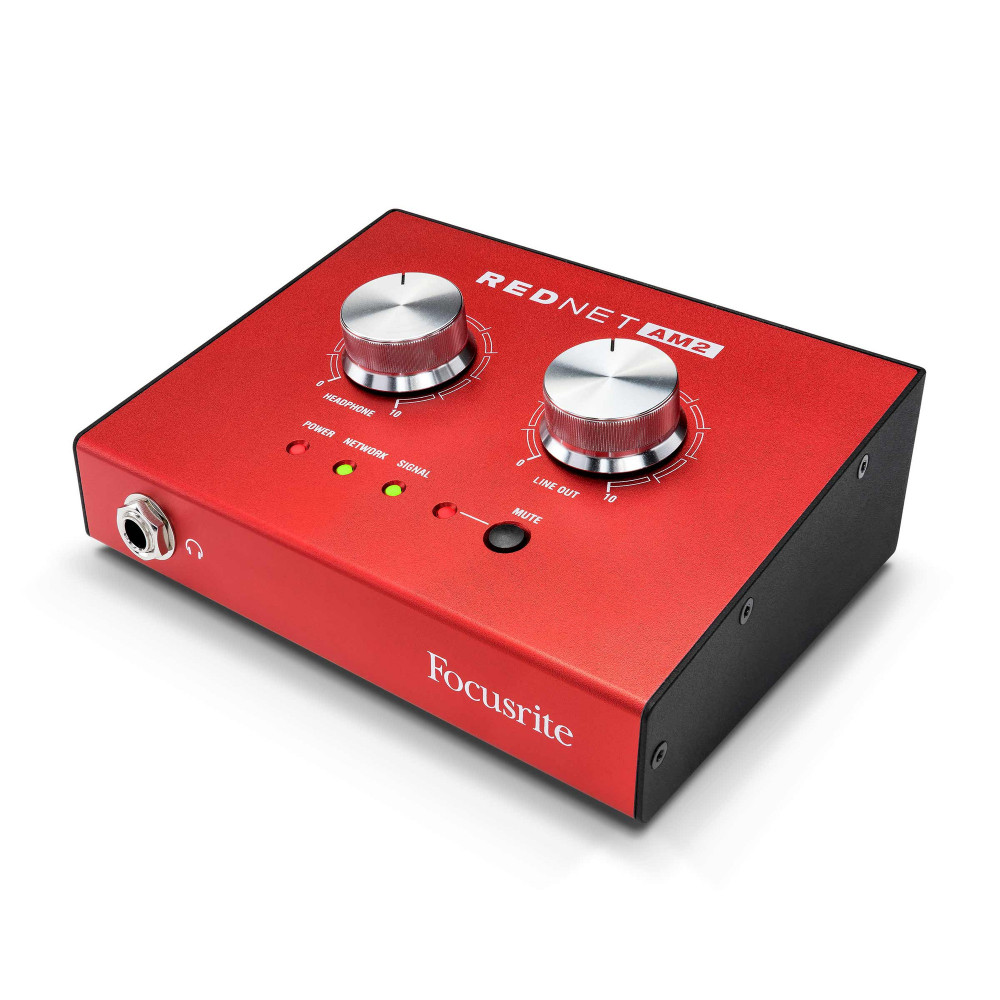

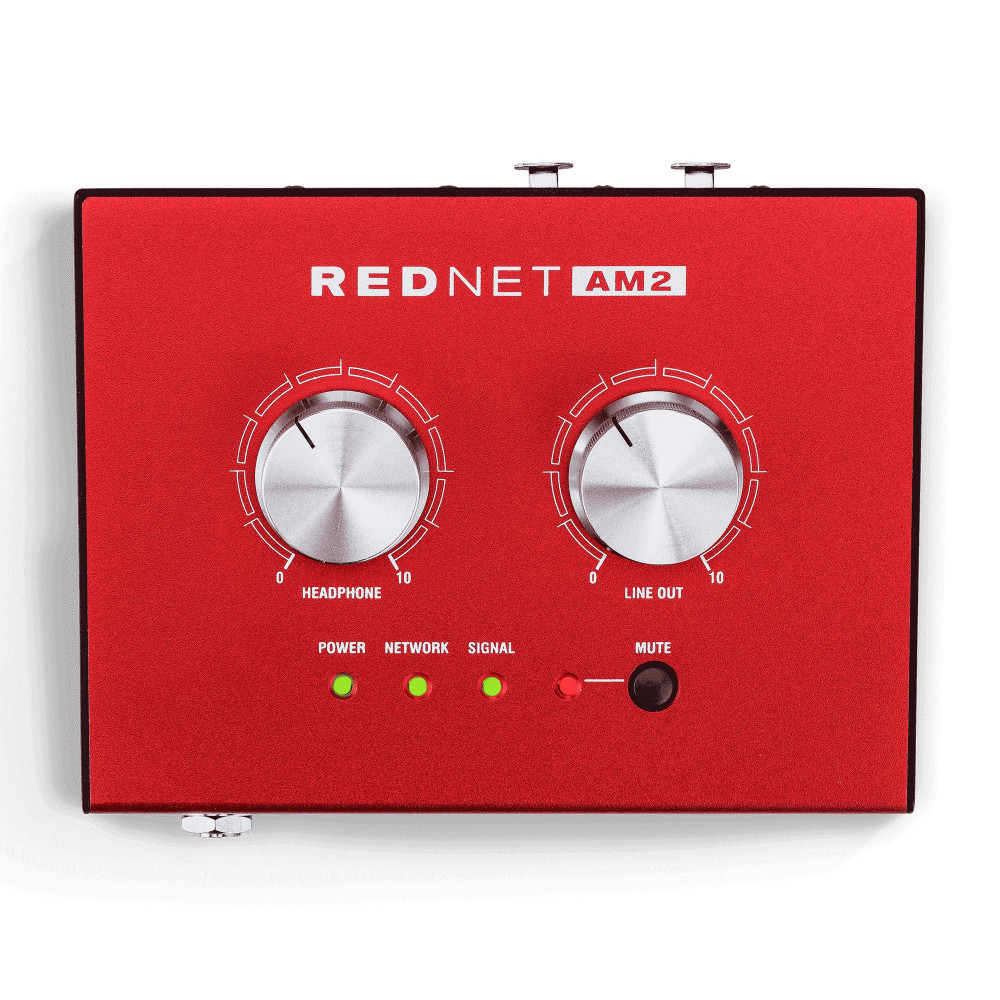

RedNet AM2 features a ¼" front-panel TRS headphone socket plus a pair of rear-mounted balanced line outputs with male XLR connectors for loudspeaker monitoring and other applications. RedNet AM2 can be powered via Power over Ethernet (PoE) or via an external DC power supply (included). RedNet AM2 is ideal for adding headphone outputs to a studio-based system as well as offering a solution for education, live sound and broadcast.Designed to drive a wide range of headphones, the headphone amplifier will drive high impedance (up to 600 ohms) headphones at substantial levels, making the unit suitable for use on-stage as well as front-of-house or in a studio environment. The XLR line-level outputs have software-switchable 0dBFS reference levels of +18 or +24dBu.
- Monitor-quality precision digital conversion for Dante networks
- Power to drive even high impedance headphones at significant levels — ideal for drums or other on-stage applications
- Independent headphone and line out level controls
- Integrated mute switch - instantly kill the signal feeding external power amps or speakers
- Power over Ethernet (PoE) or via included power supply
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Line level outputs | |
| 0 DBFS Reference Output Levels | 18 or 24dBu (switchable) |
| Frequency Response Output | 20Hz - 20kHz ±0.05dB |
| THD N Output | <-100db (0.001) unweighted, 20hz - 20khz; -1dbfs input< span> |
| Dynamic Range | 120dB A-weighted (typical), 20Hz - 20kHz |
| Headphone output | |
| 0 DBFS Reference Levels Headphones | 19dBm |
| Headphone Frequency Response | 20Hz - 20kHz ±0.05dB |
| Headphone THD N | <-100db (0.001) unweighted, 20hz - 20khz; -1dbfs input< span> |
| Headphone Dynamic Range | 118dB A-weighted (typical), 20Hz - 20kHz |
| Output Impedance | 5O |
| Headphone Impedance | 32O - 600O |
| Digital performance | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
| Clock Sources | Internal or from Dante Network Master |
| Minimum Latency | 1ms |
| Front panel connectivity | |
| Headphone Outputs | 1 x 1/4" stereo jack |
| Line Outputs | 2 x Male XLR |
| PSU (PoE And DC) | 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector |
| Network | Green LED Indicates device is network master or network slave, shows valid network lock |
| POWER | |
| Power Over Ethernet (PoE) | Complies with IEEE 802.3af class 0 Power-over-Ethernet standard |
| DC Power Supply | 1 x 12V 1.2A DC Power Supply |
| Power Consumption | PoE |
| Operating Temperature | Operates at up to an ambient temperature of 50 degrees Celcius |
