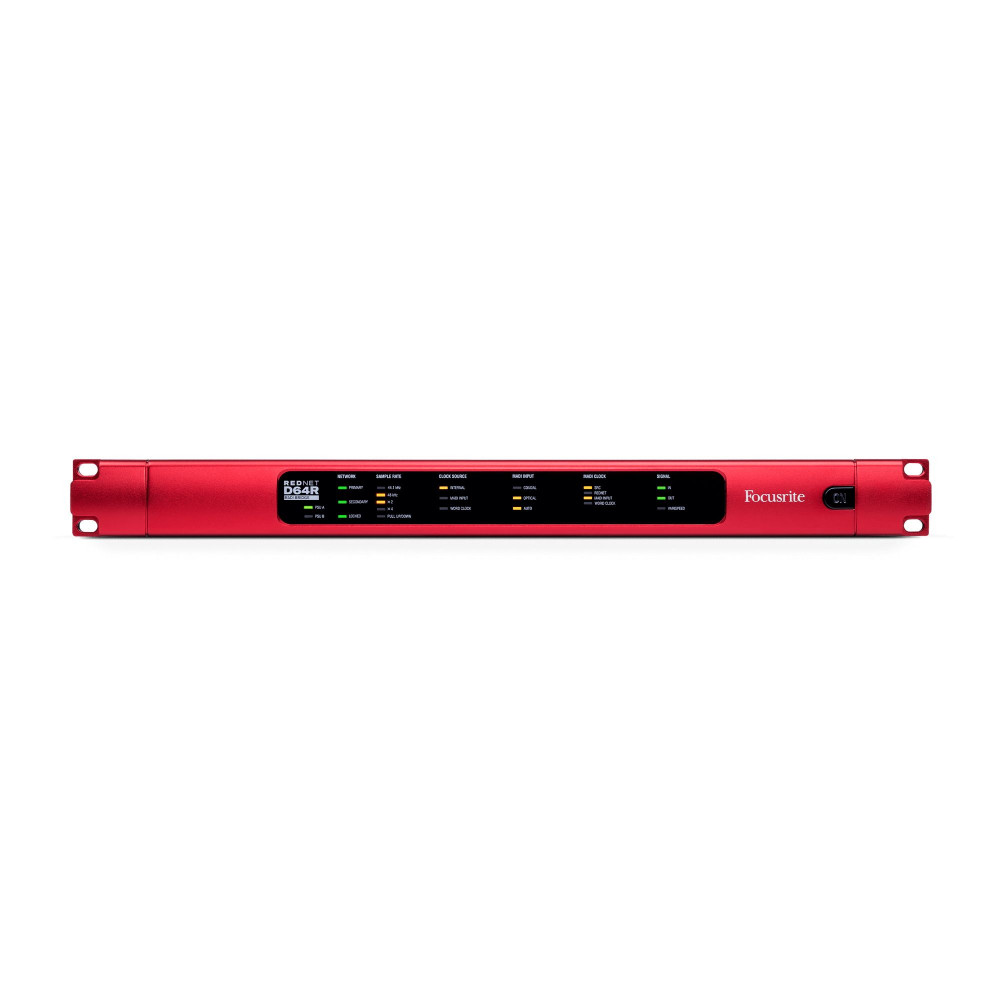

Focusrite RedNet D64R 64 Channel MADI Dante Bridge
₹262,163.00
MADI is widely used for large-scale digital audio systems such as audio consoles and conversion systems, allowing multiple channels to be carried along a single interface.
In Stock & Ready to ship
0 views Today
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warranty
Experience In-Store Like Buying Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Product Description
MADI is widely used for large-scale digital audio systems such as audio consoles and conversion systems, allowing multiple channels to be carried along a single interface. RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet's high quality interface products with a MADI system — or MADI components with a Dante system.D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. Connect a Dante network to MADI-based digital consoles, computer cards, converters and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out.
- Built-in redundancy with dual locking power and etherCON network connectors.Supports both coax and optical interfaces — connect simply to any MADI equipment.Slave either the Dante system or MADI streams to an external clock.Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz)Connects a MADI system and a Dante network seamlessly together.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Sample rate convertors | |
| Sample Rate Range | 41 to 216kHz (MADI) |
| Gain Error | -0.01dB |
| Dynamic Range | > 139dB (-60 dBFS method) |
| THD N | < -130dB (0.00003); 0 dBFS input |
| Latency | 43 to 196 samples (Network and MADI sample rate dependent) |
| MADI Clock Sources | RedNet, MADI Input and Word Clock |
| Digital performance | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
| Clock Sources | Internal, MADI or from Dante Network Master |
| External Word Clock Range | Nominal sample rate ±7.5 |

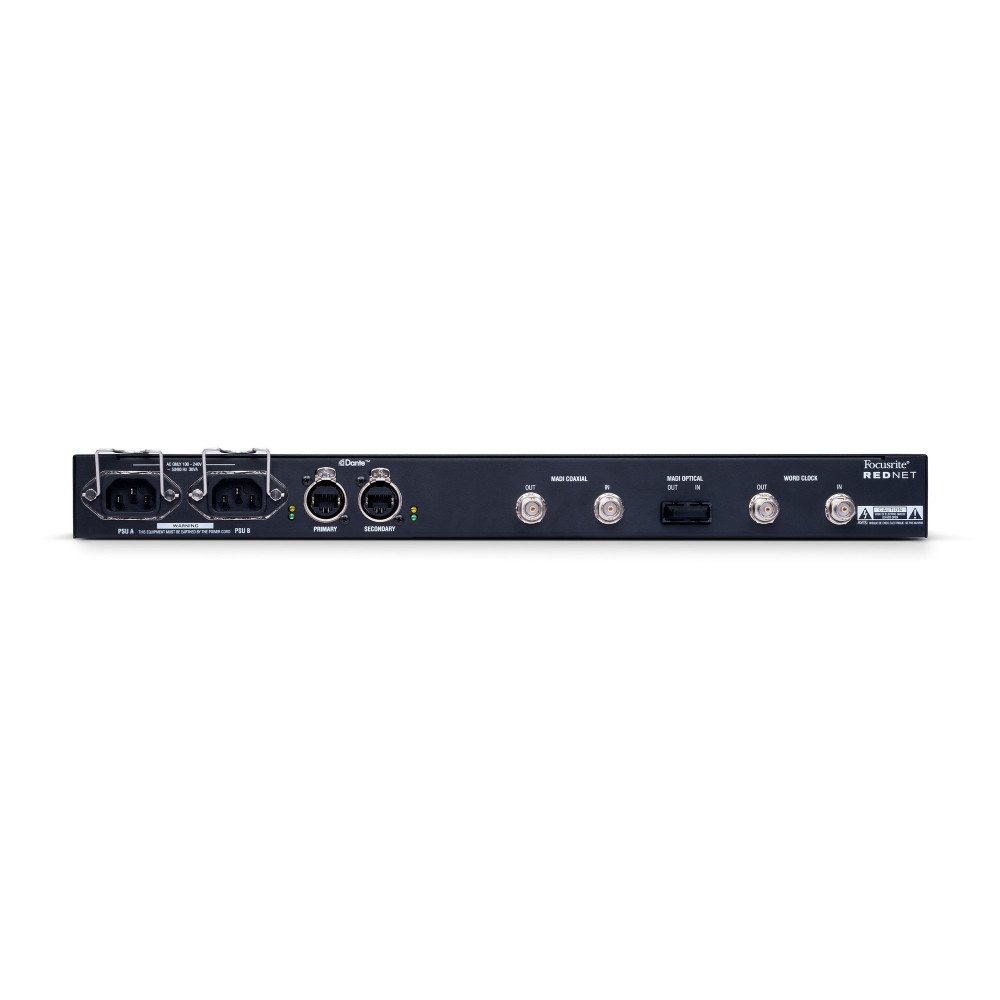

| Rear panel connectivity | |
| Electrical Standard | as per AES10 |
| Recommended Cable | OM1 adheres to AES10 |
| Connector | Duplex-SC |
| Optical Standard | as per AES10 |
| Word Clock Input | 1 x BNC 75O port |
| Word Clock Output | 1 x BNC 75O port |
| PSU | 2 x IEC Inputs with retaining clips |
| Network | 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors |
| Network modes | |
| Redundant | Allows unit to connect two independent networks |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining of device |
