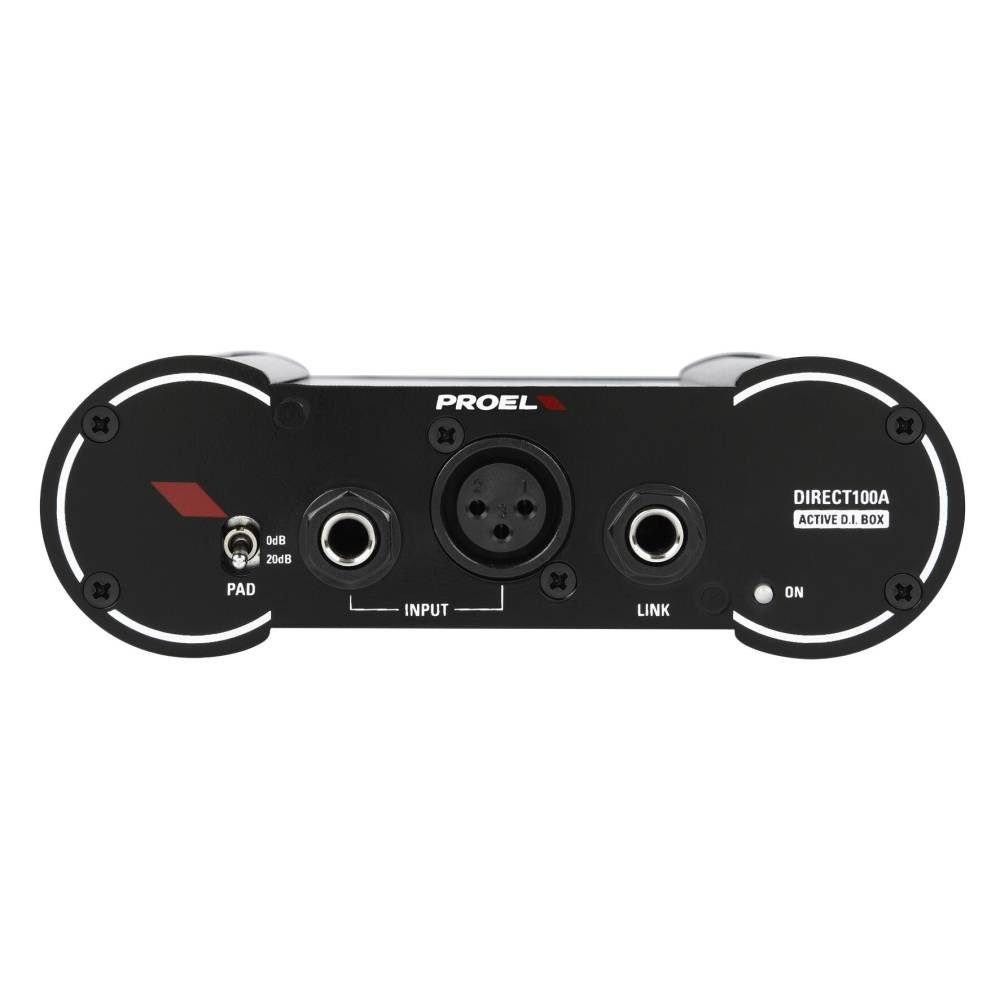

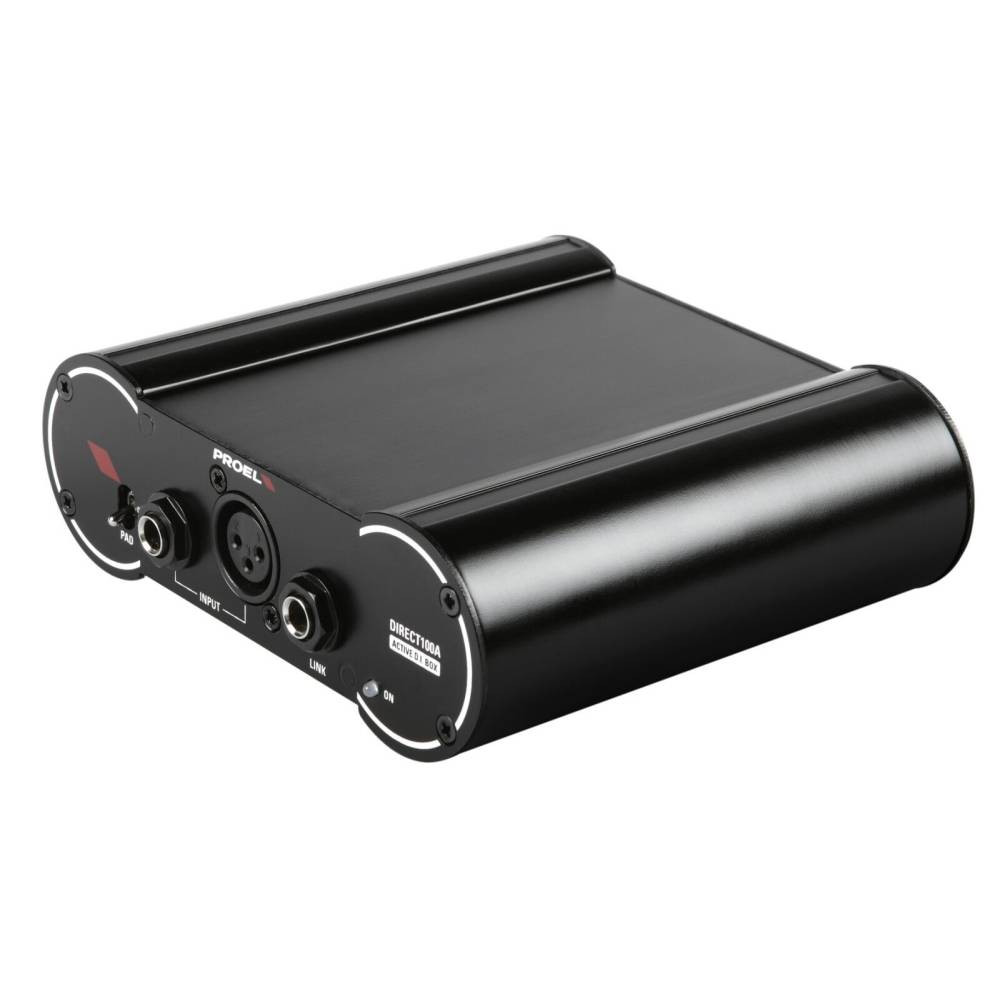

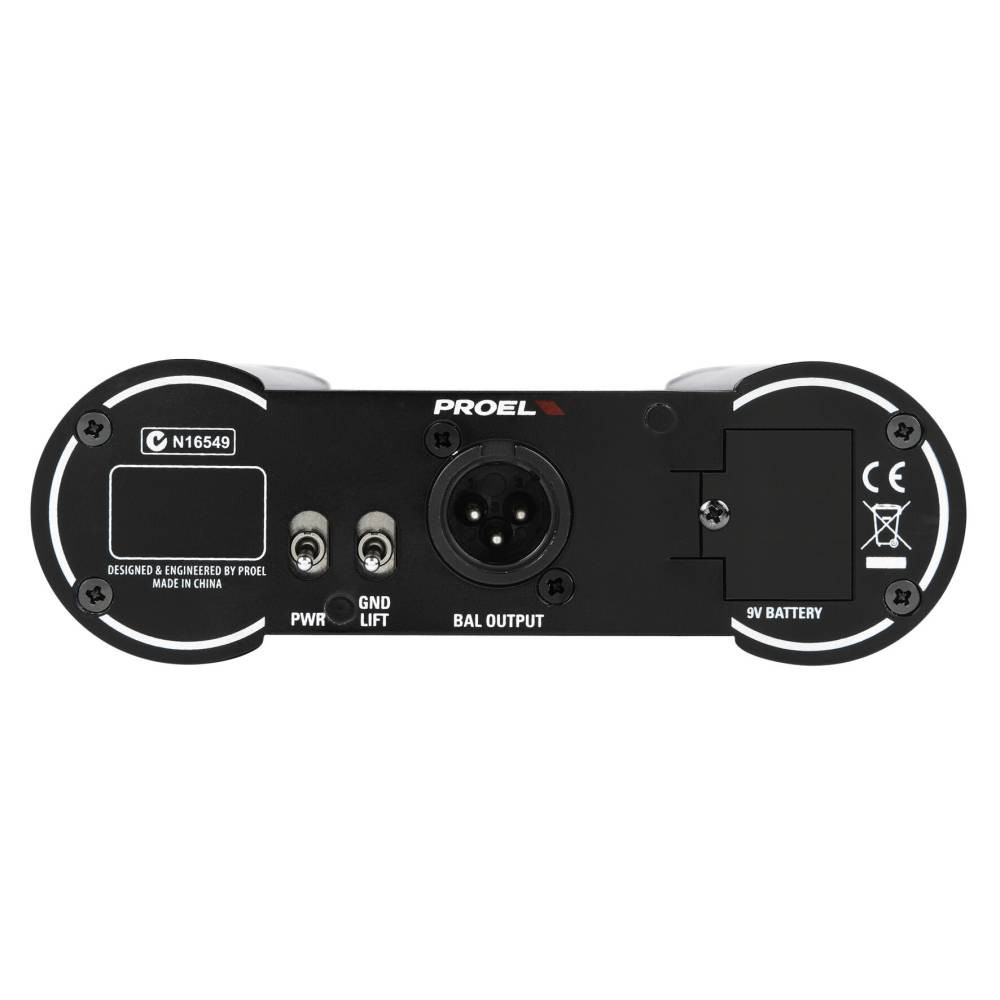

Proel DIRECT100A Active Direct Injection Box
₹5,980.00
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.
- Active Direct Injection Box.
- High quality isolation transformer for ultra-flat frequency response.
- Low-noise OP amps with high-quality sound performance.
- XLR-F and ¼” JACK input connectors + ¼” JACK link - XLR-M balanced output.
- 20dB PAD and GND lift switch.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Input Section | |
| Input Impedance | >250 Kohm |
| Max Input Level | #ERROR! |
| Connectors | 1 x XLR-F + 1 x 1/4" jack unbalanced |
| Link | 1 x 1/4" jack unbalanced |
| Output Section | |
| Output | Transformer Balanced (fully isolated) |
| Insertion Loss | 0 dB |
| Load Impedance | 600 Ohms or greater |
| Connector | XLR male |
| System Performance | |
| Distortion THD 50÷20k Hz 0dBu | < 0.005 % |
| Noise | < -105 dBu unweighted |
| Frequency Response | 10 Hz to 40 kHz (-3 dB) |
| General | |
| Controls | ON/OFF, PAD -20, GND LIFT |
| Indicators | Power ON |
| Phantom Power | #ERROR! |
| Battery | 9 volt PP3 type alkaline |
| Dimensions (W x H x D) | 152 x 50 x 134 mm |
| Weight (excluding batteries) | 0,70 Kg |
