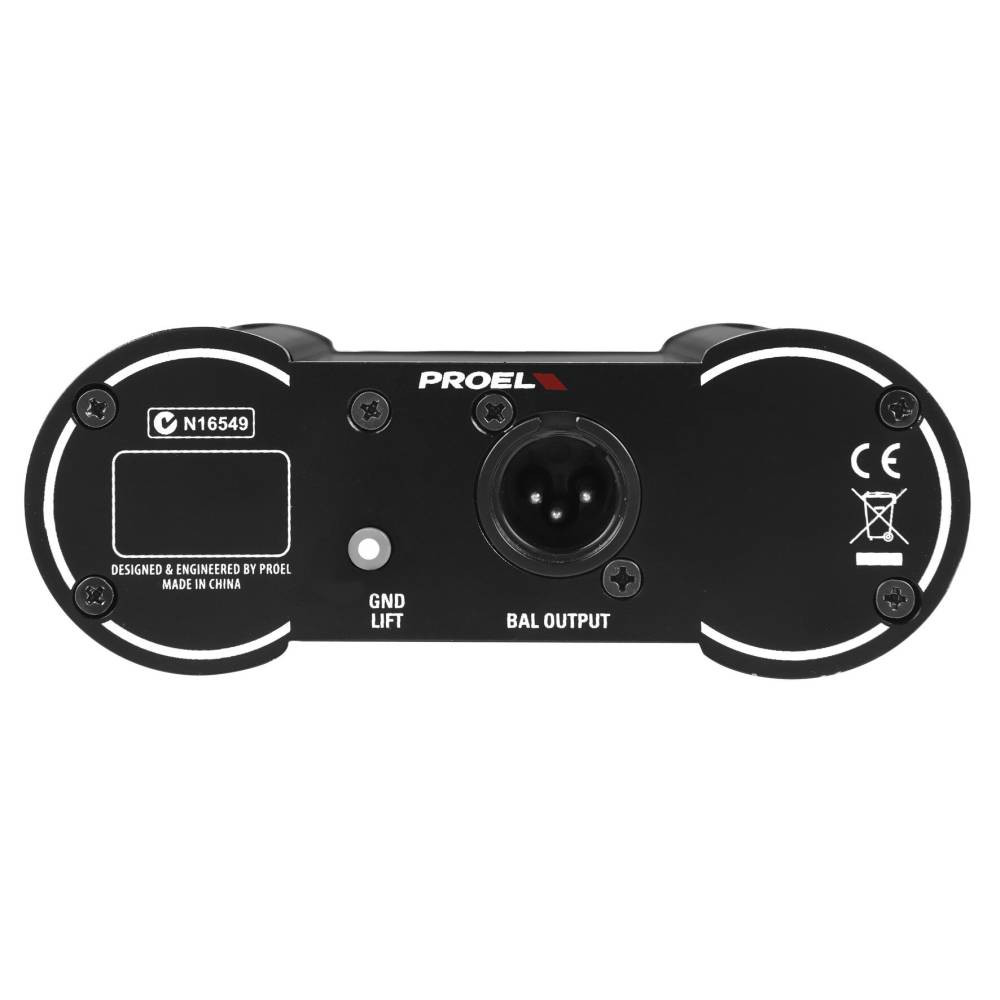

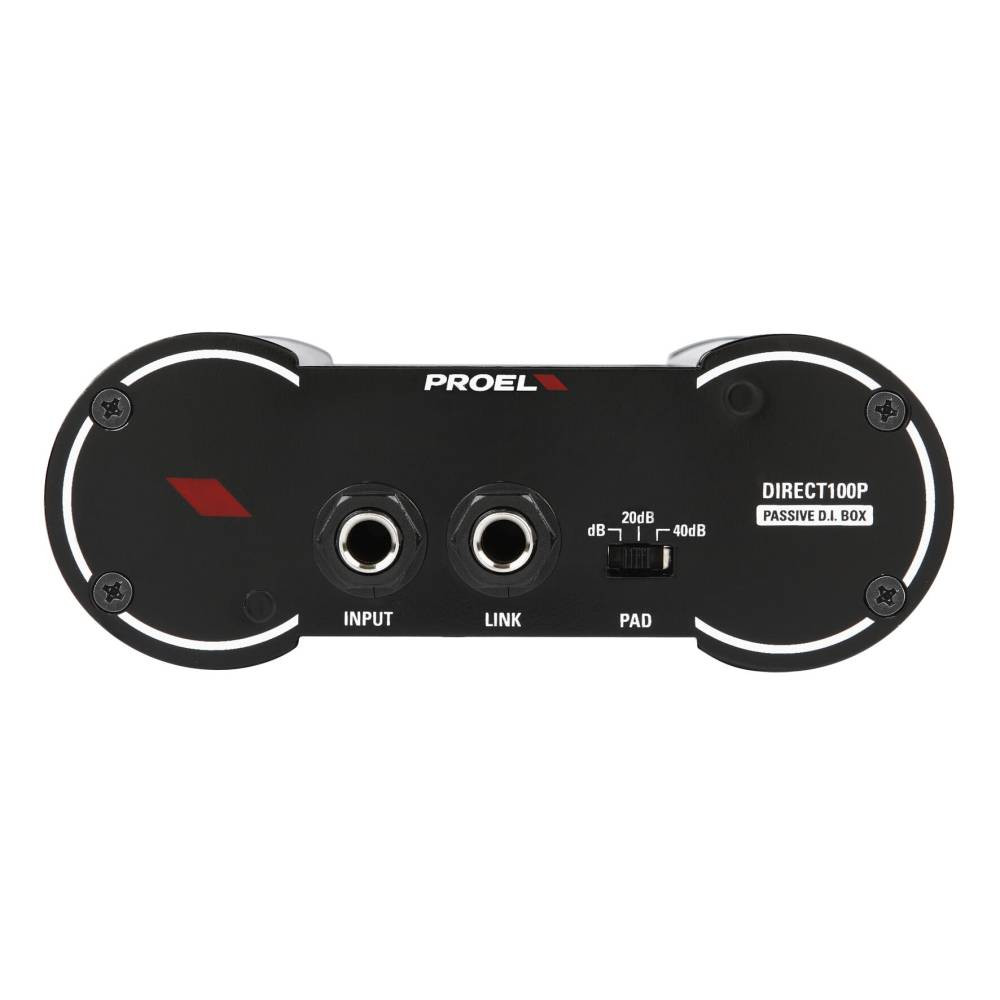

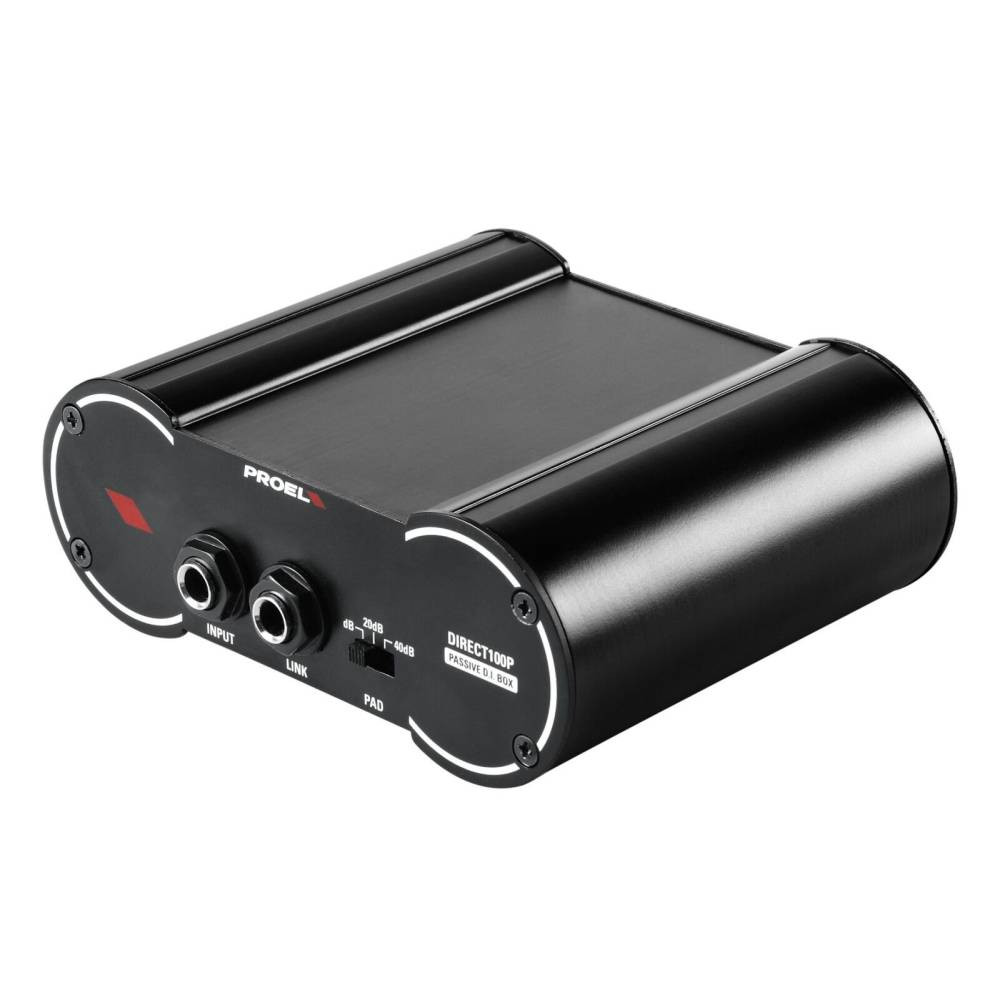

Proel DIRECT100P Passive Direct Injection Box
₹4,300.00
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.
- High quality isolation transformer for ultra-flat frequency response.
- High quality electronic components.
- ¼” JACK input and link connectors.
- XLR-M balanced output.
- 20dB & 40dB PAD and GND lift switch.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Input Section | |
| Input Impedance | >250 Kohm |
| Max Input Level | #ERROR! |
| Connectors | 1 x 1/4" jack unbalanced |
| Link | 1 x 1/4" jack unbalanced |
| Output Section | |
| Output | Transformer Balanced (isolated with shielding) |
| Insertion Loss | 26 dB |
| Load Impedance | 600 Ohms or greater |
| Connector | XLR male |
| System Performance | |
| Distortion THD 50÷20k Hz 0dBu | < 0.007 % |
| Frequency Response | 40 Hz to 20 kHz (-3 dB) |
| General | |
| Controls | PAD 0 / -20 / -40, GND LIFT |
| Dimensions (W x H x D) | 134 x 50 x 105 mm |
| Weight (excluding batteries) | 0,55 Kg |
