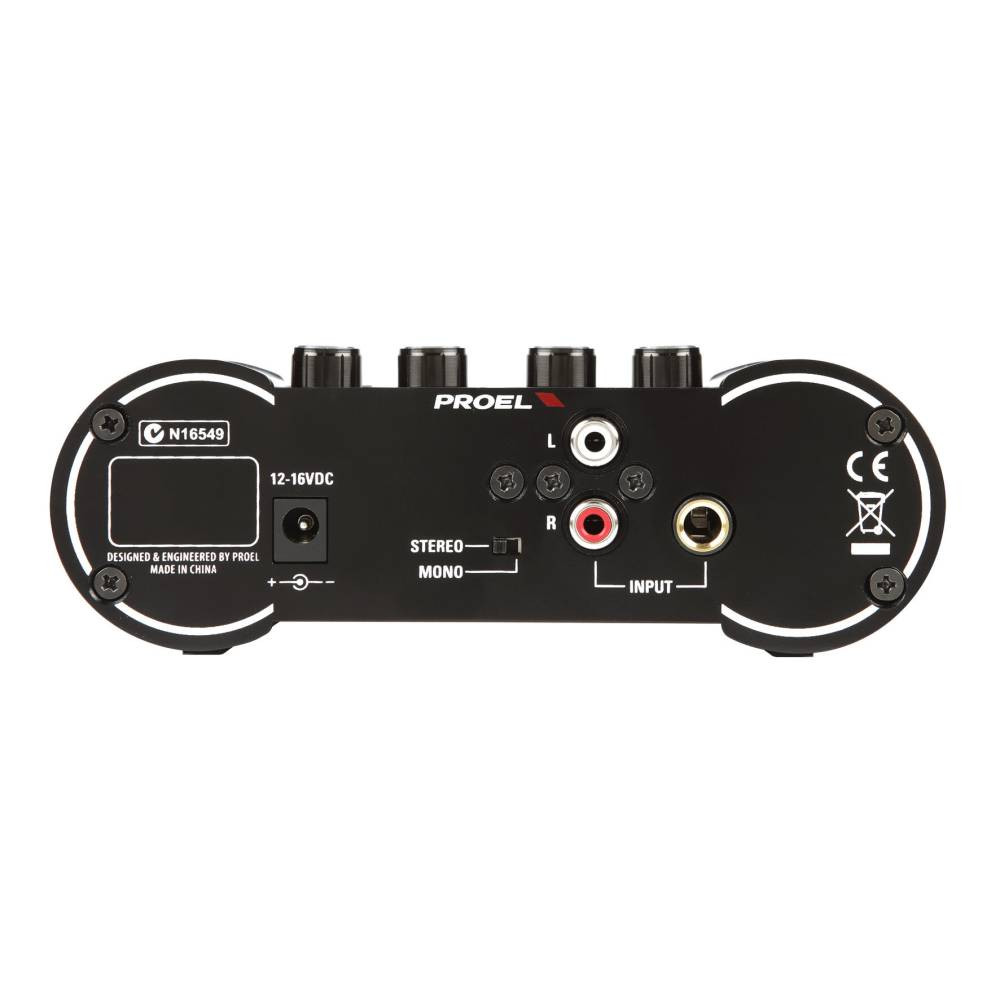

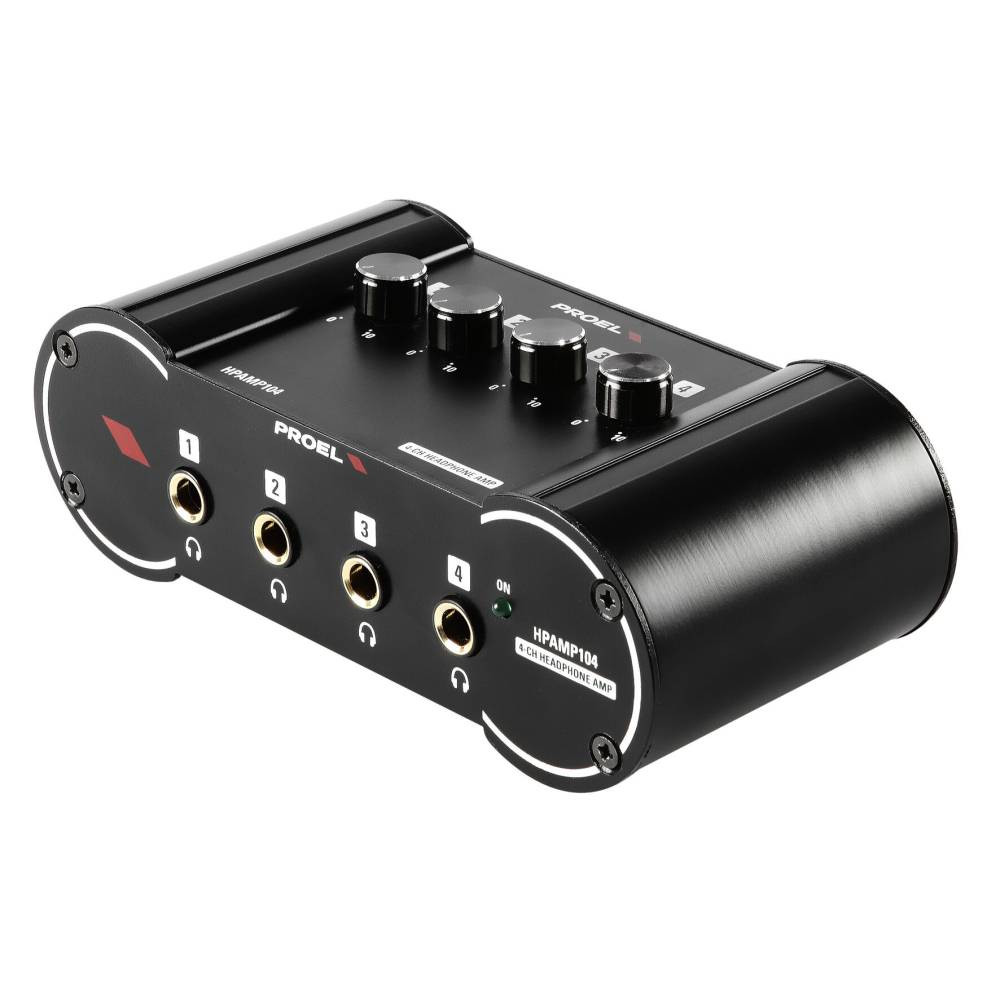

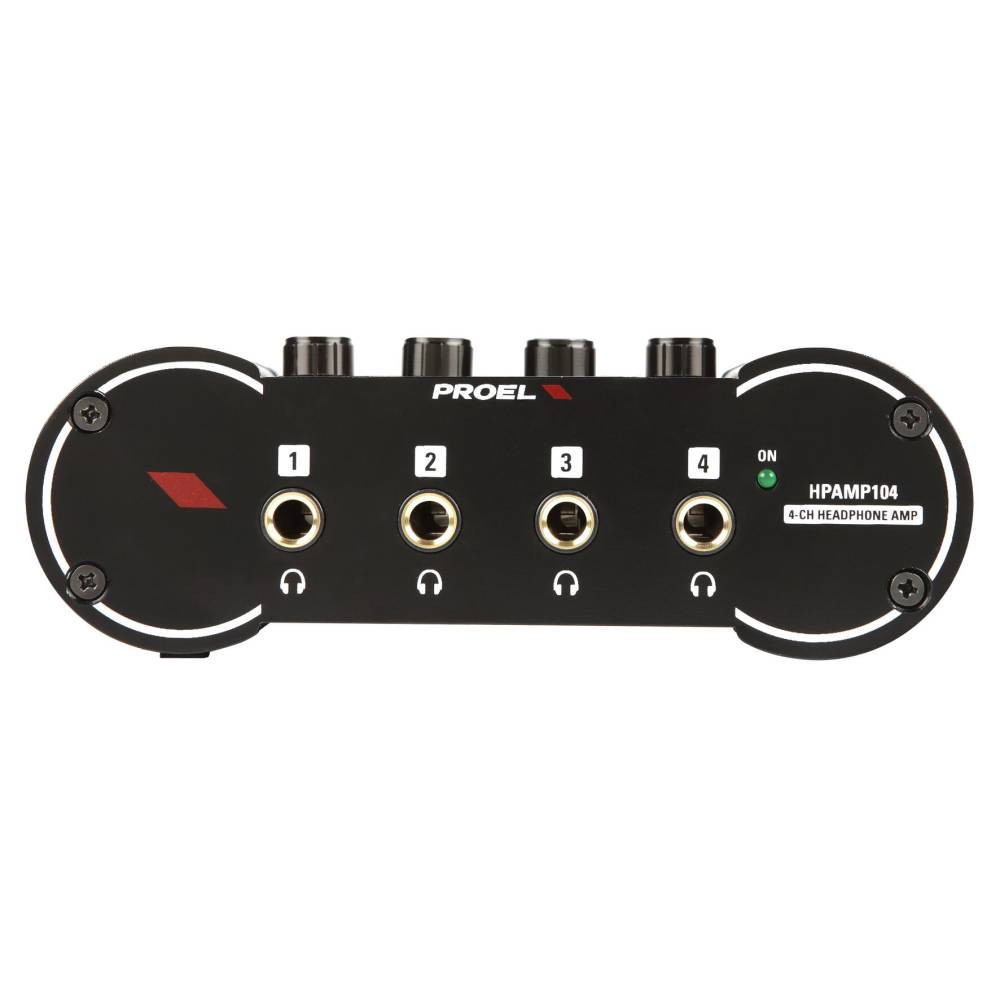

Proel HPAMP104 Headphone Amplifier
₹6,980.00
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.
- Very compact and portable package.
- ¼” JACK + RCA stereo/mono input.
- 4 x ¼” JACK stereo headphone outputs with individual level controls.
- +22dB max output level (per channel).
- 10 ohm minimum output impedance (per channel).
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Input Section | |
| Inputs | 1 stereo |
| Input Impedance | 500 Kohm |
| Max Input Level | #ERROR! |
| Connectors | 1/4" jack stereo, 2 x RCA |
| Output Section | |
| Outputs | 4 stereo |
| Maximum output | (2x) 45mW @ 100 ohm (each) |
| Load Impedance | minimum 16 ohm per channel |
| Max gain | #ERROR! |
| Connector | 1/4" jack stereo (each output) |
| System Performance | |
| Distortion (THD) | 0.0002 |
| Noise | < -98 dBu unweighted |
| Frequency Response | 20 Hz - 20 KHz (-3 dB) |
| General | |
| Controls | OUTPUT LEVEL, INPUT STEREO/MONO |
| Indicators | Power ON |
| Power supply | 12-18 VDC (adapter included) |
| Dimensions (W x H x D) | 152 x 50 x 72 mm |
| Weight | 0,8 Kg |
