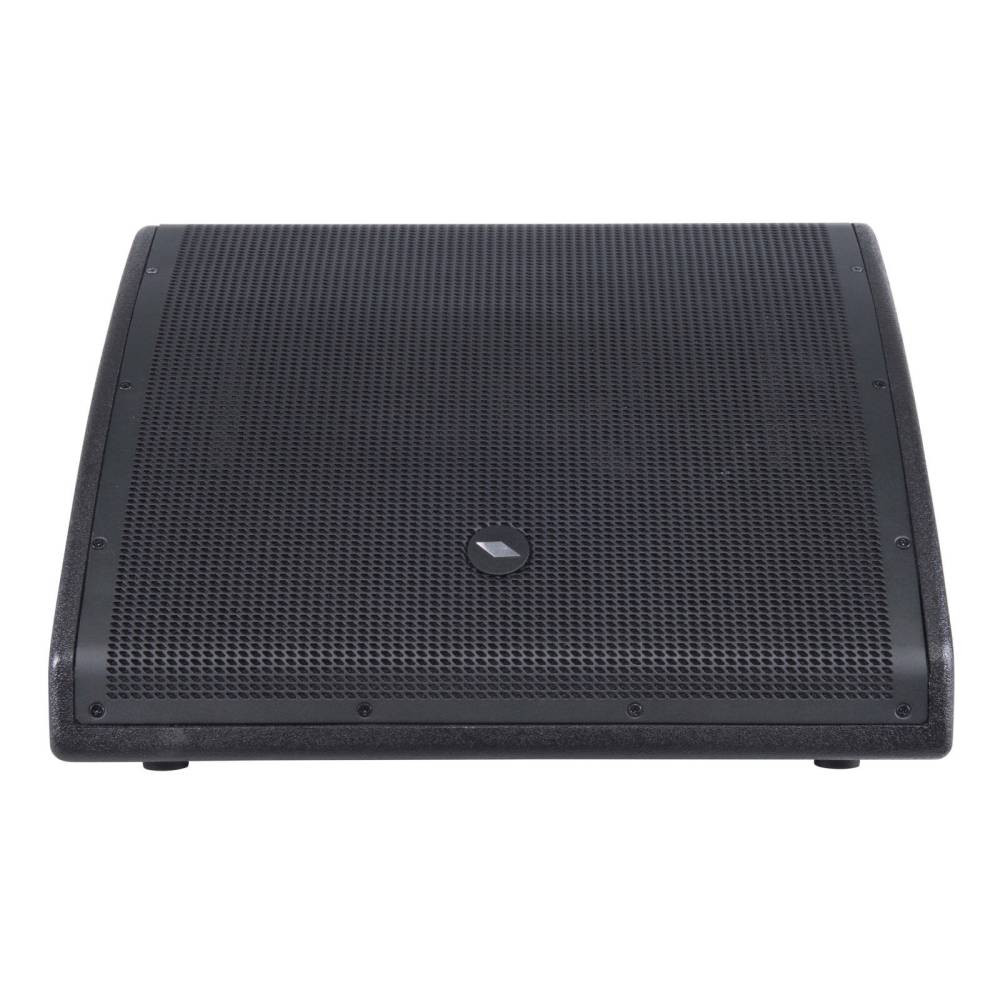

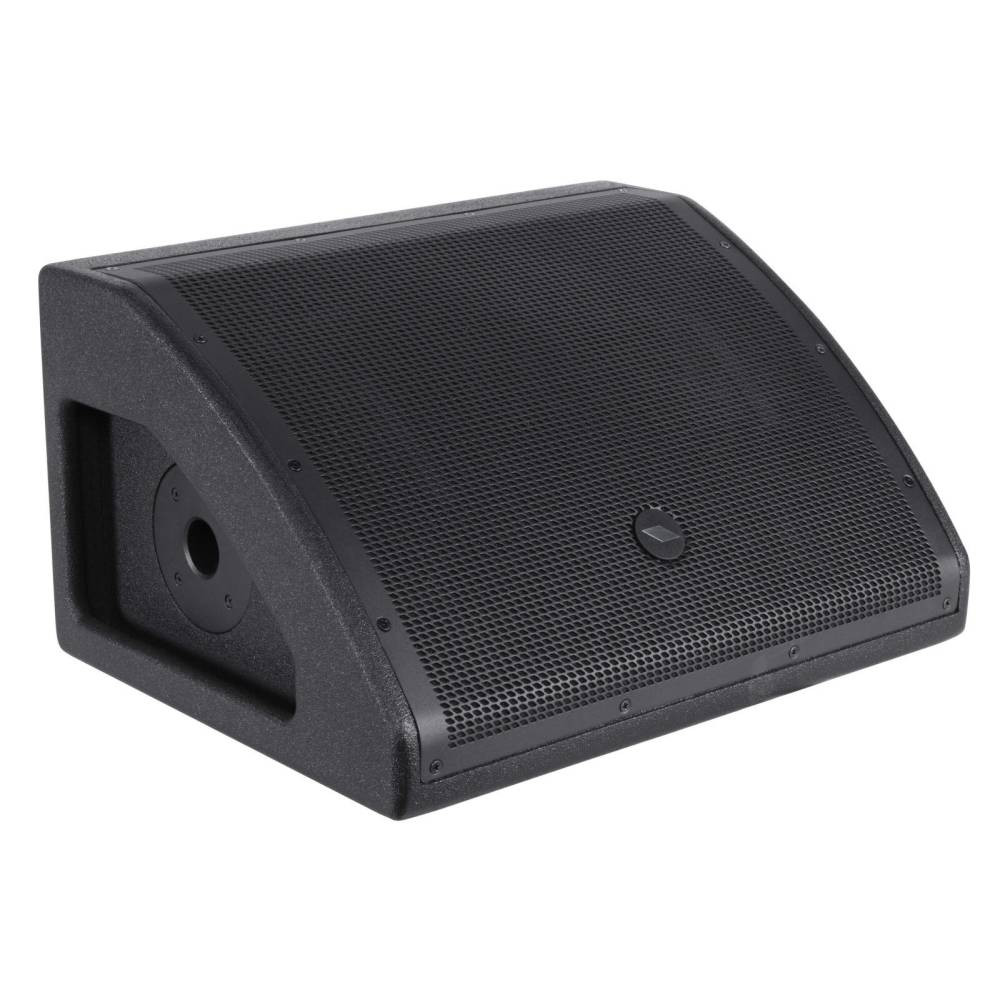

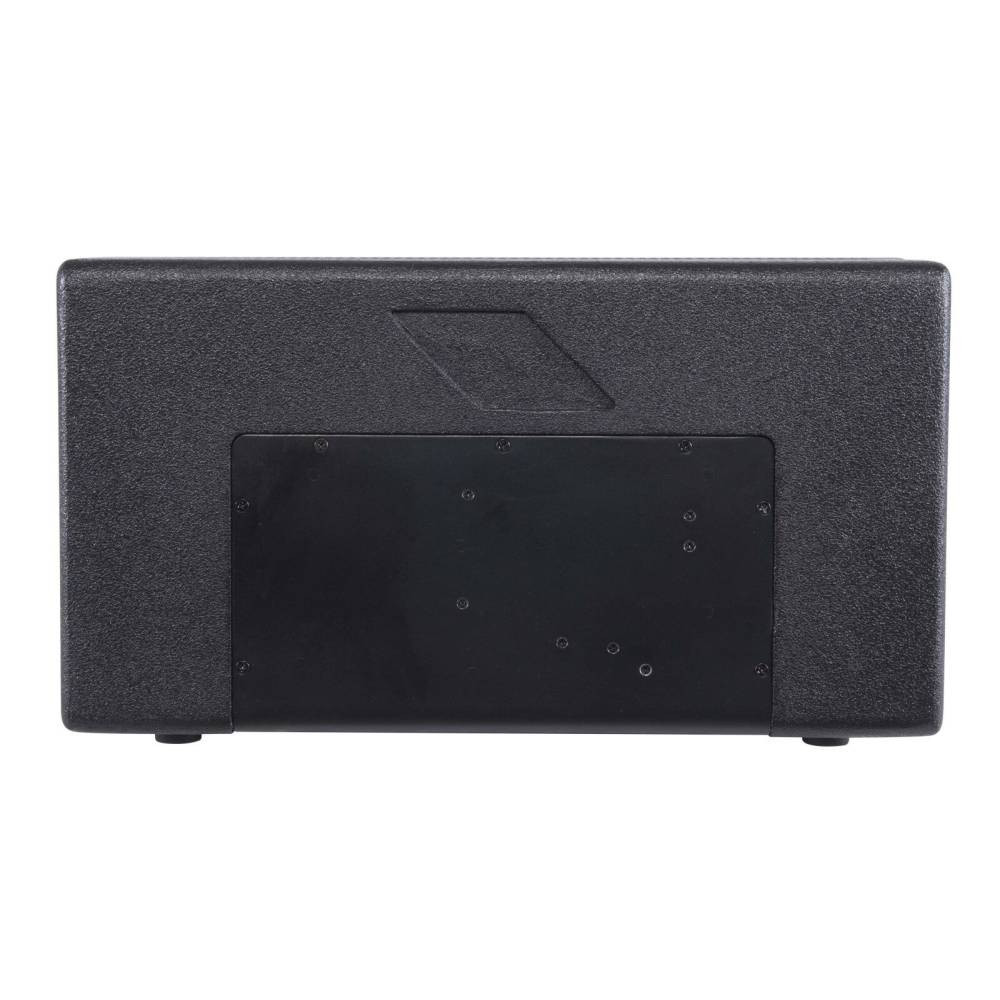

Proel WD10AV2 Active 2-way Coaxial Stage Monitor
₹48,495.00

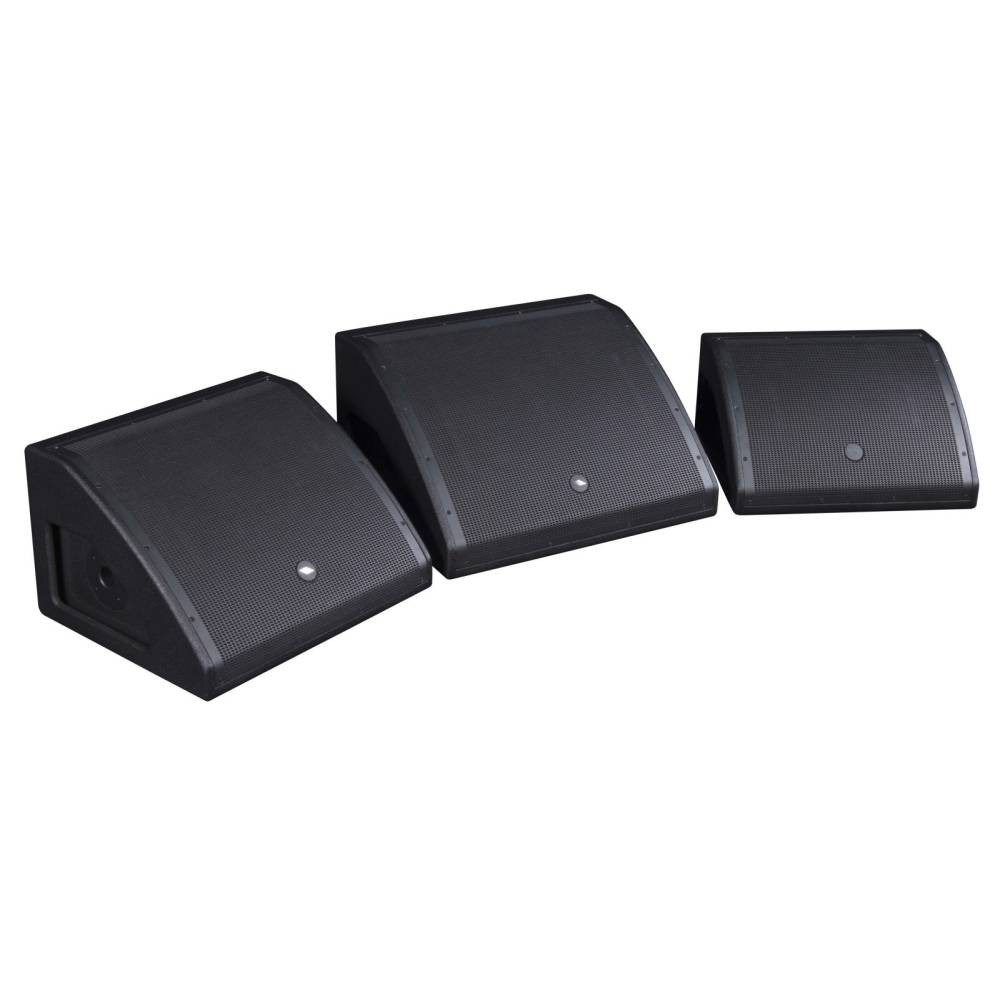

The WEDGE Series PROEL has set a standard for affordable and road-proof stage monitors, able to offer a highly valuable monitoring solution, with perfect sound intelligibility and high SPL in low-profile and portable enclosures.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description

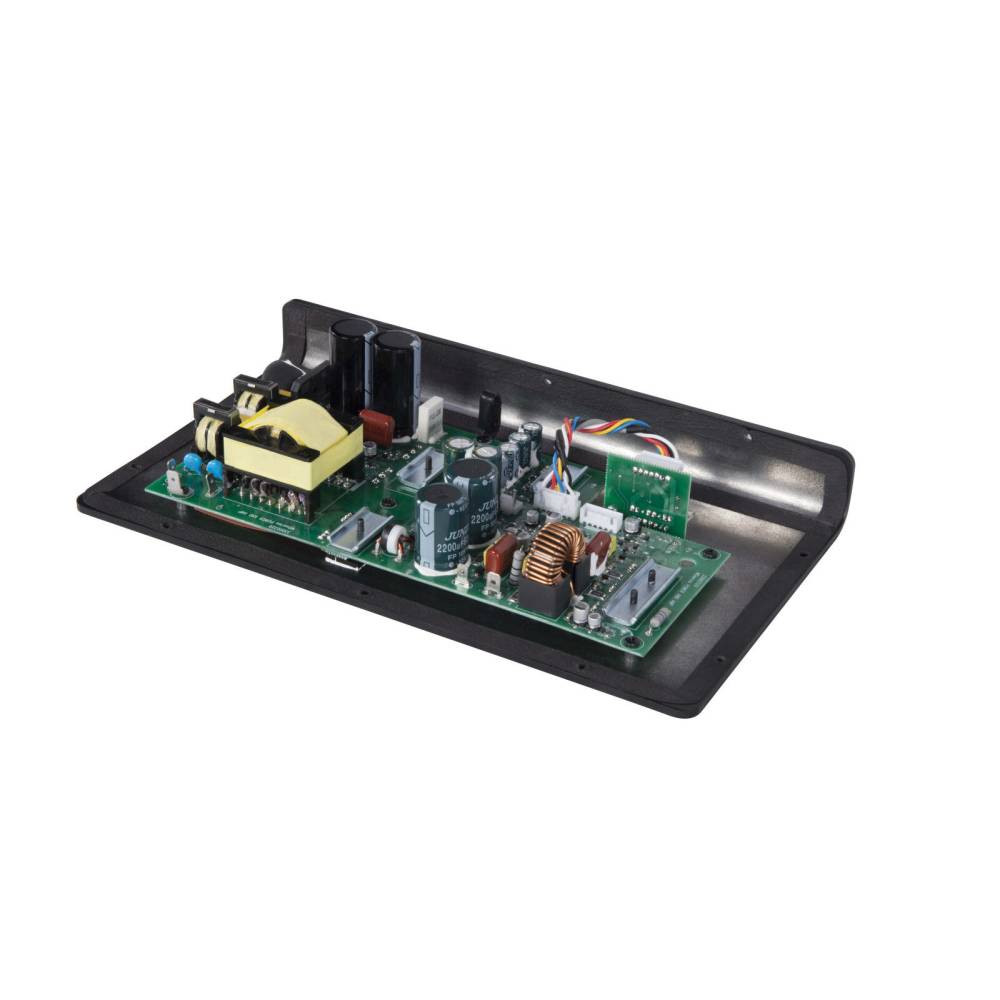

The lightweight CLASS D amplifier modules with SMPS have been completely re-designed, to provide the utmost reliability even when the system is stressed at the highest sound pressure levels. Coupled to a sophisticated analog processing, they provide an extremely detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two tailored EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH).
- 1” compression driver with 1” VC.
- 10” woofer with 2” VC.
- 250 W total power (500 W peak).
- 200 W class D + 50 W class AB power module with SMPS.
- Dual LIMITER circuit.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Features | |
| System type | 2-way coaxial vented stage monitor |
| Low Frequency Device | 10” woofer with 2"VC |
| High Frequency Device | 1” compression driver with 1"VC |
| Angular Coverage | 80° |
| Frequency response | 60 Hz - 20 kHz |
| Max SPL at 1mt (peak) | 123 dB |
| Amplifier Continuous Power | HF: 50 W CLASS AB, LF: 200W CLASS D with SMPS |
| Input Impedance | 30 kohm balanced, 15 kohm unbalanced |
| Input Sensitivity | 0 dBu |

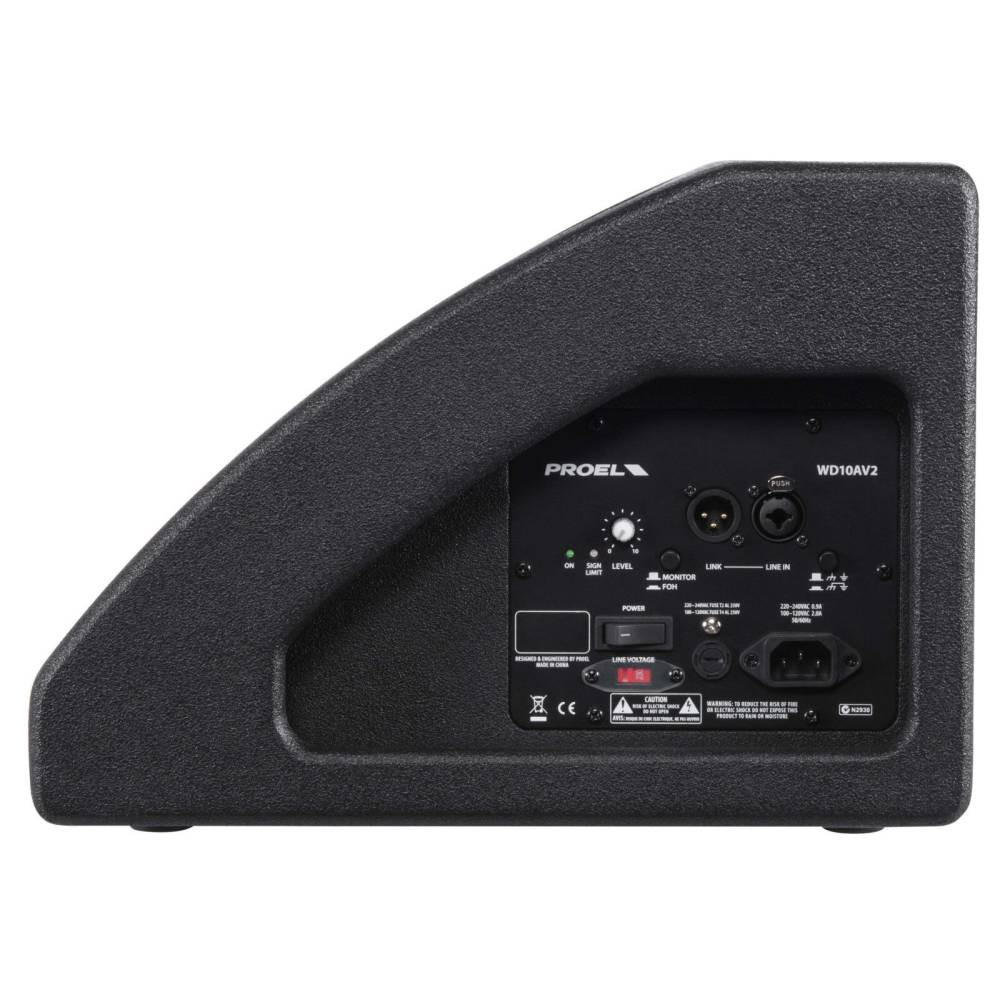

| Controls | LEVEL, PRESET selector (MONITOR, FOH), GND lift |
| Connectors | INPUT: COMBO (XLR-F/JACK), LINK: XLR-M |
| Power Supply | 230 VAC or 120 VAC - 50/60 Hz |
| Maximum Consumption | 315 W |
| Rated Consumption* | 165 W |
| Construction | Plywood with black anti-scratch polyurethane paint |

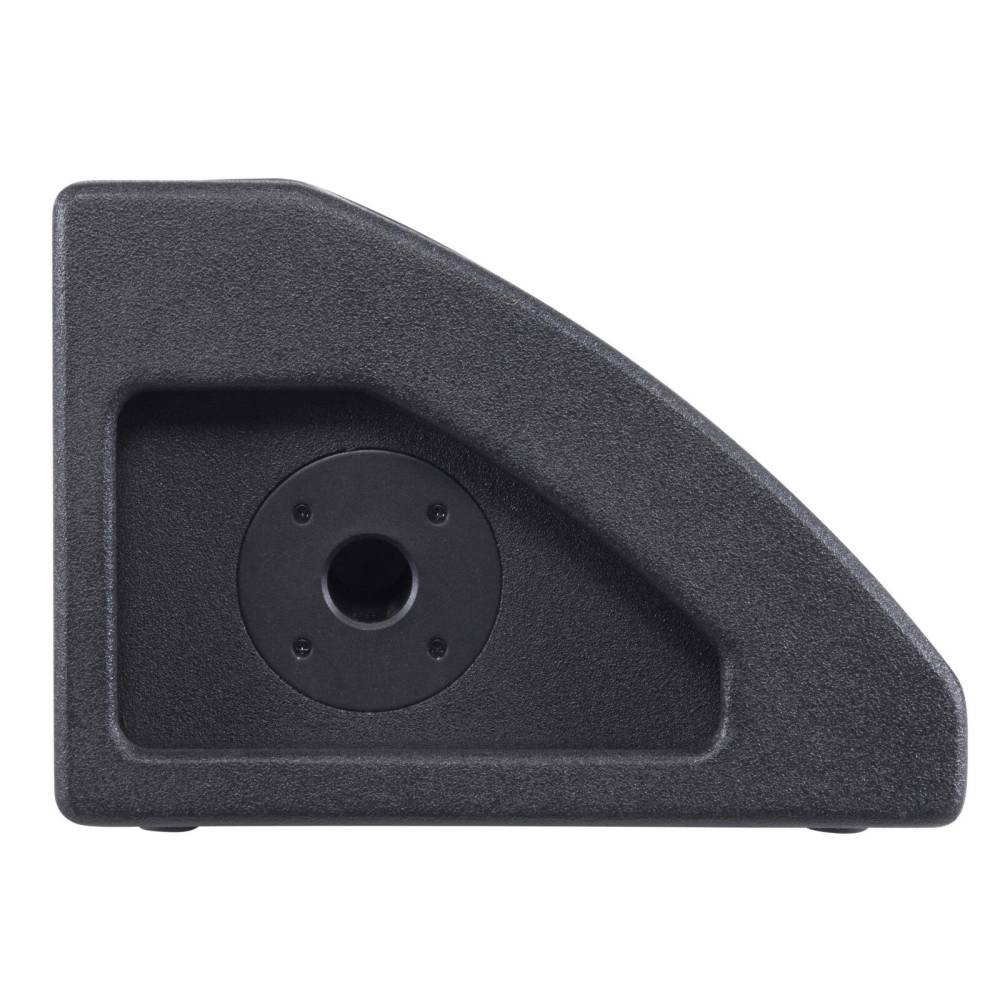

| Pole Adapter | 1 x side |
| Handles | 2 x sides |
| Monitor taper | 36° |
| Weight | 12 kg (26,4 lb) |
| Dimensions (W x H x D) | 490x265x375 mm |
