Proel

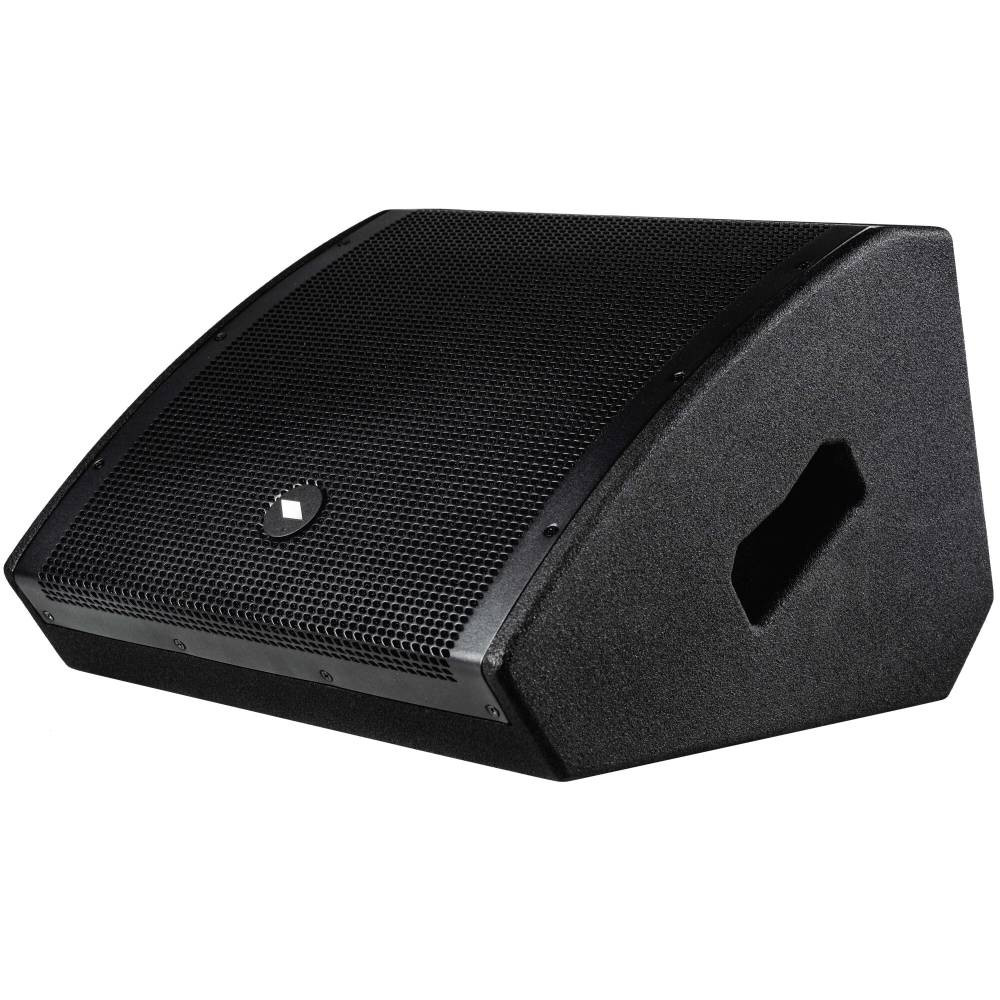

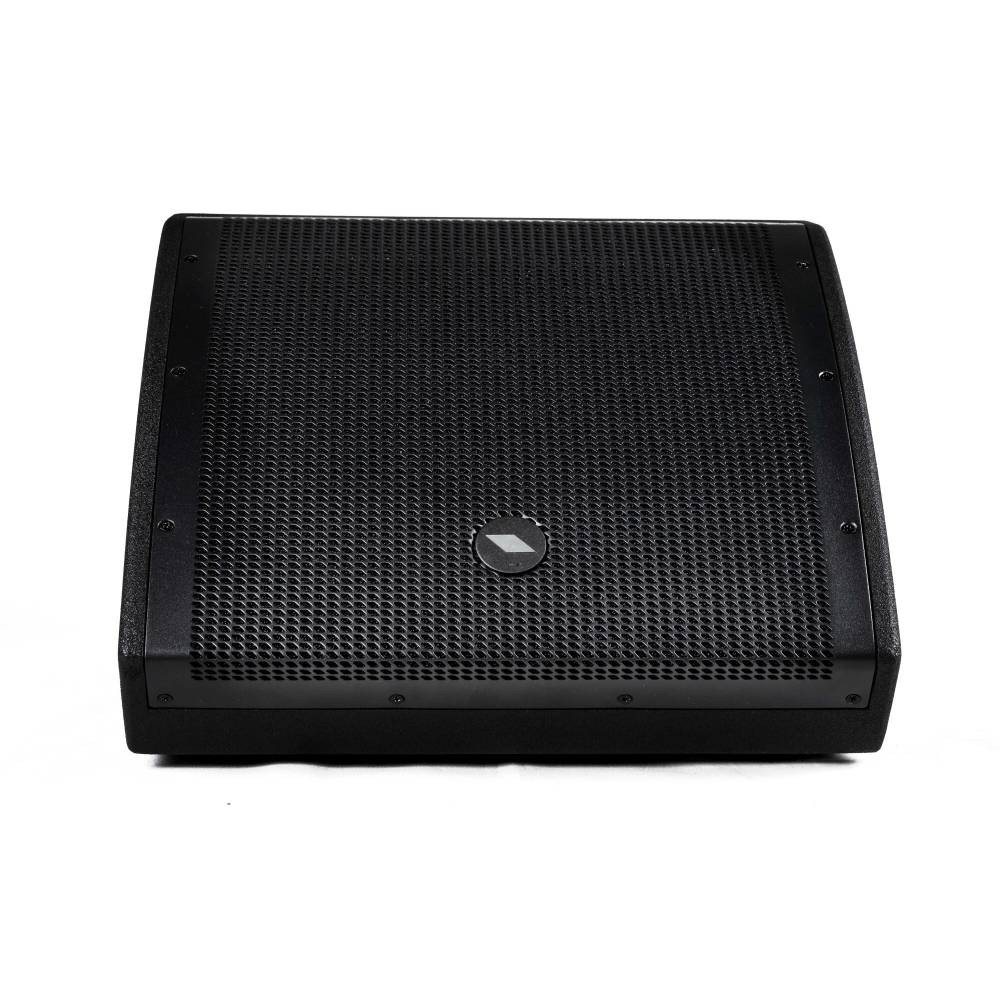

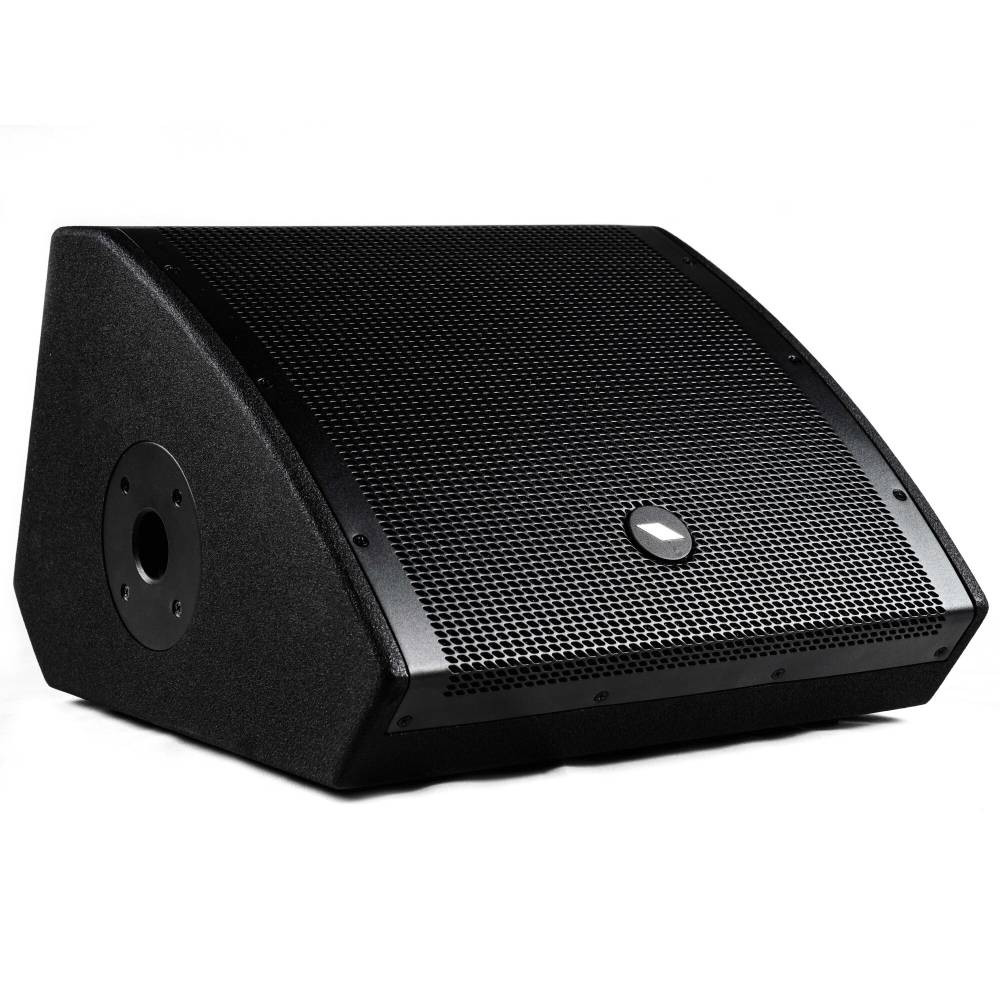

Proel WX10A Active 2-way Coaxial Stage Monitor

34,965.00

WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.

in stock ready to shipIn Stock & Ready to ship
View0 views Today
enquireEnquire
phone
9940046621
Reasons to choose us
collectionsSecured shipping
collections24/7 expert service
collectionsGenuine products
collectionsStandard warranty
true in-store experience

Experience In-Store Like Buying Experience

Get expert advice on choosing the right instrument.

Talk to our product expert at
9940046621
9940046621

Product Description

The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.
  • 1” compression driver with 1” VC.
  • 10” woofer with 2” VC.
  • 500 W total power.
  • Class D power amplifier with SMPS.
  • Dual LIMITER circuit.

overstockWant to sell yours?

List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price

Features
System type2-way coaxial vented stage monitor
Low Frequency Device10” woofer with 2"VC
High Frequency Device1” compression driver with 1"VC
Angular Coverage60°
Frequency response70 Hz - 20 kHz
Max SPL at 1mt (peak)123 dB
Amplifier Continuous Power250W CLASS D with SMPS
Input Impedance30 kohm balanced, 15 kohm unbalanced
Input Sensitivity-10 dBu

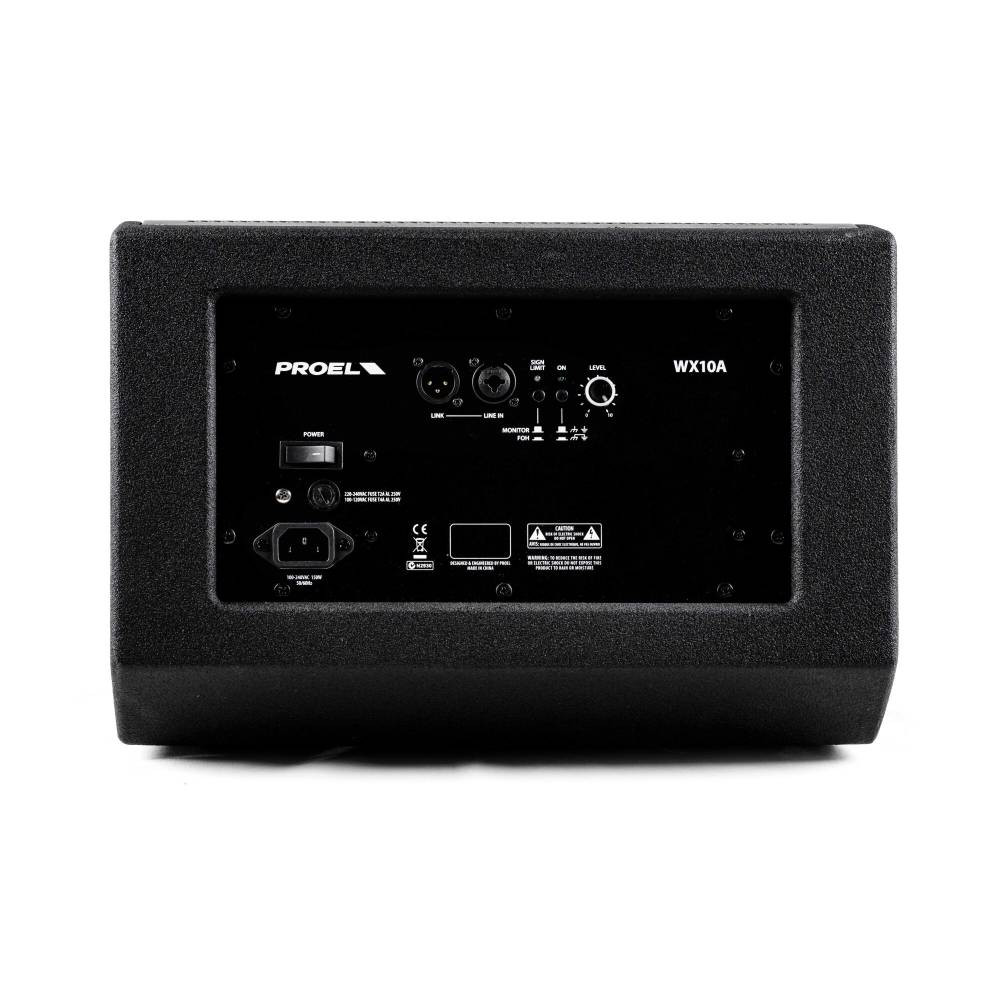

ControlsLEVEL, PRESET selector (MONITOR, FOH), GND lift
ConnectorsINPUT: COMBO (XLR-F/JACK), LINK: XLR-M
Power Supply230 VAC or 115 VAC - 50/60 Hz
Rated Consumption*200 W
ConstructionMDF with black anti-scratch polyurethane paint

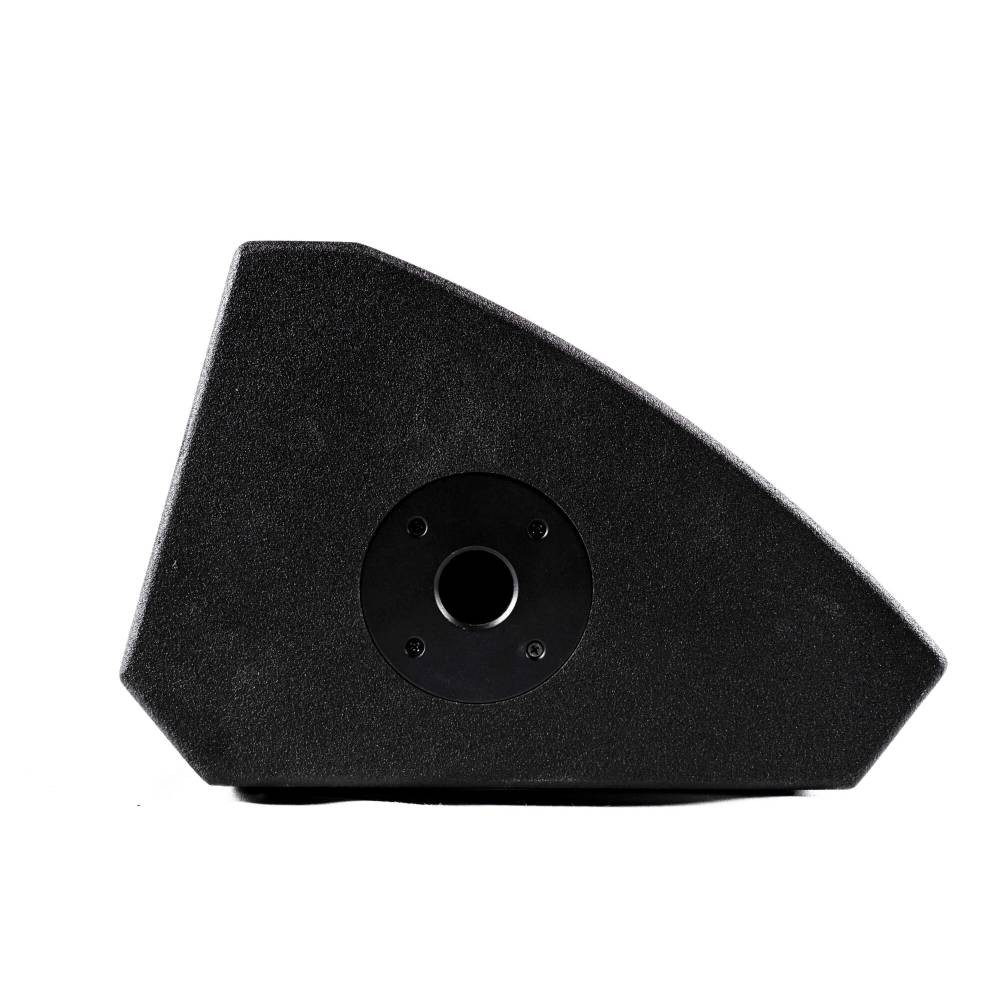

Pole Adapter1 x side

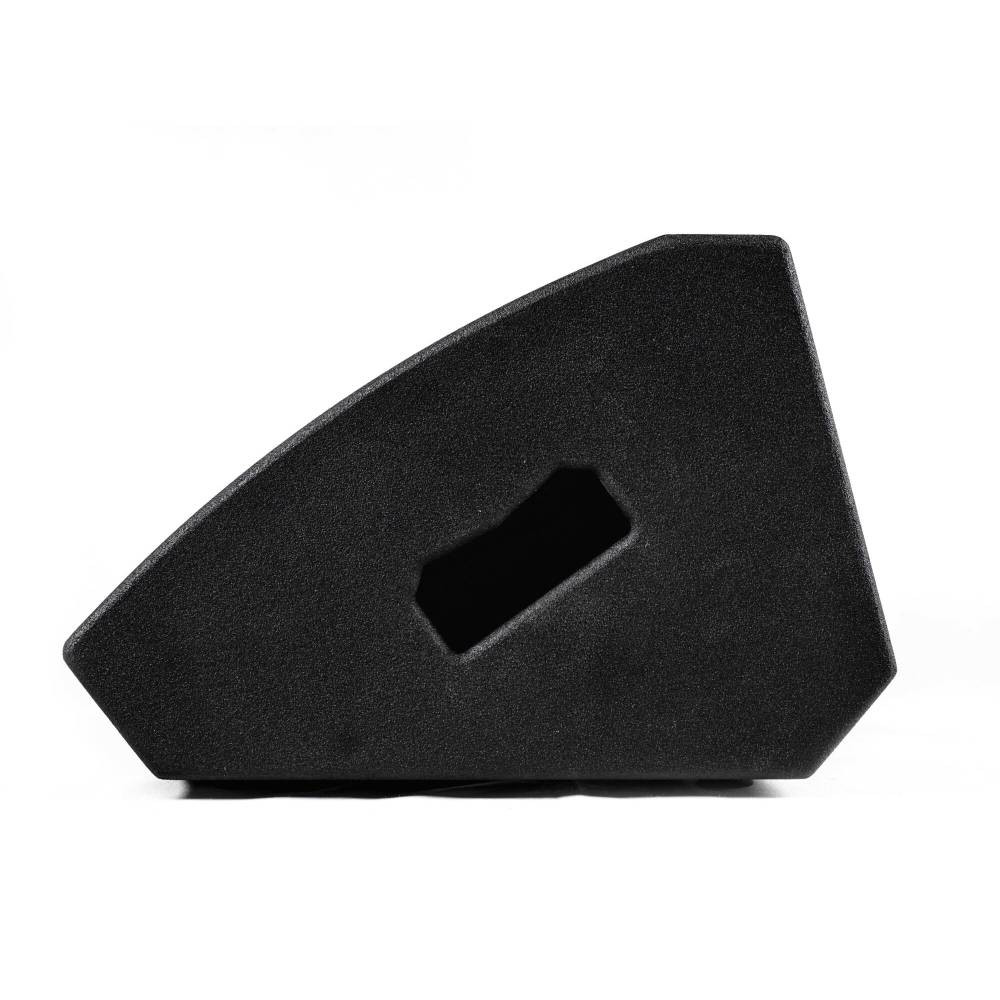

Handles1 x side
Monitor taper36°
Weight10 kg (22 lb)
Dimensions (W x H x D)390x396x270 mm
;
