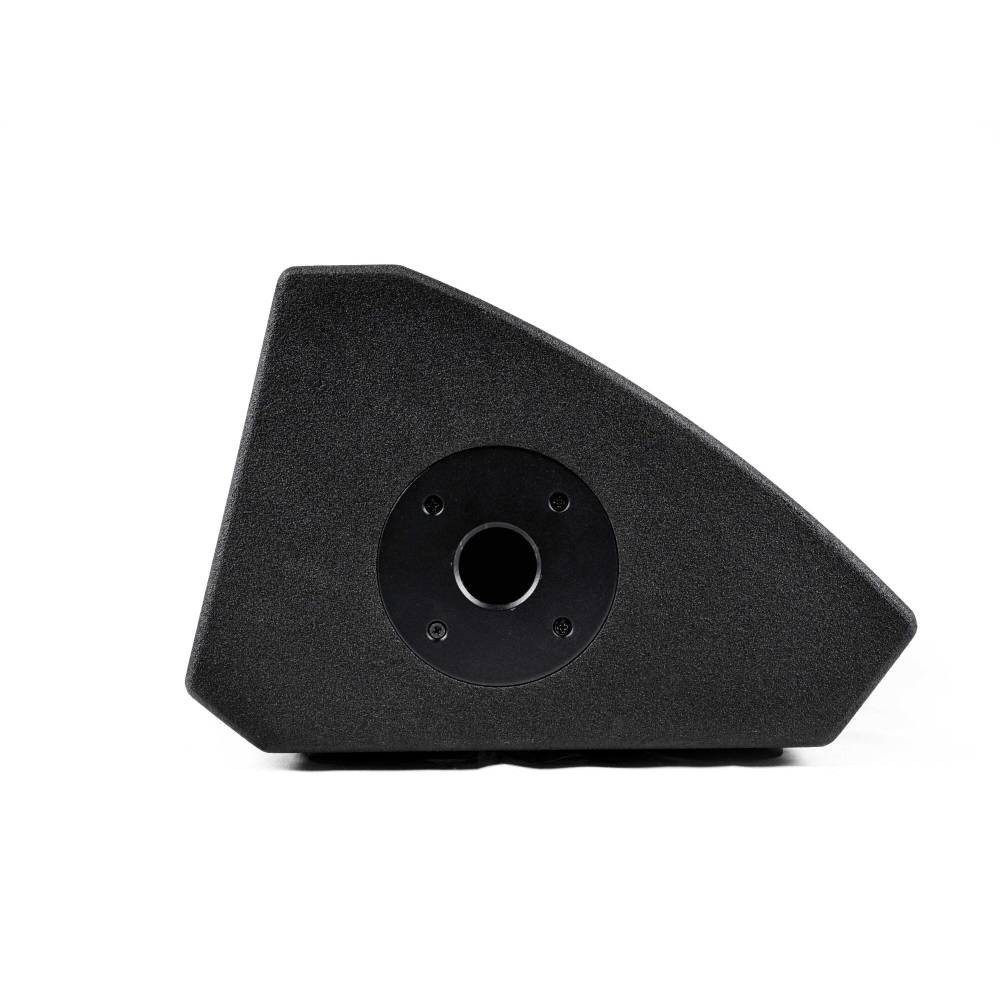

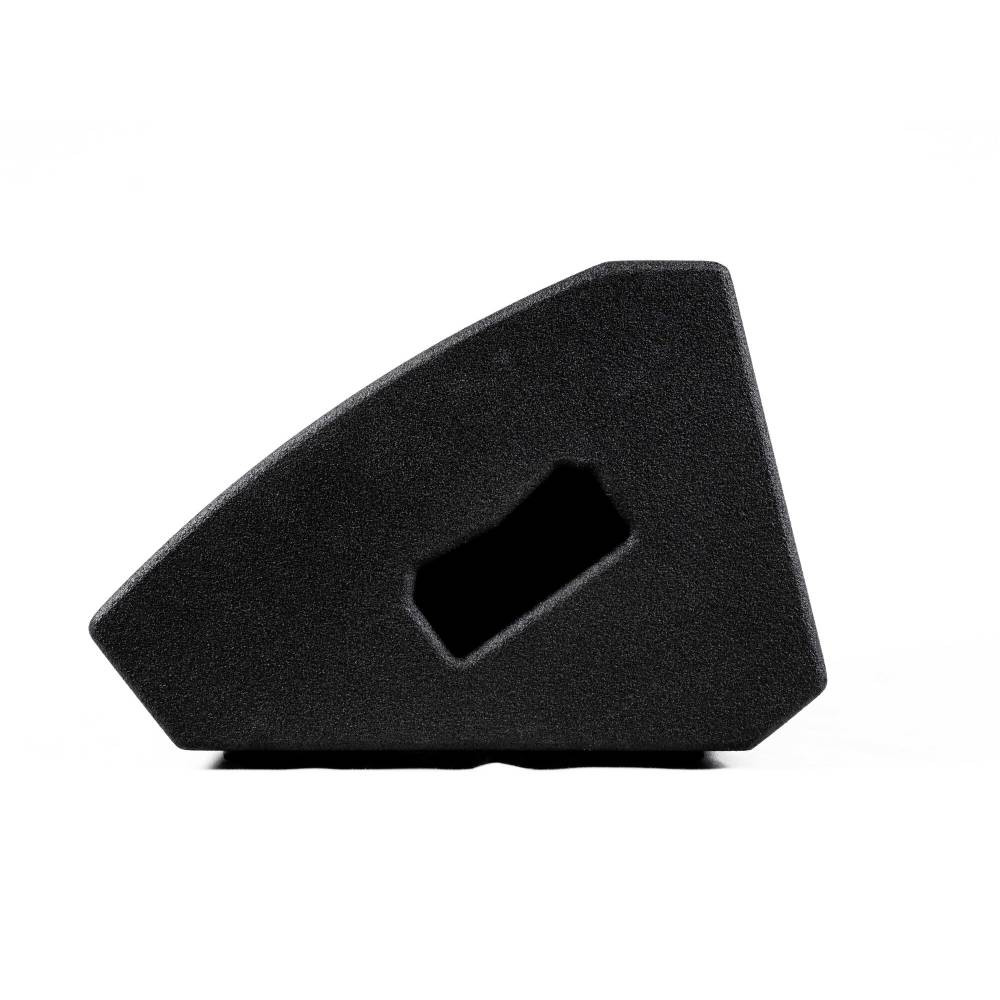

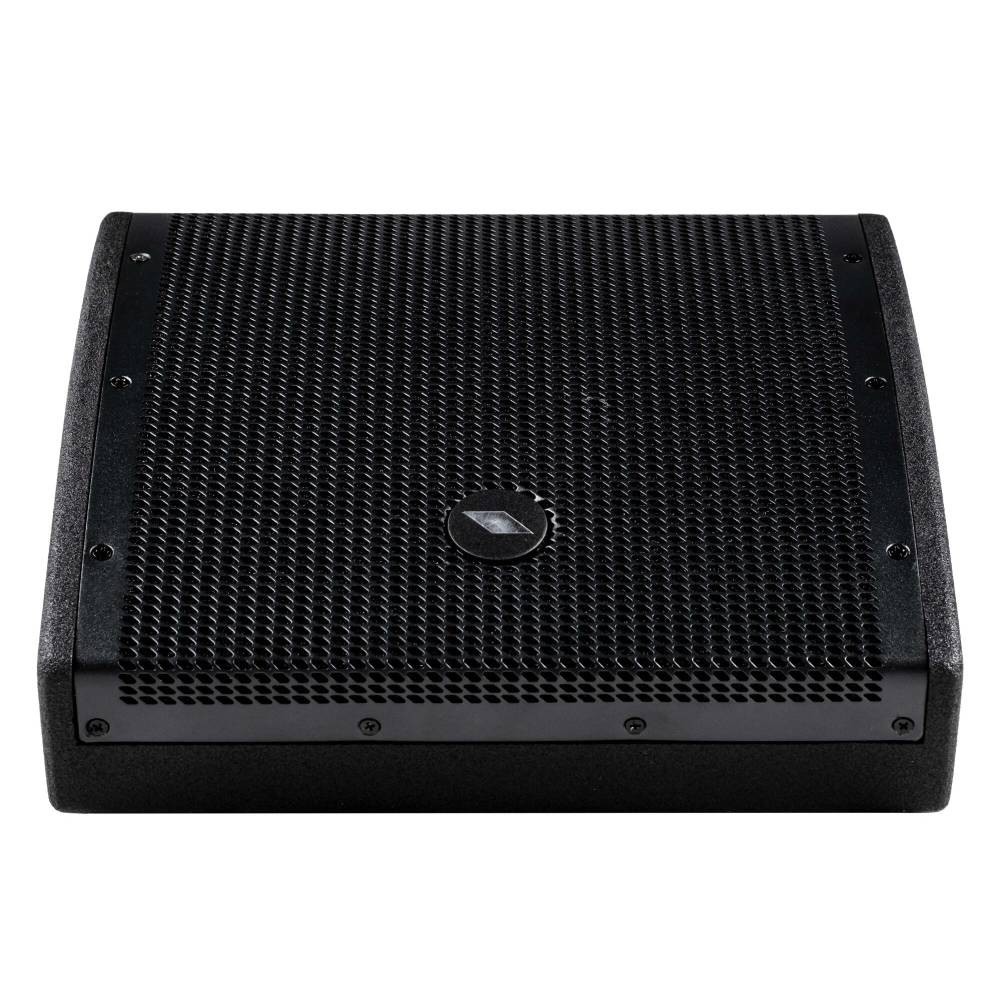

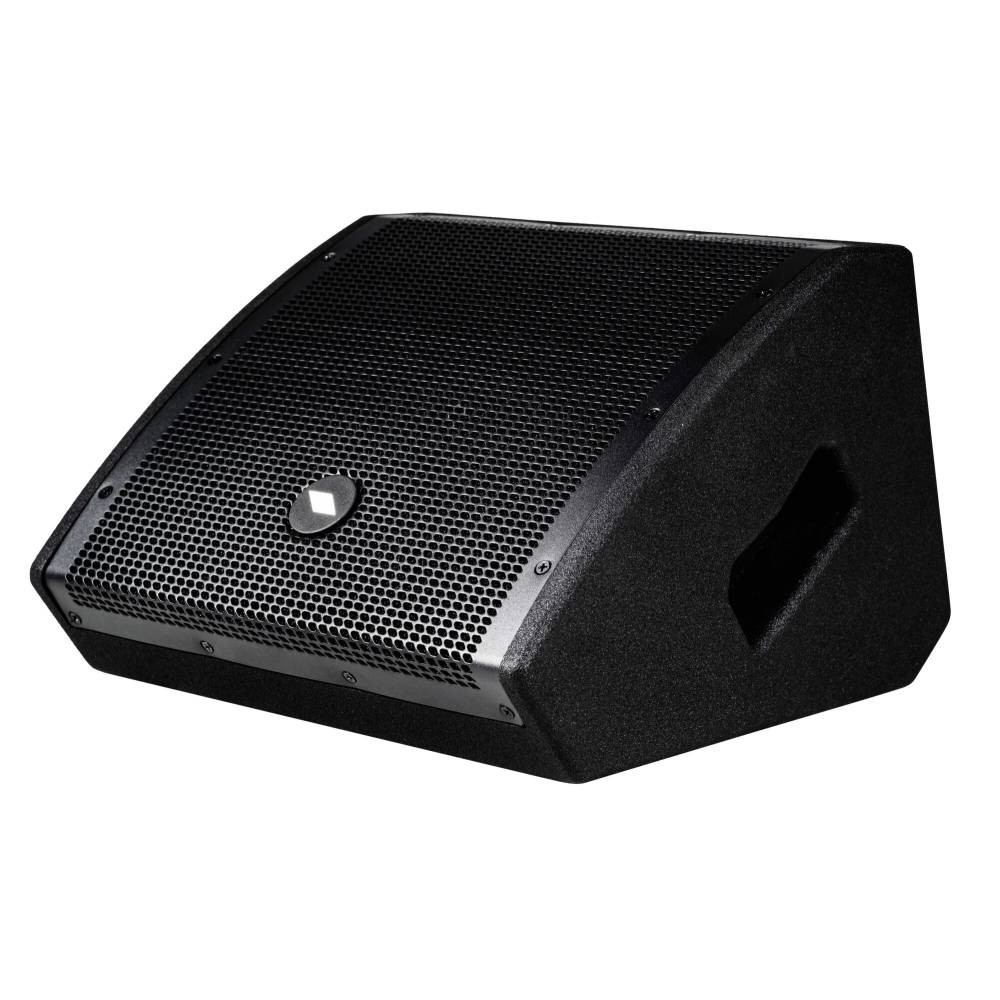

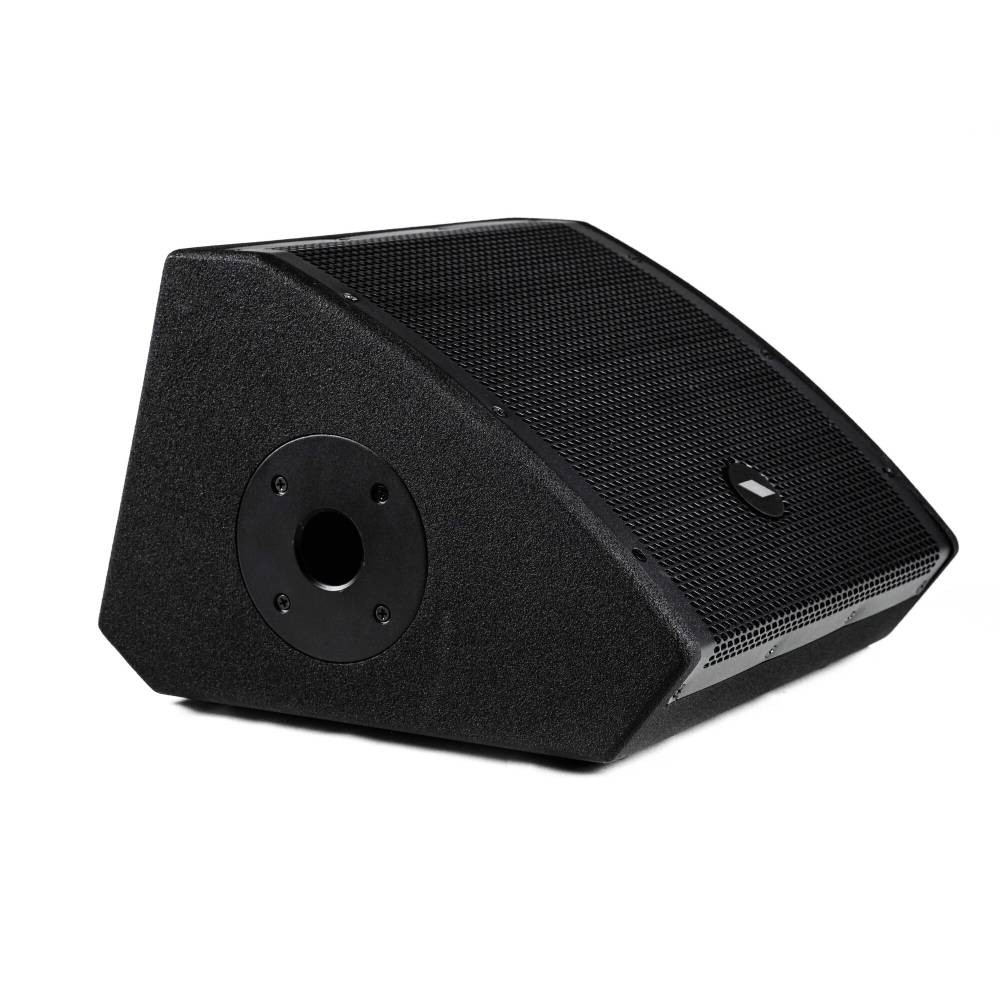

Proel WX8A Active 2-way Coaxial Stage Monitor

Proel WX8A Active 2-way Coaxial Stage Monitor

31,020.00

WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.

in stock ready to shipIn Stock & Ready to ship
View0 views Today
enquireEnquire
phone
9940046621
true in-store experience

A True In-store Experience

Get expert advice on choosing the right instrument.

Talk to our product expert at
9940046621
9940046621
Reasons to choose us
collectionsSecured shipping
collections24/7 expert service
collectionsGenuine products
collectionsStandard warranty

Product Description

The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.
  • 1” compression driver with 1” VC.
  • 8” woofer with 2” VC.
  • 500 W total power.
  • Class D power amplifier with SMPS.
  • Dual LIMITER circuit.

overstockWant to sell yours?

List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price

Features
System type2-way coaxial vented stage monitor
Low Frequency Device8” woofer with 2"VC
High Frequency Device1” compression driver with 1"VC
Angular Coverage60°
Frequency response80 Hz - 20 kHz
Max SPL at 1mt (peak)122 dB
Amplifier Continuous Power250W CLASS D with SMPS
Input Impedance30 kohm balanced, 15 kohm unbalanced
Input Sensitivity-10 dBu

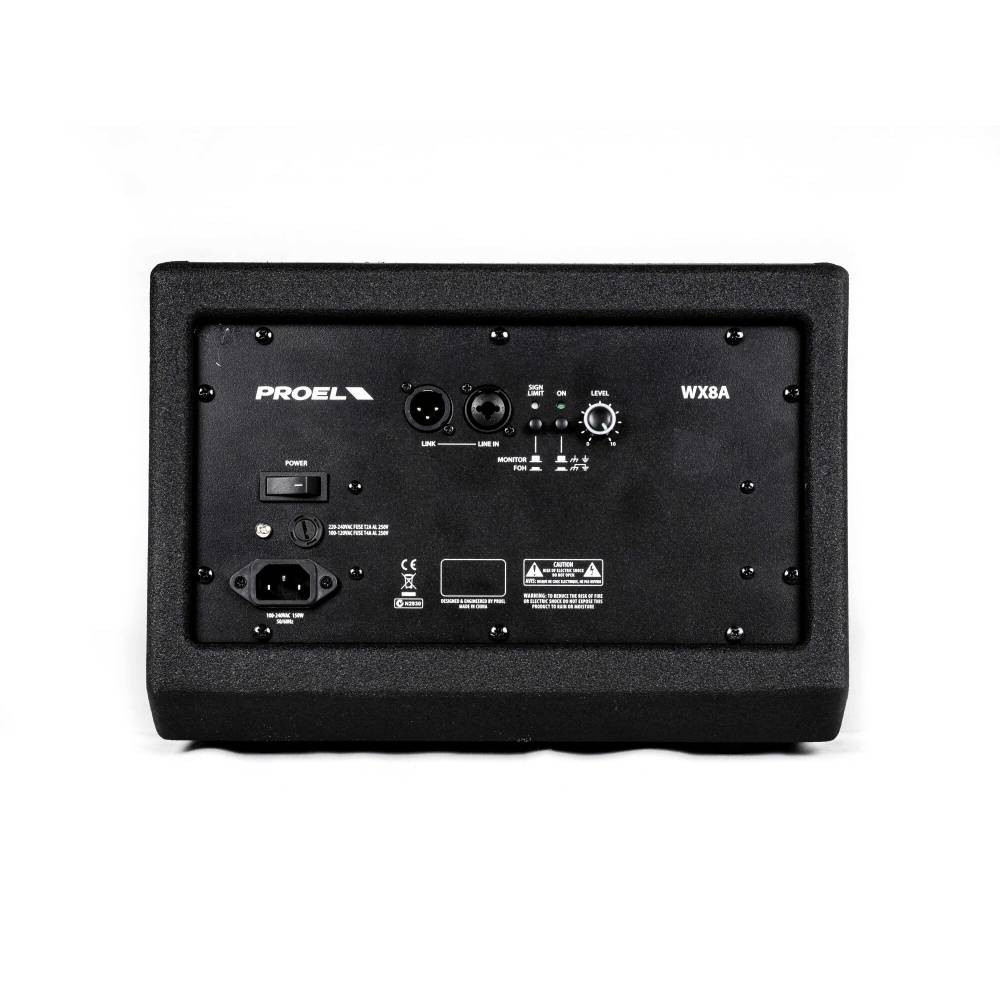

ControlsLEVEL, PRESET selector (MONITOR, FOH), GND lift
ConnectorsINPUT: COMBO (XLR-F/JACK), LINK: XLR-M
Power Supply230 VAC or 115 VAC - 50/60 Hz
Rated Consumption*200 W
ConstructionMDF with black anti-scratch polyurethane paint
Pole Adapter1 x side
Handles1 x side
Monitor taper36°
Weight8 kg (17.6 lb)
Dimensions (W x H x D)325x336x233 mm
;
