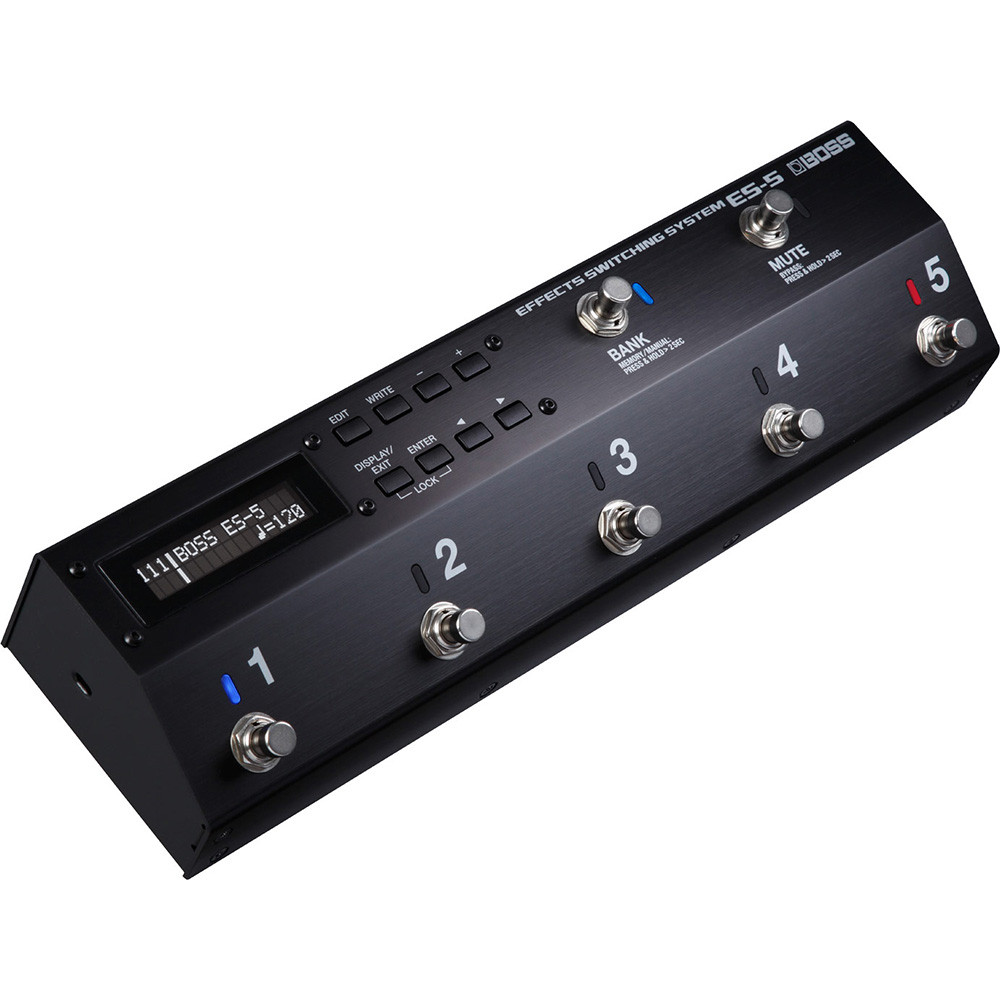

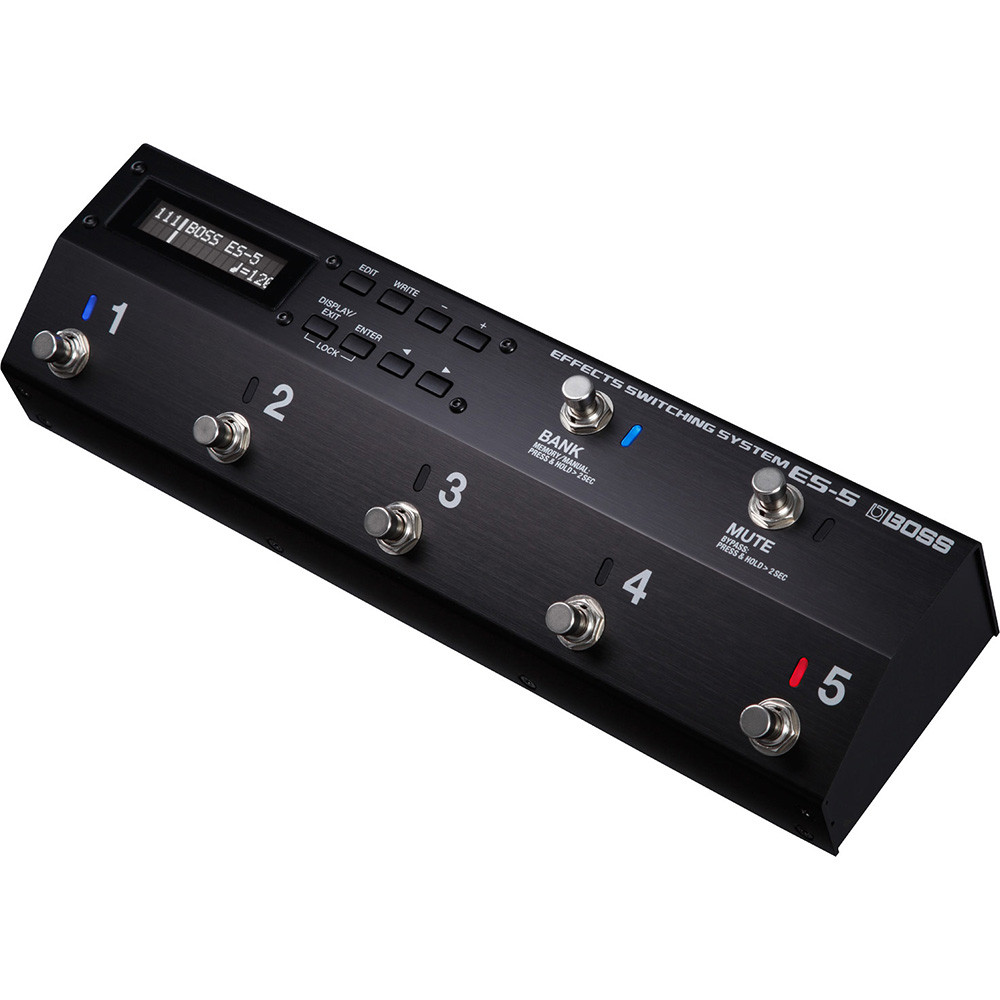

Roland ES-5 Effects Switching System

The Roland ES-5 Effects Switching System provides flexible routing, MIDI control, and preset recall, perfect for professional pedalboard management.


A True In-store Experience
Get expert advice on choosing the right instrument.
Product Description

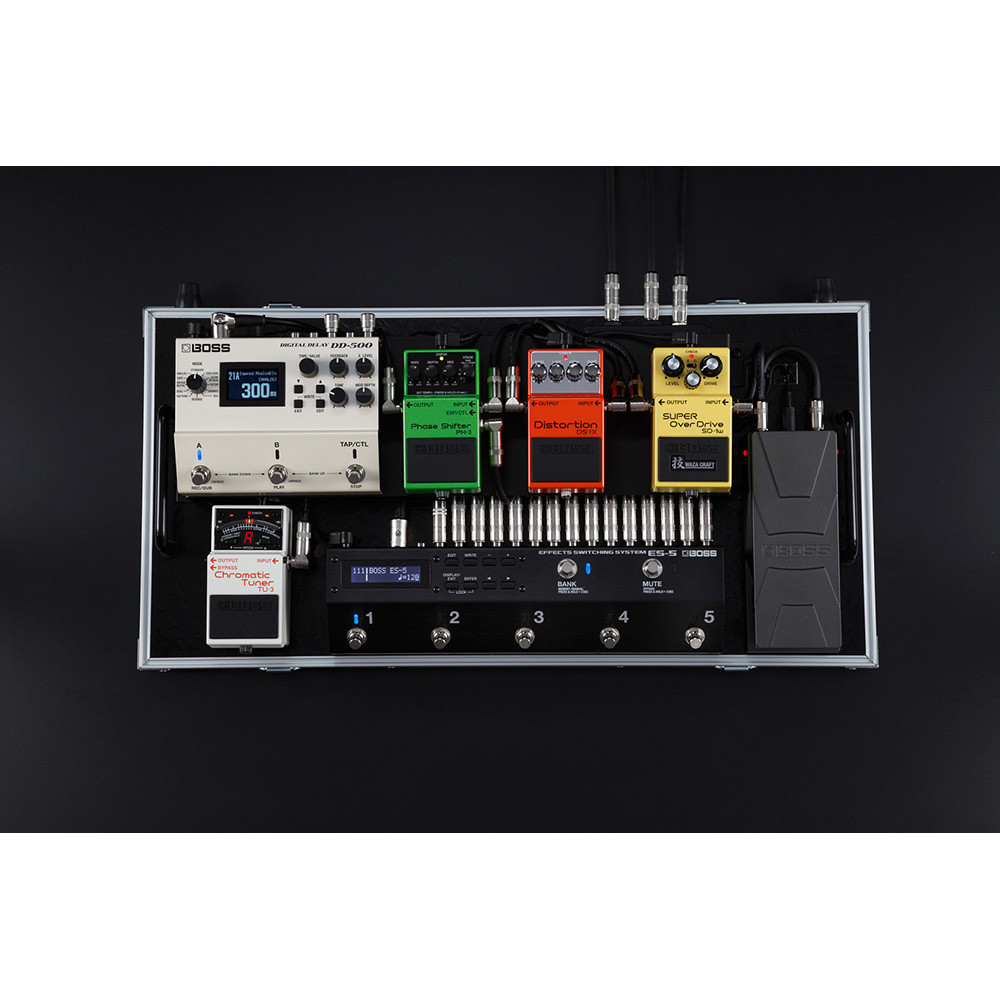

The Roland ES-5 Effects Switching System is a versatile, programmable loop switcher, designed for seamless pedalboard integration. Featuring five independent loops, the ES-5 lets players arrange and recall effect chains with ease, offering unmatched flexibility for live and studio performances.\
With 99 user-programmable presets, the ES-5 allows guitarists to switch between custom pedal combinations instantly. MIDI functionality enables external gear control, while buffer options ensure a pure, unaltered signal path. Its compact design makes it an excellent choice for pedalboard optimization.
For musicians looking for precision switching and professional-level control, the Roland ES-5 delivers intuitive operation, robust build quality, and ultimate flexibility.
- Programmable switching system with five loops.
- Analog circuit design to protect your pure tone.
- Unprecedented routing flexibility with the ability to change the routing order and create a parallel effect chain.
- External control parameters such as delay time can be saved for each patch.
- Buffers can be turned on/off individually for the input and output and stored in each patch; level variability for output buffer.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
Features | |
Modes | Memory mode/Manual mode |
Loops | 5 |
Patch Memory | 200 |
Nominal Input Level | INPUT, RETURN 1--5: -10 dBu |
Maximum Input Level | INPUT, RETURN 1--5: +13 dBu |
Input Impedance | INPUT: 1 M ohm (Buffer: On) |
Nominal Output Level | SEND 1--5, OUTPUT, TUNER: -10 dBu |
Maximum Output Level | SEND 1--5, OUTPUT, TUNER: +13 dBu |
Output Impedance | OUTPUT, TUNER: 1 k ohm (Mixer: On) |
Recommended Load Impedance | 10 k ohms or greater |

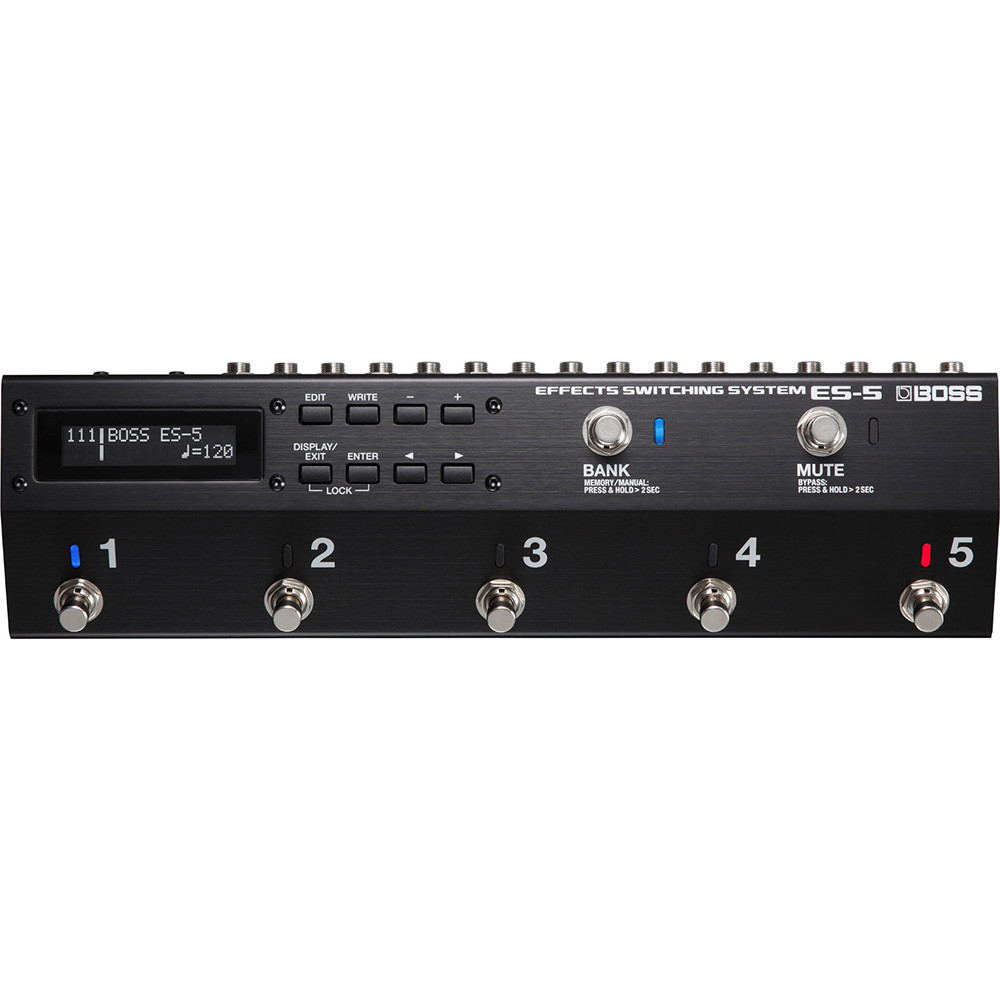

Controls | NUMBER 1--5 switch, BANK switch, MUTE switch; EDIT button, WRITE button, - button, + button, DISPLAY/EXIT button, ENTER button, Cursor left button, Cursor right button |
Display | 16 characters, 2 lines (backlit LCD) |
Indicator | NUMBER 1--5 indicator, BANK (MEMORY/MANUAL) indicator, MUTE indicator |

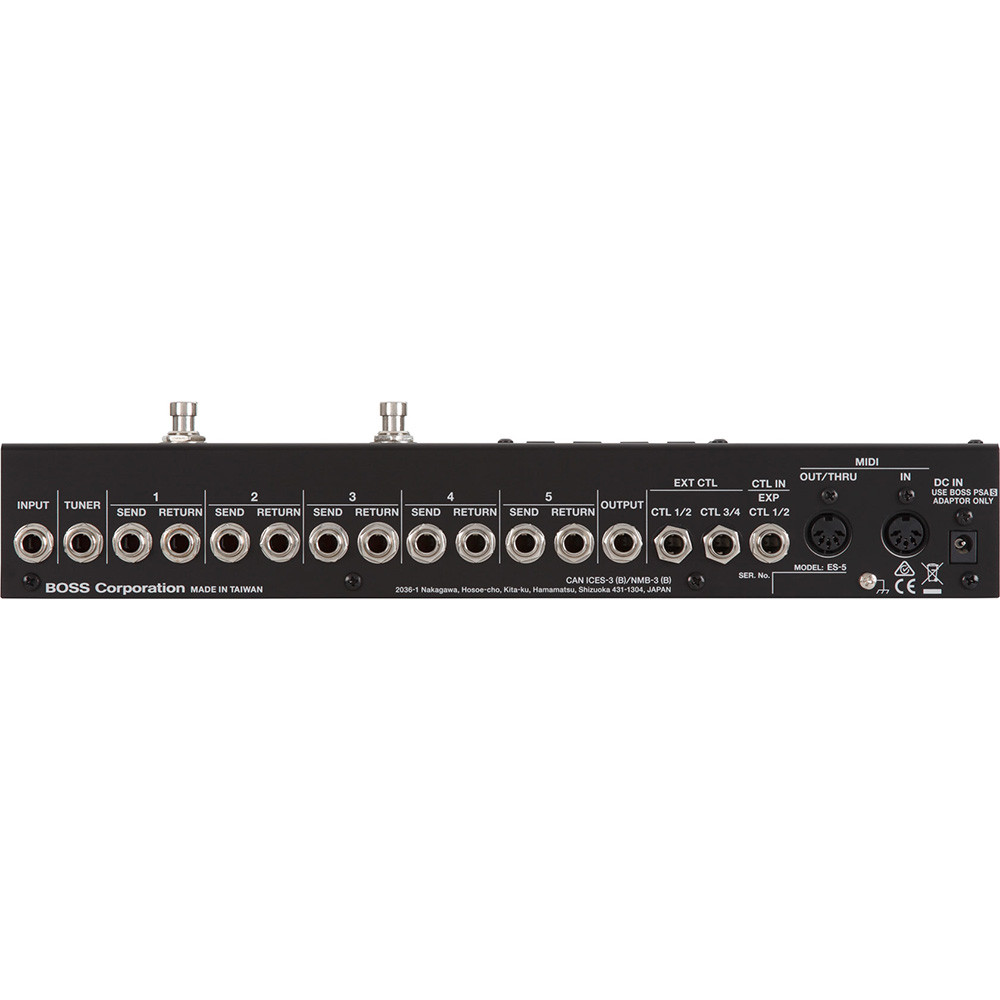

Connectors | INPUT jack, SEND 1--5 jacks, RETURN 1--5 jacks, OUTPUT jack, TUNER jack: 1/4-inch phone type; EXT CTL CTL 1/2, CTL 3/4 jacks, CTL IN EXP CTL 1/2 jack: 1/4-inch TRS phone type; MIDI connectors (IN, OUT/THRU); DC IN jack |
Power Supply | AC adaptor |
Current Draw | 125 mA |
Accessories | AC adaptor; Rubber foot x 4; Owner's manual; Leaflet "USING THE UNIT SAFELY" |
Options (sold separately) | Footswitch: FS-5U, FS-5L, FS-6, FS-7; Expression pedal: FV-500L, FV-500H, Roland EV-5 |
Width | 337 mm 13-5/16 inches |
Depth | 97 mm 3-7/8 inches |
Height | 68 mm 2-11/16 inches |
Weight | 1.3 kg 2 lbs 14 oz. |
