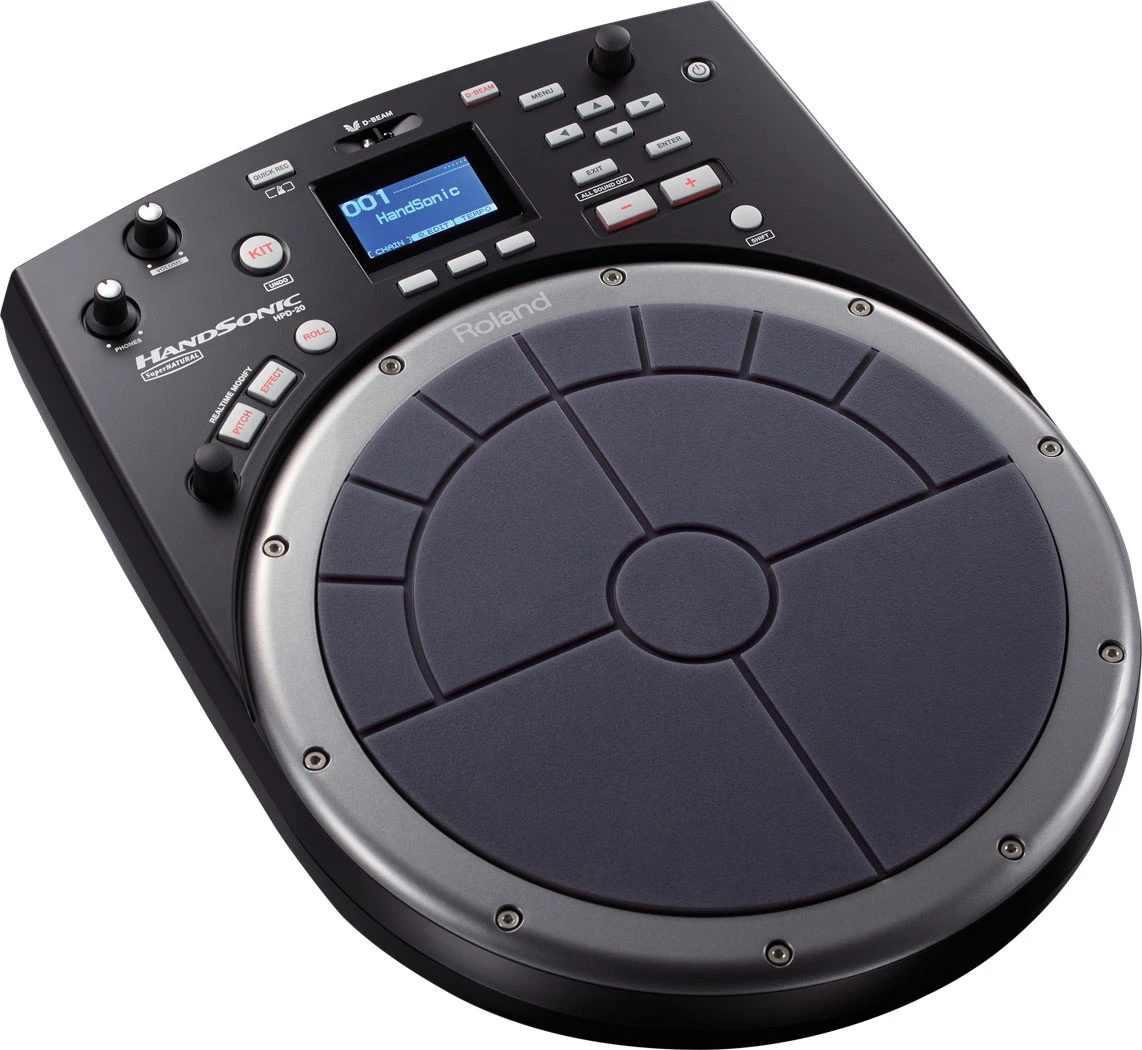

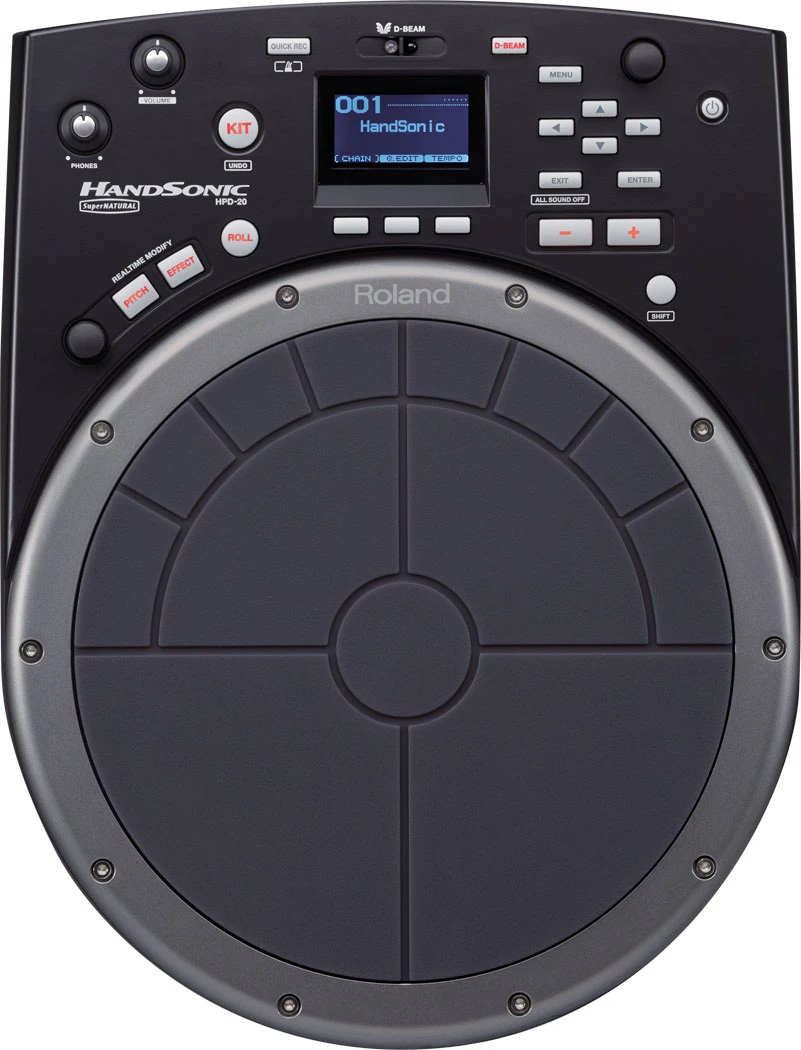

Roland HandSonic HPD-20 Digital Hand Percussion Controller
The Roland HandSonic HPD-20 Digital Hand Percussion Controller features 13 velocity-sensitive pads, the SuperNATURAL sound engine with 850 instruments, 500 user WAV import slots, real-time D-BEAM control, and USB audio/MIDI.
Product Description
The Roland HandSonic HPD-20 Digital Hand Percussion Controller is a flagship electronic hand percussion instrument built for touring percussionists, drummers, and electronic music producers. Its 13 velocity- and pressure-sensitive pads translate natural hand techniques—including fingertip taps, palm strikes, and pressure dampening—with extraordinary nuance.
Driven by Roland's SuperNATURAL sound engine, the HPD-20 comes pre-loaded with 850 global acoustic and electronic percussion instruments plus room for 500 user WAV samples imported via USB flash memory, enhanced by three independent multi-effects engines.
Complete with an infrared D-BEAM controller, Quick Rec audio/MIDI capture, external trigger inputs, and USB audio/MIDI, the Roland HandSonic HPD-20 unlocks limitless rhythmic expression.
- 13 Velocity- & Pressure-Sensitive Silicone Pads: Responds authentically to fingertip rolls, palm slaps, and natural hand-muting/pitch-bend techniques.
- SuperNATURAL Sound Engine with 850 Instruments: Packed with expressive congas, tablas, cajons, djembes, chimes, orchestral percussion, and electronic drums.
- User WAV Sample Import (Up to 500 Sounds): Load custom WAV audio via USB flash drive and layer or assign samples across any of the 13 pads.
- Real-Time D-BEAM Controller & Quick Rec Looper: Wave your hand over the infrared D-BEAM to modulate pitch, filters, and effects or capture ideas instantly.

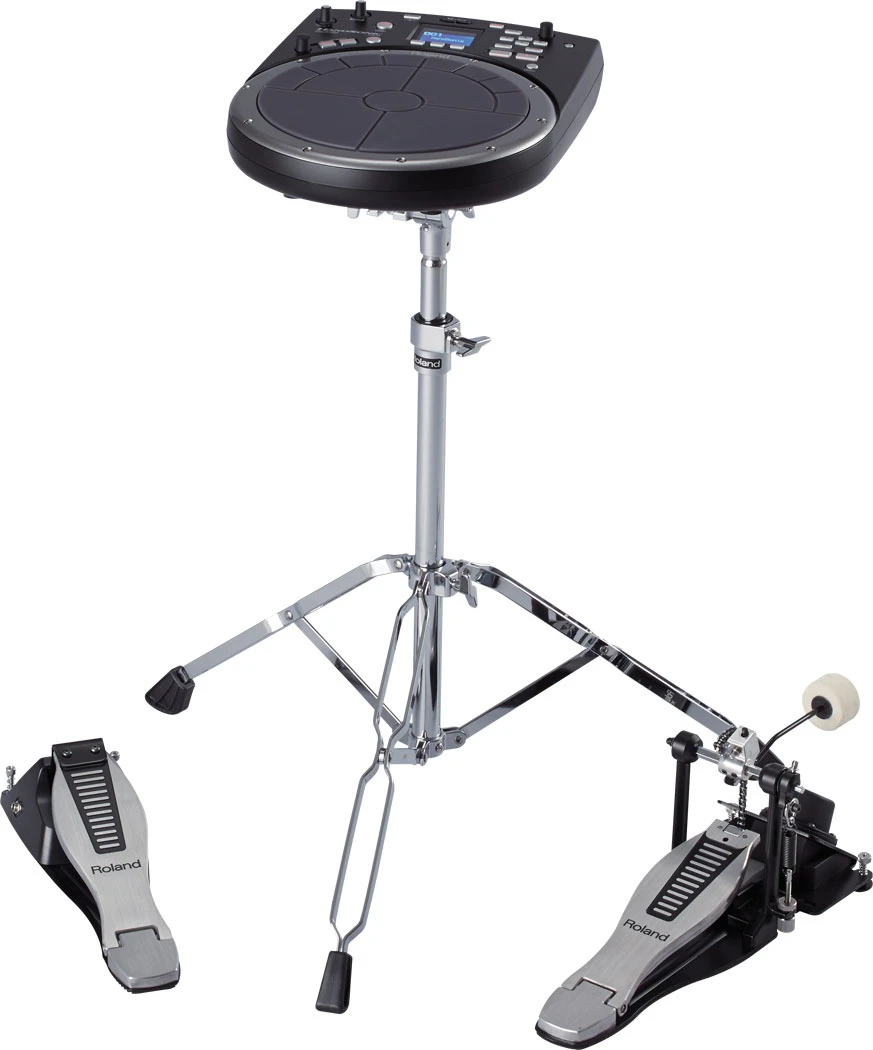

- USB Audio/MIDI & External Trigger/Hi-Hat Inputs: Connects directly to DAWs and accepts external kick pads or hi-hat controllers for expanded rigs.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Specifications | |
| Pad | 10 inches, 13 sections, Pressure-Sensitive |
| Kits | 200 |
| Instruments | 850 |
| Kit Chains | 15 chains (50 steps per chain) |
| Number Of User Instruments | Maximum 500 (includes factory preloaded user instruments) |
| Sound Length (total | 12 minutes in mono, 6 minutes in stereo |
| File Format | WAV (44.1 kHz, 16 bits) |
| Multi Effects | 3 systems, 25 types |
| Ambience | 10 types |
| Resolution | 480 ticks per quarter note |
| Recording Method | Realtime |
| Maximum Note Storage | approx. 30,000 notes |
| Export File Format | WAV (44.1 kHz, 16 bits) |
| Controllers | D-BEAM | Realtime Modify knob |
| Display | Graphic LCD 64 x 128 dots |

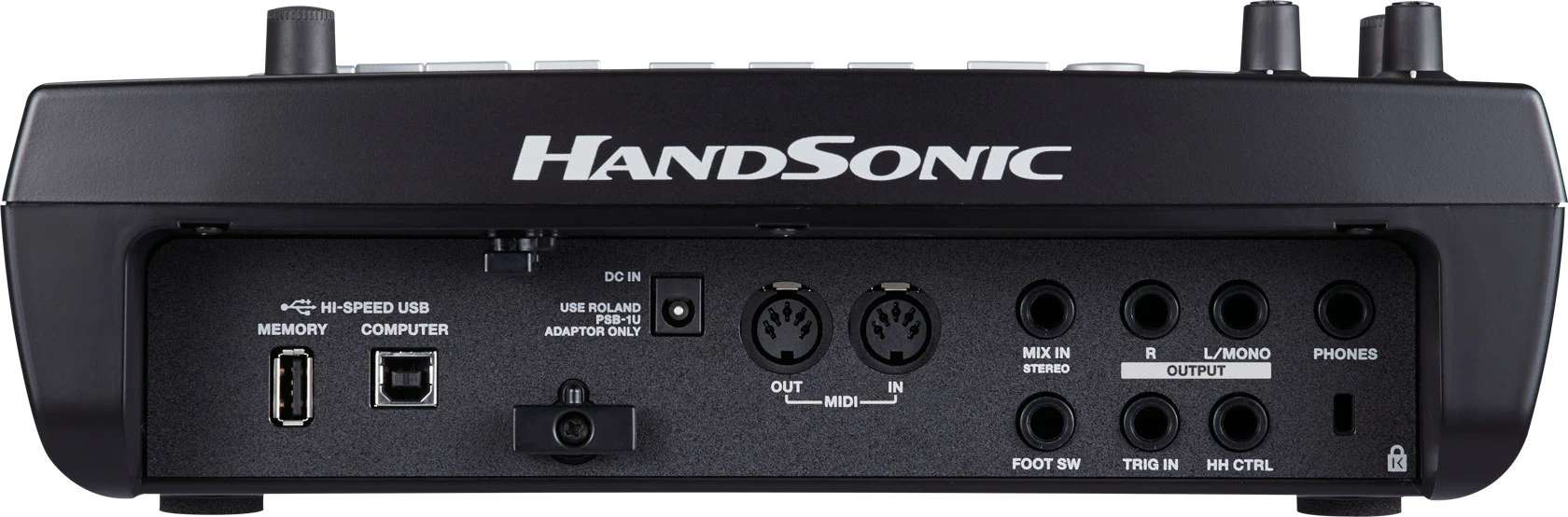

| OUTPUT (L/MONO, R) Jacks | 1/4-inch phone type |
| PHONES Jack | Stereo 1/4-inch phone type |
| MIX IN Jack | Stereo 1/4-inch phone type |
| TRIG IN Jack | 1/4-inch TRS phone type |
| HH CTRL Jack | 1/4-inch TRS phone type |
| FOOT SW Jack | 1/4-inch TRS phone type |
| USB COMPUTER Port | USB Type B (Audio, MIDI) |
| USB MEMORY Port | USB Type A |
| Interface | Hi-Speed USB (USB Audio, USB MIDI, USB Flash Memory) |
| Power Supply | AC Adaptor |
| Current Draw | 700 mA |
| Accessories | Owner's manual | AC adaptor |
| Size and Weight | |
| Width | 311 mm | 12-1/4 inches |
| Depth | 404 mm | 15-15/16 inches |
| Height | 102 mm | 4-1/16 inches |
| Weight | Weight2.4 kg | 5 lbs. 5 oz. |
