Roland JX-08 Sound Module
₹45,514.59
In 1985, Roland’s innovative JX-8P took hybrid synthesis a step further with a compelling new analog-digital voice. The instrument was instantly embraced by top session players, who forever embedded its warm pads, shimmery chorus.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
In 1985, Roland’s innovative JX-8P took hybrid synthesis a step further with a compelling new analog-digital voice. The instrument was instantly embraced by top session players, who forever embedded its warm pads, shimmery chorus, and crystalline textures into the era’s most popular tracks. The JX-08 reintroduces the unique sound of this sought-after classic in stunning detail, coupled with powerful new effects, a polyphonic sequencer, and more. And to enhance your creative flow, there’s a full panel of hands-on controls derived from the companion PG-800 programmer unit for the original hardware.
- Authentic JX-8P sound and behavior; PG-800 programmer functions included; Includes 32 presets from the original JX-8P plus 111 new presets; 17 new effect types including JUNO-106 chorus, SDD-320 reverb, lo-fi comp, super filter, pitch shifter, and more; Two-part, 64-step, eight-note (per part) polyphonic sequencer with motion recording, random pattern generator, and memory for 128 patterns
Product Specifications
| Features | |
| User Memory | Sound Patch: 256; Pattern: 128 |
| Effects | Chorus: 3; Delay: 4; Overdrive; FUZZ; Drive; Bit crusher; LOFI Comp; Phaser: 2; Filter; Pitch Shifter: 2; |
| Step Sequencer | 2 part; 64 steps; 8 notes per part (Polyphonic) |
| Display | 7 segments, 4 characters (LED) |

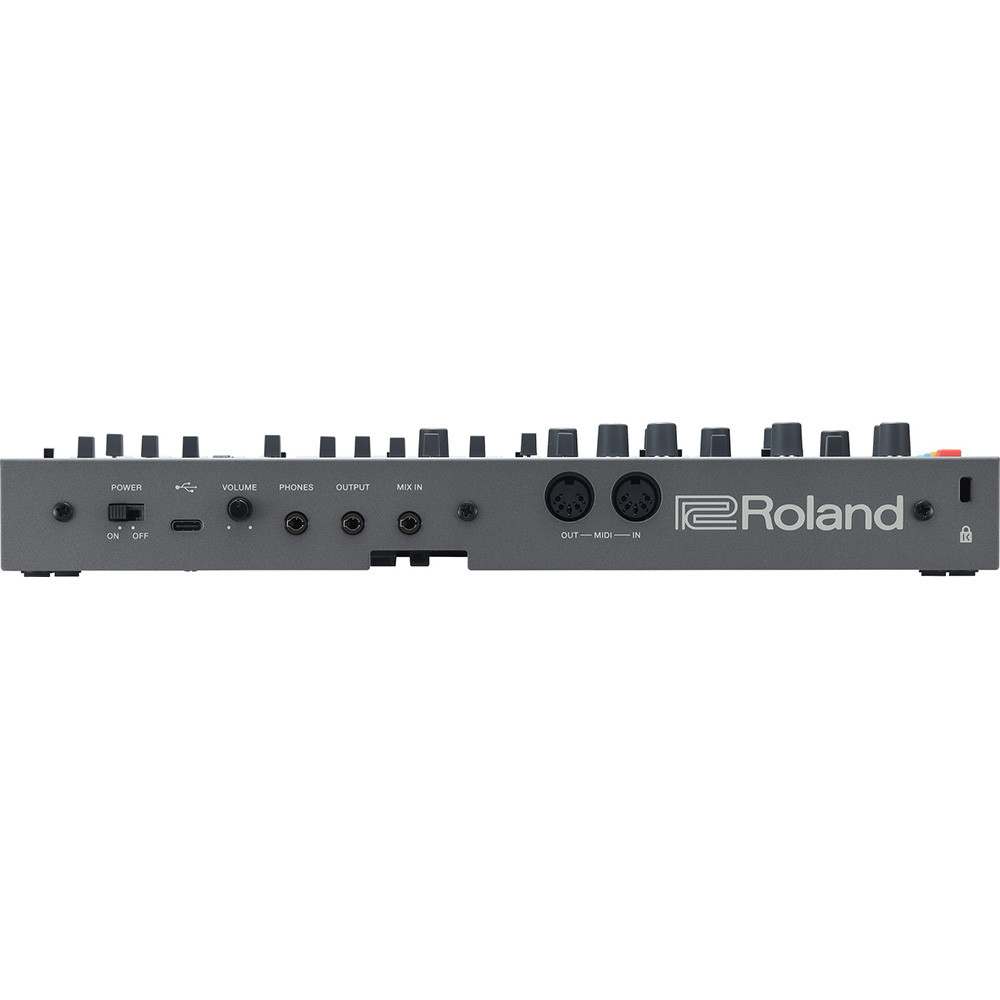

| Connectors | EXT CLOCK IN jack: Mono miniature phone type; PHONES jack: Stereo miniature phone type; OUTPUT jack: Stereo miniature phone type; MIX IN jack: Stereo miniature phone type; MIDI (IN, OUT) connectors; USB port: USB Type-C(R) (Audio, MIDI) |
| Power Supply | Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4; USB bus power |
| Current Draw | 500 mA (USB bus power) |
| Expected battery life under continuous use | Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.) |
| Accessories | Quick Start; Leaflet "USING THE UNIT SAFELY"; Alkaline battery (AA, LR6) x 4 |
| Options (sold separately) | Keyboard unit: K-25m; Boutique Dock: DK-01 |
| Controllers | |
| Rear Panel | Power switch; VOLUME knob |
| LFO Section | RATE knob; DELAY TIME knob; WAVE FORM switch |
| DCO-1 Section | LFO slider; TUNE knob; RANGE switch; WAVE FORM switch |
| DCO-2 Section | LFO slider; TUNE knob; FINE TUNE knob; RANGE switch; WAVE FORM switch; CROSS MOD knob; DCO-1 ENV knob; DCO-2 ENV knob; MODE switch |
| MIXER Section | DCO-1 slider; DCO-2 slider; ENV knob; MODE switch |
| VCF Section | HPF slider; CUTOFF FREQ slider; RES slider; LFO slider; KEY FOLLOW slider; ENV knob; MODE switch |
| VCA Section | LEVEL slider; MODE switch |
| ENVELOPE-1/2 Section | ENV SELECT 1, 2 buttons; ATTACK slider; DECAY slider; SUSTAIN slider; RELEASE slider; KEY FOLLOW switch |
| PORTAMENTO Section | MODE button; TIME knob |
| EFFECT Section | CHORUS 1, 2 buttons; REVERB button |
| ARPEGGIO button | NOTE button; SEQ button; START button; MENU button; VALUE knob; PART A, B buttons; DUAL button; SPLIT button; BANK 1(5)--4(8) buttons; NUMBER 1--8 buttons; MANUAL button |
| Size and Weight | |
| Width | 300 mm 11-13/16 inches |
| Depth | 128 mm 5-1/16 inches |
| Height | 47 mm 1-7/8 inches |
| Weight (including batteries) | 895 g 2 lbs |
