Roland

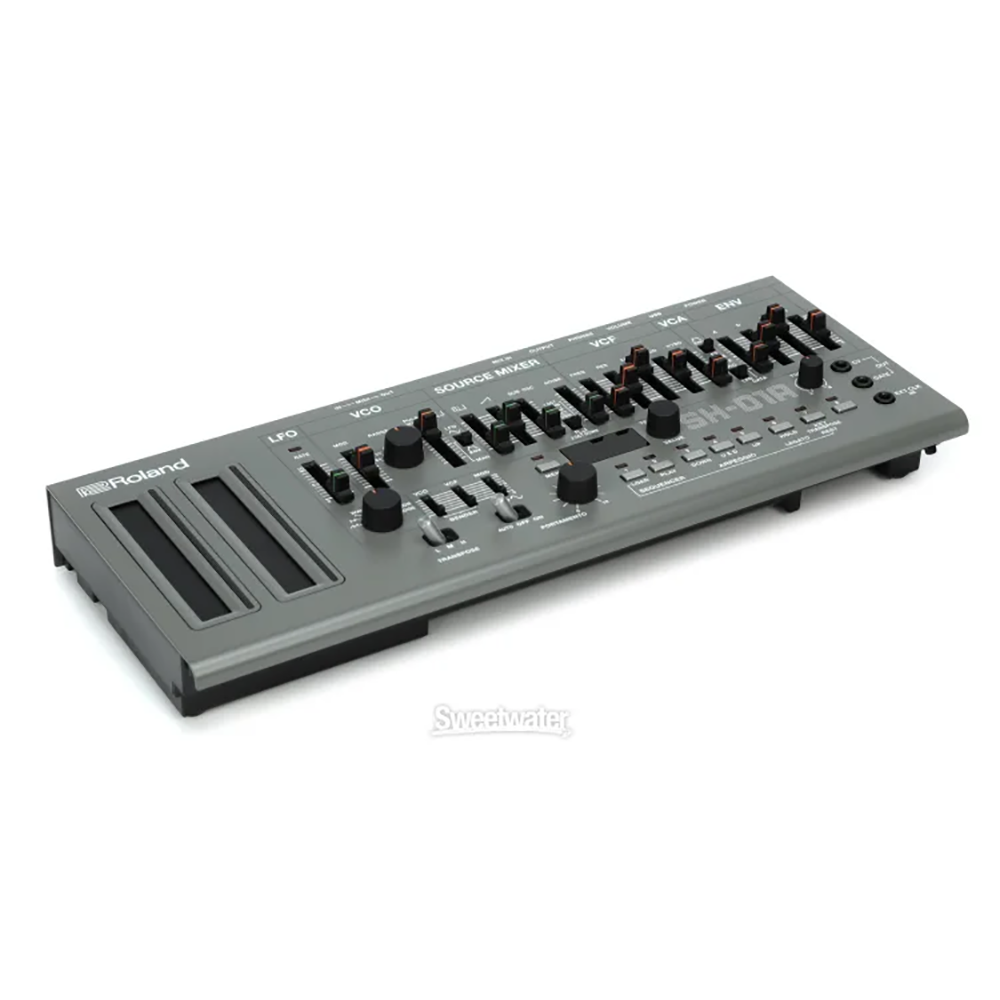

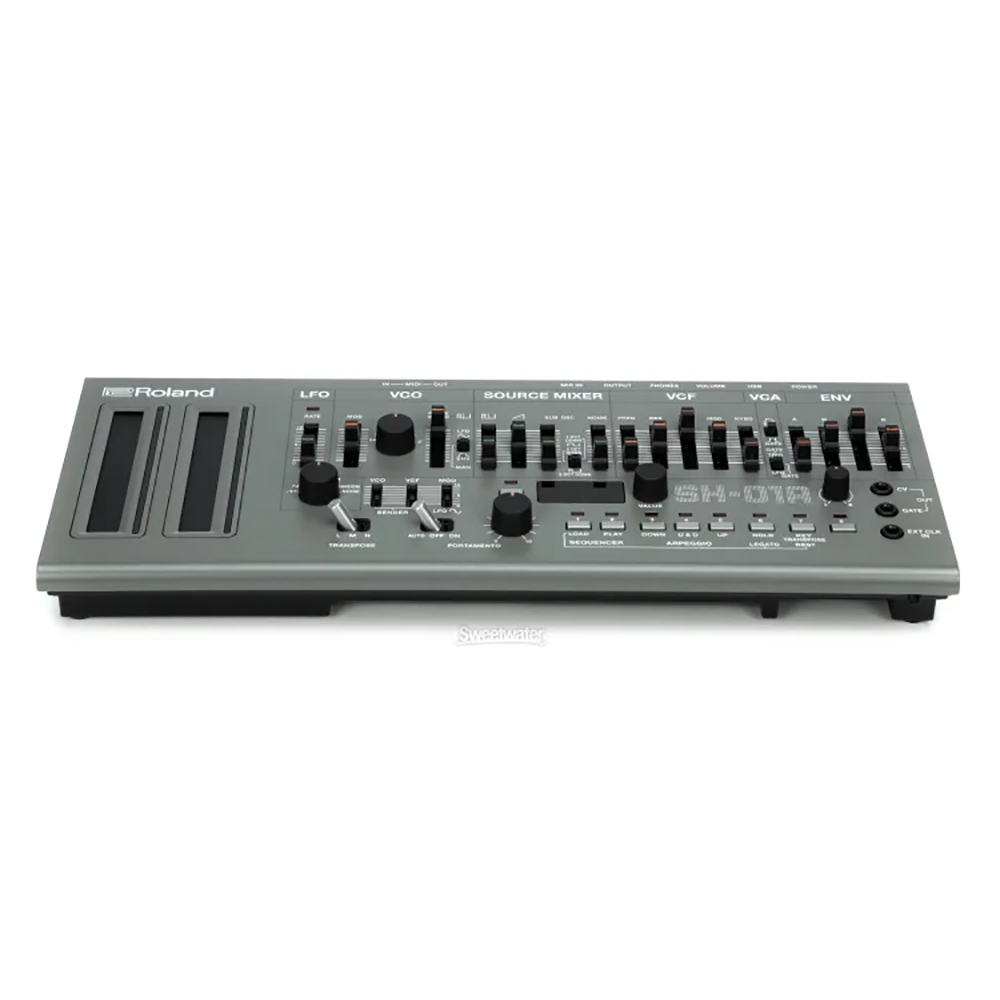

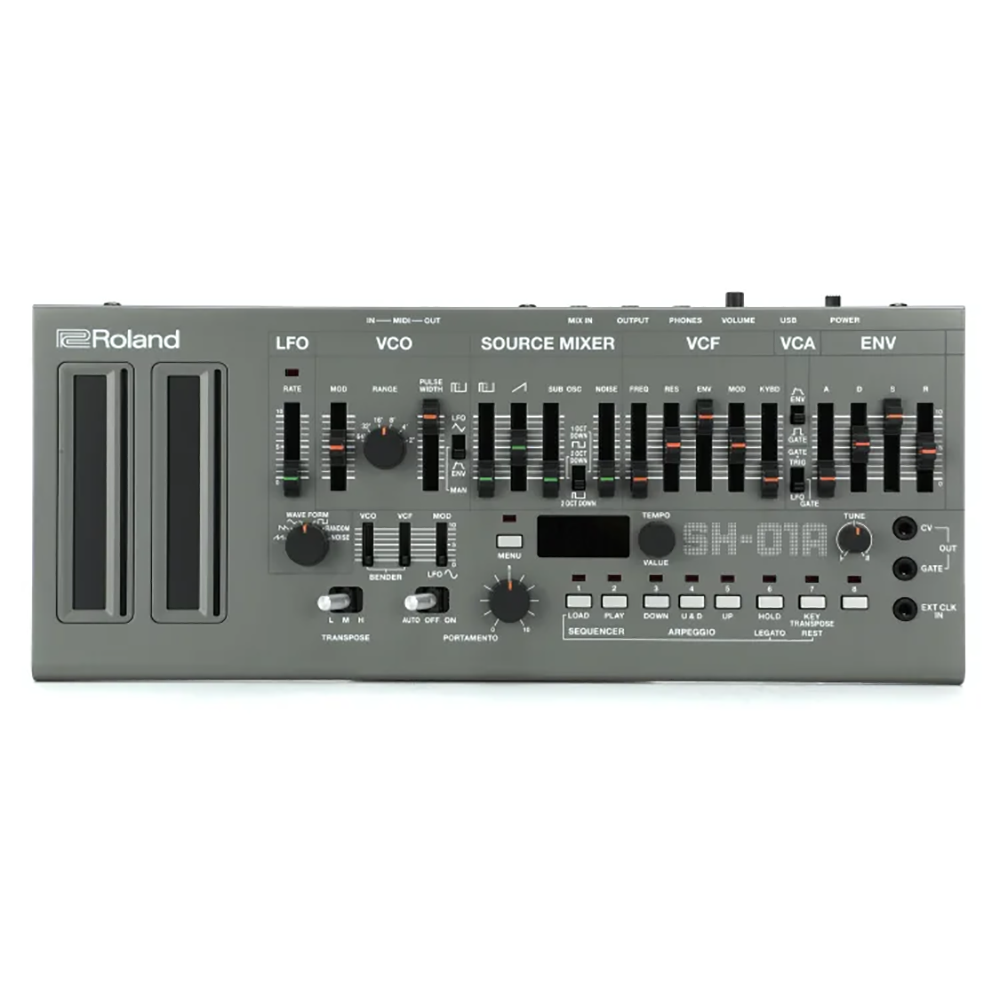

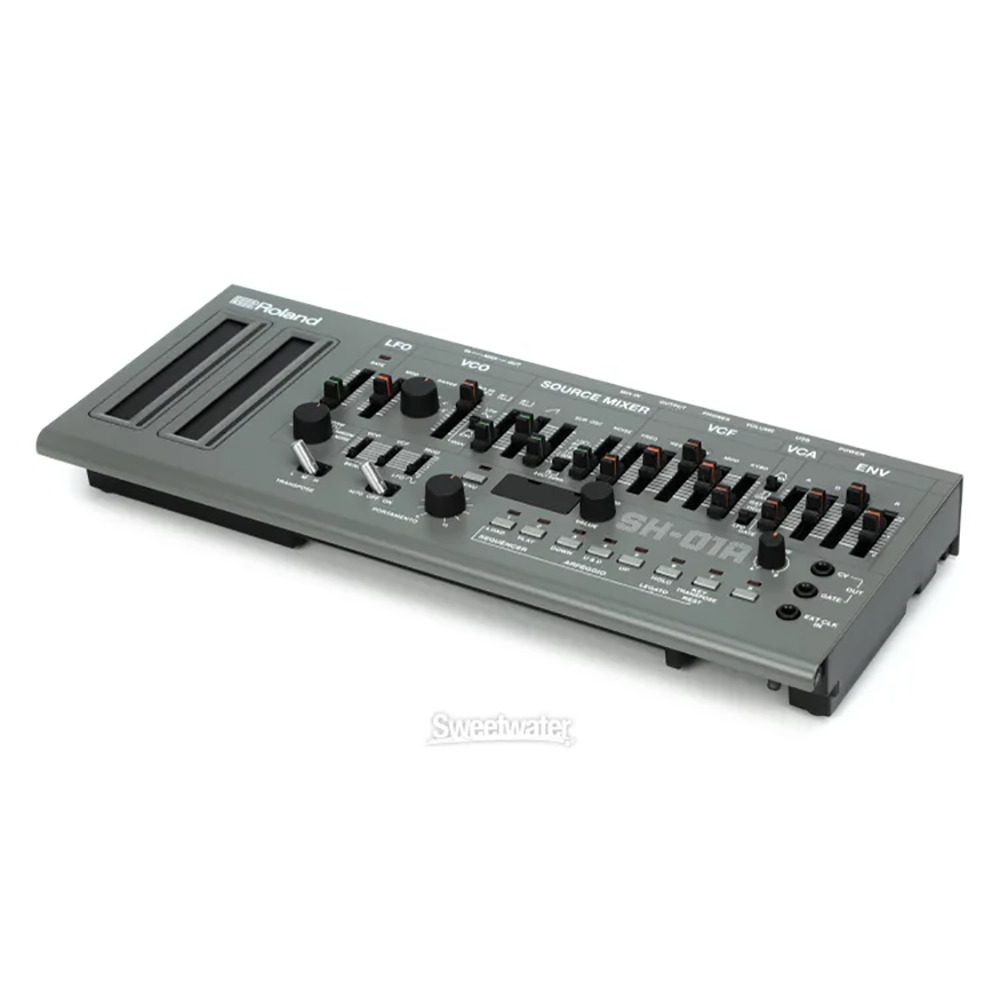

Roland SH-01A Boutique Series Synthesizer with Sequencer

54,738.00

The SH-01A reimagines Roland's venerable SH-101 synthesizer as a Boutique Series module. Just like the original, the SH-01A generates distinctive bass sounds and bubbly analog effects using a simple 1-VCO, 1-VCF, 1-VCA, 1-LFO design.

in stock ready to shipIn Stock & Ready to ship
View0 views Today
enquireEnquire
phone
9940046621
true in-store experience

A True In-store Experience

Get expert advice on choosing the right instrument.

Talk to our product expert at
9940046621
9940046621
Reasons to choose us
collectionsSecured shipping
collections24/7 expert service
collectionsGenuine products
collectionsStandard warranty

Product Description

The SH-01A reimagines Roland's venerable SH-101 synthesizer as a Boutique Series module. Just like the original, the SH-01A generates distinctive bass sounds and bubbly analog effects using a simple 1-VCO, 1-VCF, 1-VCA, 1-LFO design. But thanks to modern innovations, you can now perform full chords with 4-voice polyphony, greatly expanding your sound palette. And whether you craft a throbbing bass line, buzzing lead, or otherworldly sound effect, you can store up to 64 preset patches for instant recall. Complete with 100-note step sequencer, arpeggiator, and selectable advanced LFO, the SH-01A is a must-have for any synth enthusiast.
    Features
    Sound Generator SectionMaximum Polyphony: 4 voices
    Sound Generator SectionAssign Mode: MONO/UNISON/POLY/CHORD
    User MemorySound Patch: 64
    User MemorySequencer Pattern: 64
    ControllersVOLUME knob
    ControllersRibbon controllers C1, C2
    ControllersRATE indicator and slider
    ControllersWAVE FORM select knob
    ControllersMOD depth slider
    ControllersRANGE select knob
    ControllersPULSE WIDTH slider
    ControllersLFO/MAN/ENV select switch
    ControllersPULSE level slider
    ControllersSAW level slider
    ControllersSUB OSC level slider
    ControllersSUB OSC select slider
    ControllersNOISE level slider
    ControllersFREQ: cutoff frequency slider
    ControllersRES: resonance slider
    ControllersENV: envelope depth slider
    ControllersMOD: modulation depth slider
    ControllersKYBD: key follow slider
    ControllersENV/GATE select switch
    ControllersGATE+TRIG/GATE/LFO select switch
    ControllersA: attack time slider
    ControllersD: decay time slider
    ControllersS: sustain level slider
    ControllersR: release time slider
    ControllersTRANSPOSE switch (L/M/H)
    ControllersVCO BENDER sens slider
    ControllersVCF BENDER sens slider
    ControllersLFO MOD slider
    ControllersPORTAMENTO select switch (AUTO/OFF/ON)
    ControllersPORTAMENTO time knob
    ControllersMENU switch and indicator
    Controllers1/LOAD switch and indicator
    Controllers2/PLAY switch and indicator
    Controllers3/DOWN switch and indicator
    Controllers4/U&D switch and indicator
    Controllers5/UP switch and indicator
    Controllers6/HOLD switch and indicator
    Controllers7/KEY TRANSPOSE switch and indicator
    Controllers8 switch and indicator
    ControllersPower switch
    Step Sequencer100 steps
    Step Sequencer4 notes (Polyphonic)
    ArpeggioDOWN/U&D/UP
    Arpeggio1 OCT/2 OCT
    Display7 segments, 4 characters (LED)

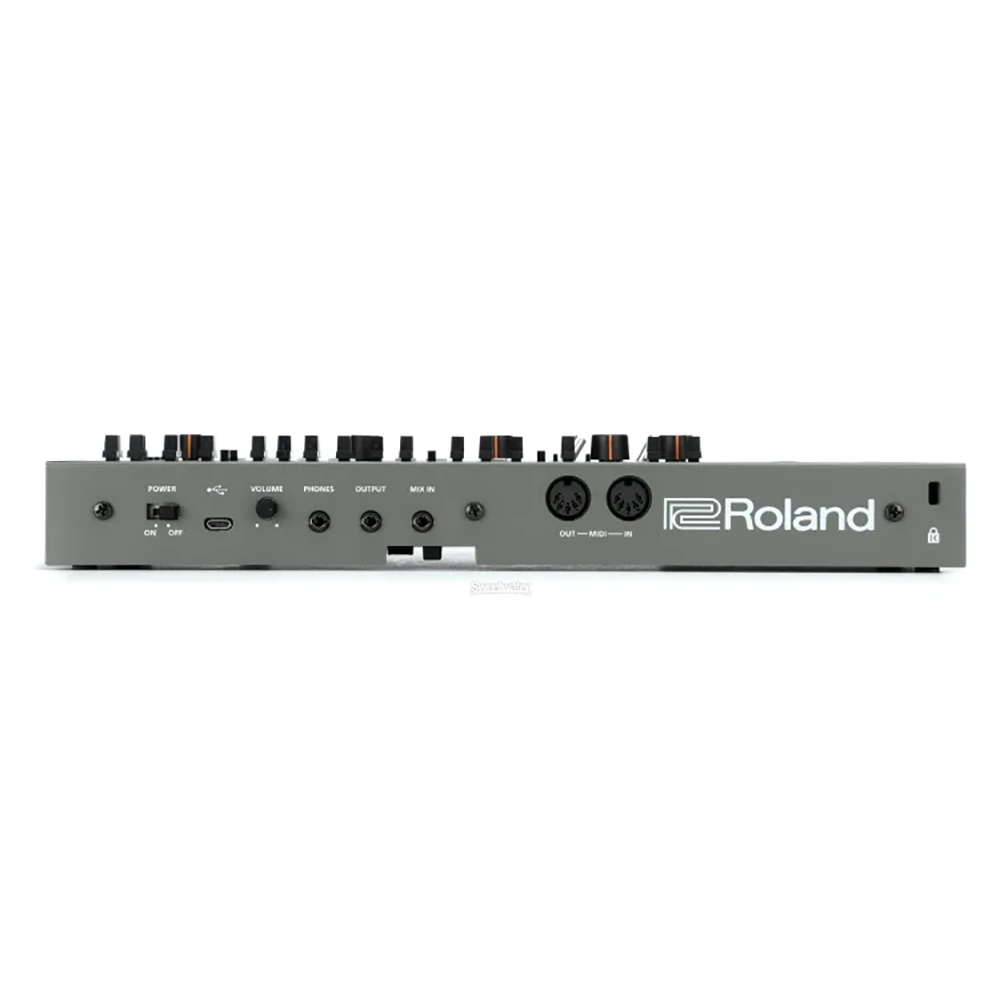

    ConnectorsCV OUT jack: mono miniature phone type
    ConnectorsGATE OUT jack: mono miniature phone type
    ConnectorsEXT CLK IN jack: mono miniature phone type
    ConnectorsPHONES jack: stereo miniature phone type
    ConnectorsOUTPUT jack: stereo miniature phone type
    ConnectorsMIX IN jack: stereo miniature phone type
    ConnectorsMIDI (IN, OUT) connectors
    ConnectorsUSB port: Micro-B type (Audio, MIDI)
    Power SupplyRechargeable Ni-MH battery (AA, HR6) x 4
    Power SupplyAlkaline battery (AA, LR6) x 4
    Power SupplyUSB bus power
    Current Draw500 mA (USB bus power)
    Expected battery life under continuous useRechargeable Ni-MH battery: Approx. 6 hours
    Expected battery life under continuous use* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
    AccessoriesOwner's Manual
    AccessoriesLeaflet "USING THE UNIT SAFELY"
    AccessoriesAlkaline battery (AA, LR6) x 4
    Options (sold separately)Keyboard Unit: K-25m
    Options (sold separately)Boutique Dock: DK-01
