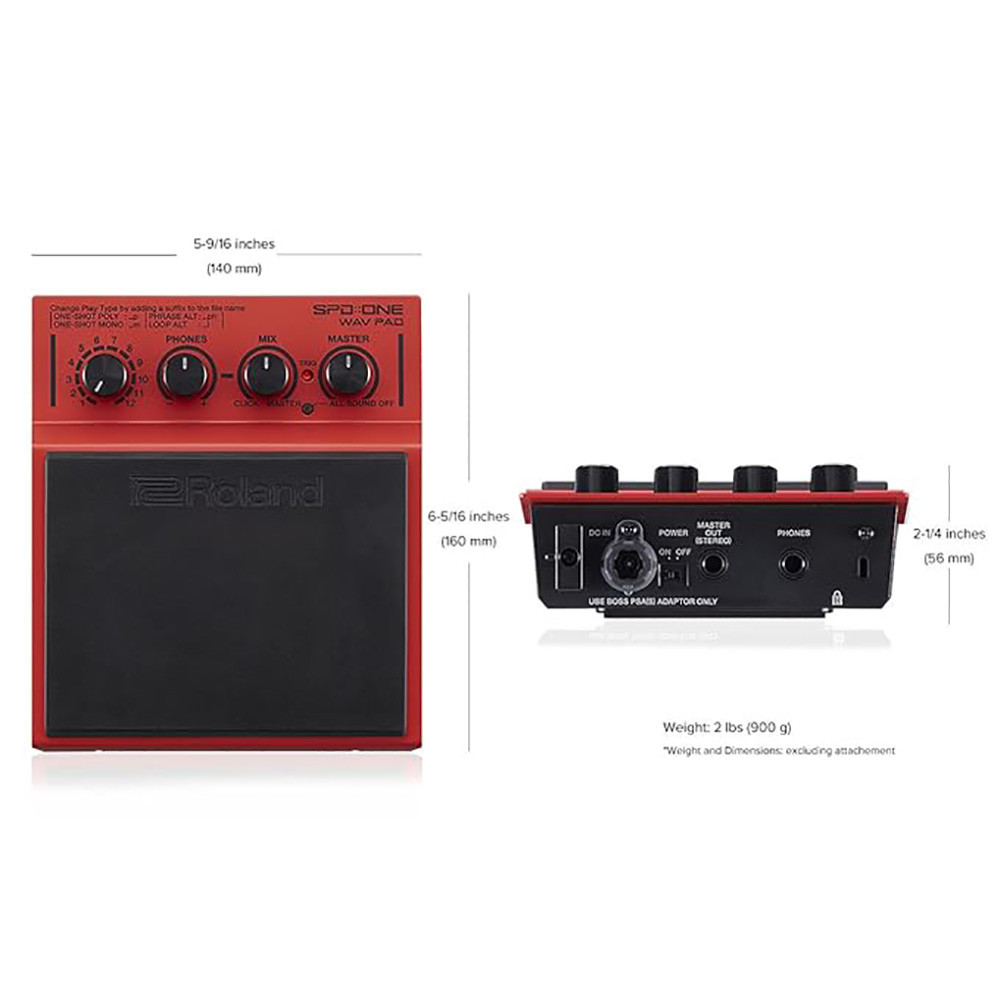

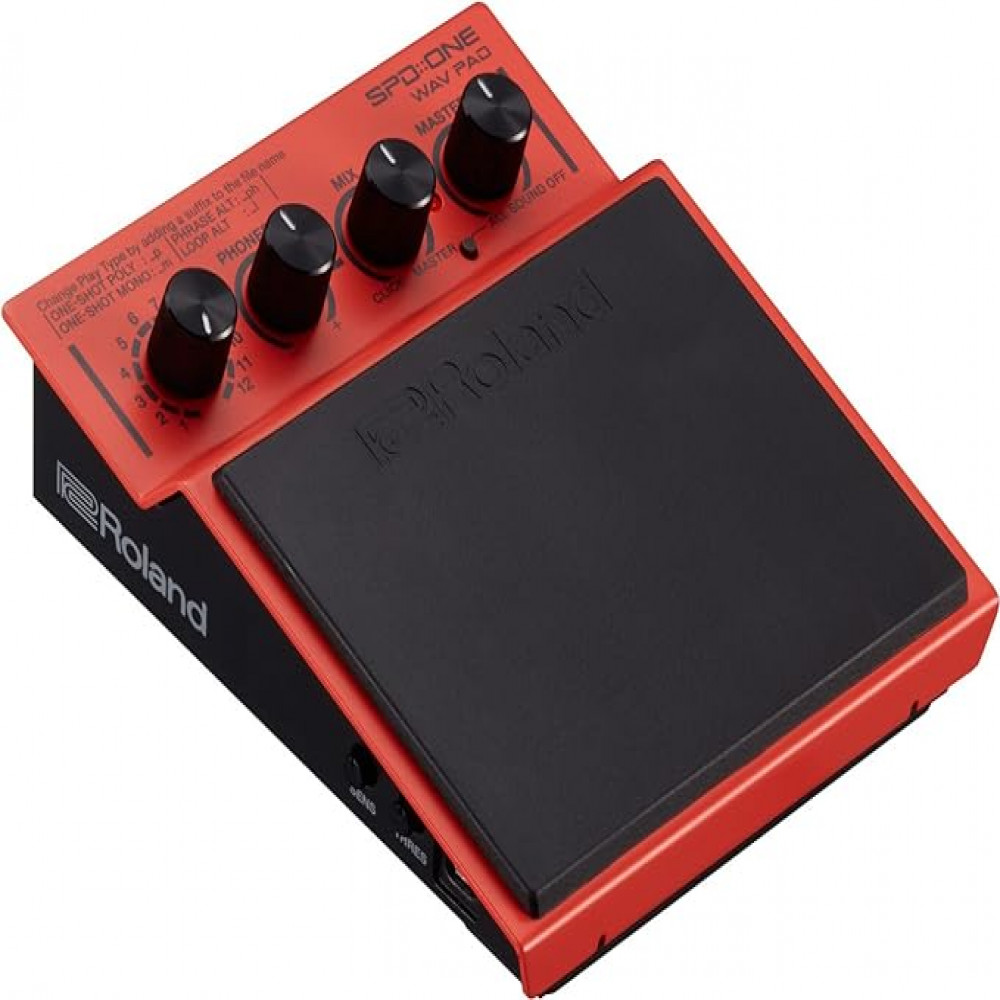

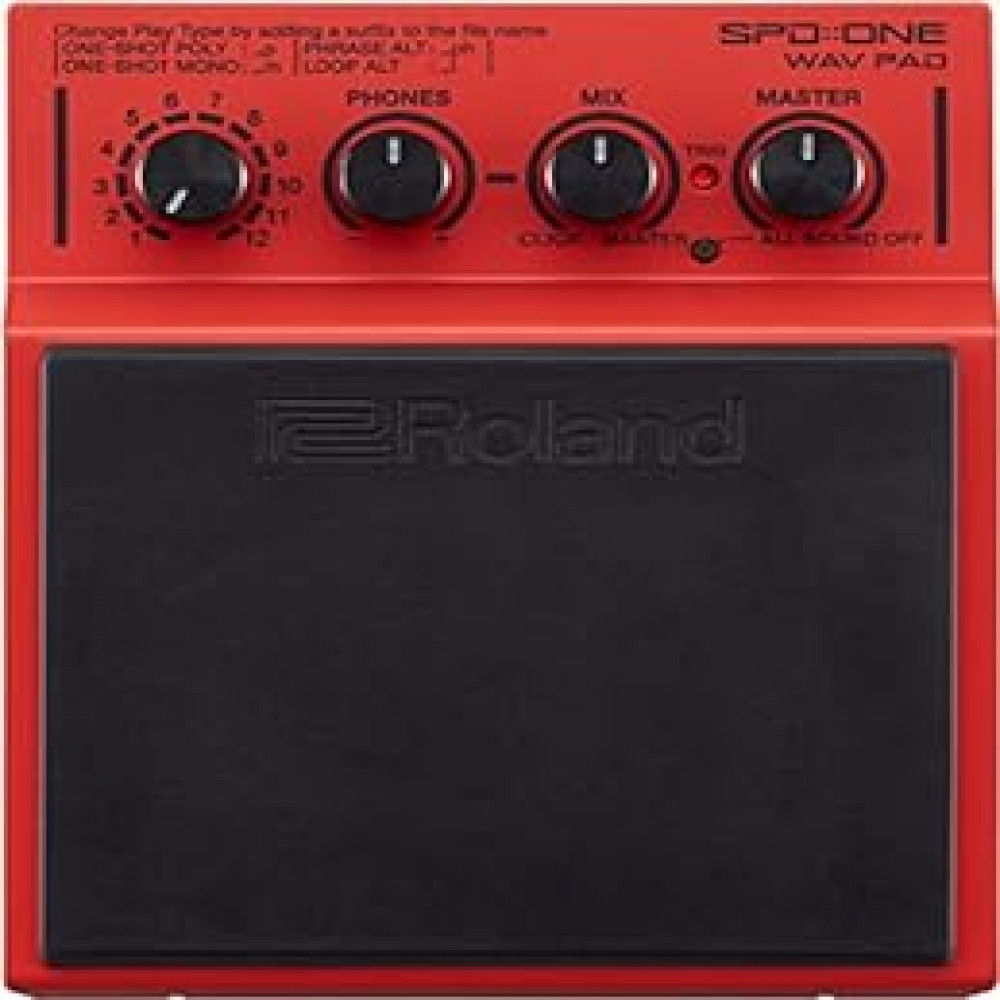

Roland SPD-1W One Wav Digital Percussion Pad

The Roland SPD-1W One Wav pad lets you import and trigger custom WAV samples with USB/MIDI connectivity for versatile performances.


A True In-store Experience
Get expert advice on choosing the right instrument.
Frequently Bought Together





Product Description
The Roland SPD-1W One Wav Digital Percussion Pad is an innovative sample-based percussion pad, allowing musicians to import and trigger custom WAV files. It supports up to 12 audio files, making it perfect for triggering backing tracks, loops, and custom percussion sounds.
With an intuitive interface, the SPD-1W enables easy sample playback with hands, sticks, or feet. It features adjustable sensitivity settings, ensuring consistent triggering in live and studio environments. The USB/MIDI functionality makes it an excellent addition to DAWs, drum kits, and live performance rigs.
Ideal for DJs, electronic musicians, drummers, and live performers, the Roland SPD-1W provides custom sound triggering in a compact, portable format.
- Light, compact design for easy portability, playable with drumsticks, hands, or feet.
- 22 onboard sounds including classic TR-808, TR-909, and hand clap sounds.
- USB WAV import for custom sound integration into 12 sound banks.
- Four knobs for easy sound editing and control.
- Power options: runs on 4 x AA batteries or AC adaptor.
- Main (mono) and headphones (stereo) outputs for flexible monitoring.
- USB-MIDI functionality for integration as a pad controller in music software.

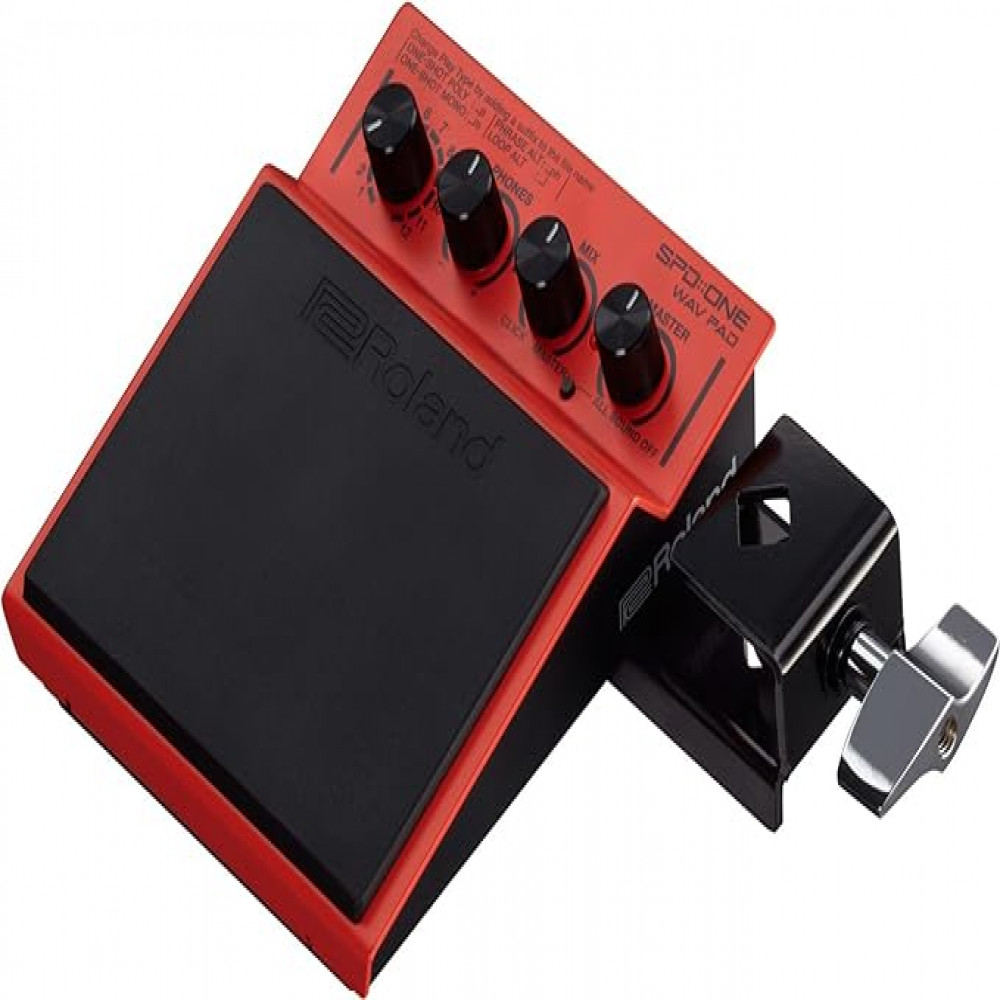

- Versatile mounting options: floor/tabletop or fitting to drum hardware and mic stands with the included mounting adaptor.
Product Specifications
Features | |
Number of Recordable Wave Data | 12 |
Number of Recordable Wave Data | *Layer and Click waves data are excluded |
Memory | 4 GB (approx. 360 min. in stereo) |
Data Format | WAV (44.1 kHz, 16 bits, Stereo/Mono) |
Controls | WAVE knob |
Controls | [PHONES] knob |
Controls | [MIX] knob |
Controls | [MASTER] knob |
Controls | [ALL SOUND OFF] button |
Controls | [THRES] knob |
Controls | [SENS] knob |
Controls | [POWER] switch |
Indicator | TRIG Indicator |

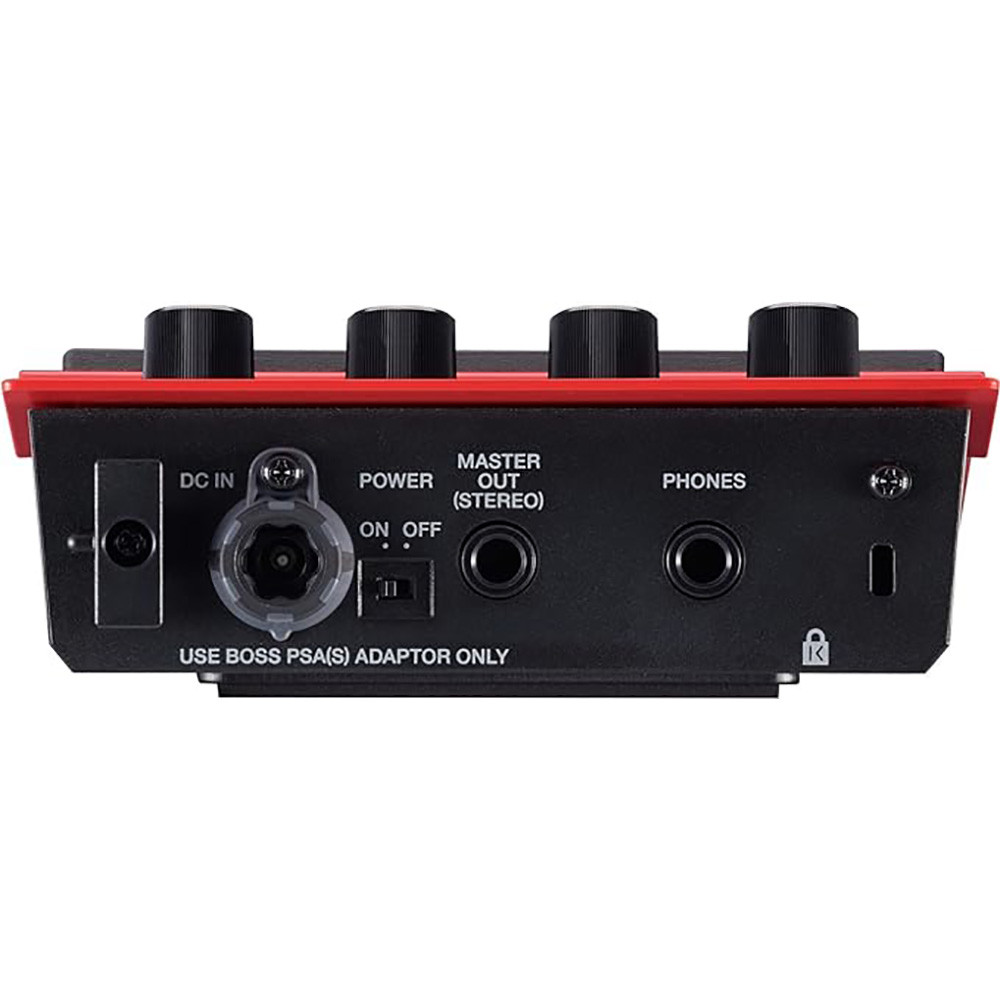

Connectors | MASTER OUT (STEREO) jack: Stereo 1/4-inch phone type |
Connectors | PHONES jack: Stereo 1/4-inch phone type |

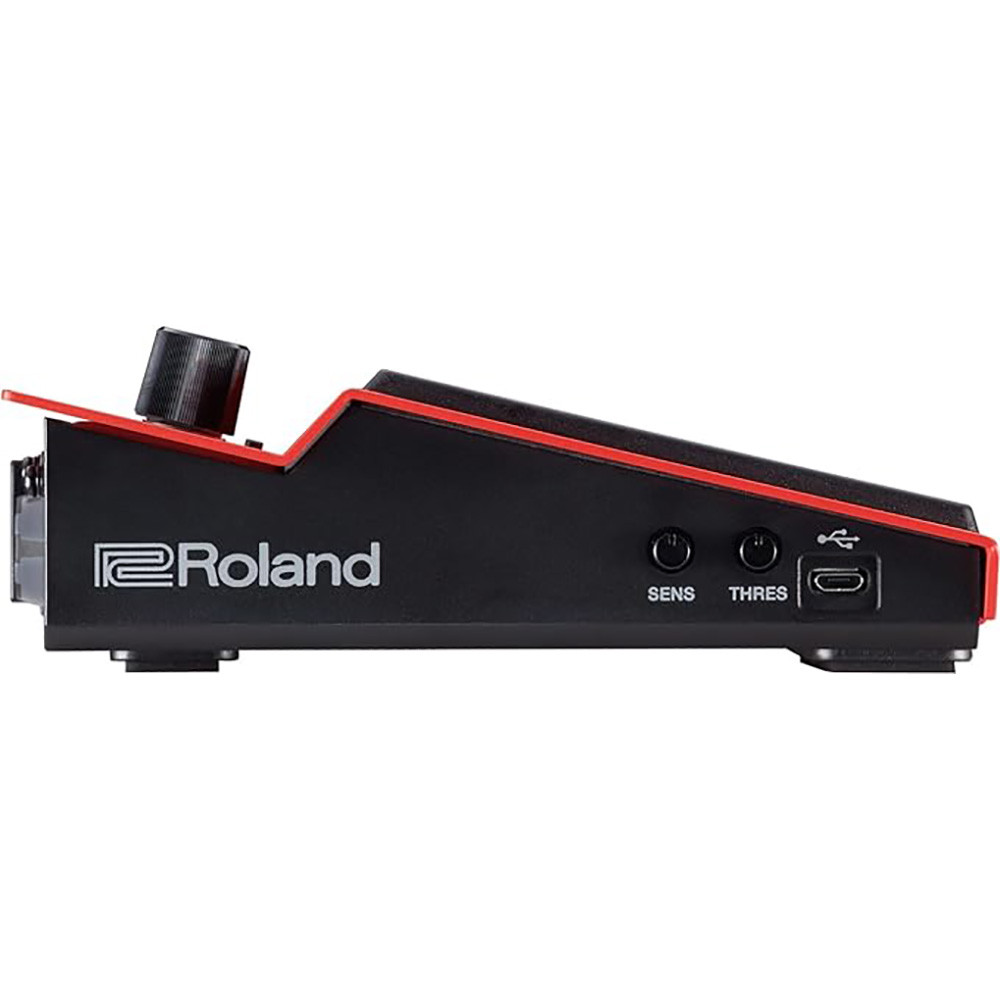

Connectors | USB port: Micro-B type |
Connectors | DC IN jack |
USB | Mass Storage Class |
USB | MIDI |

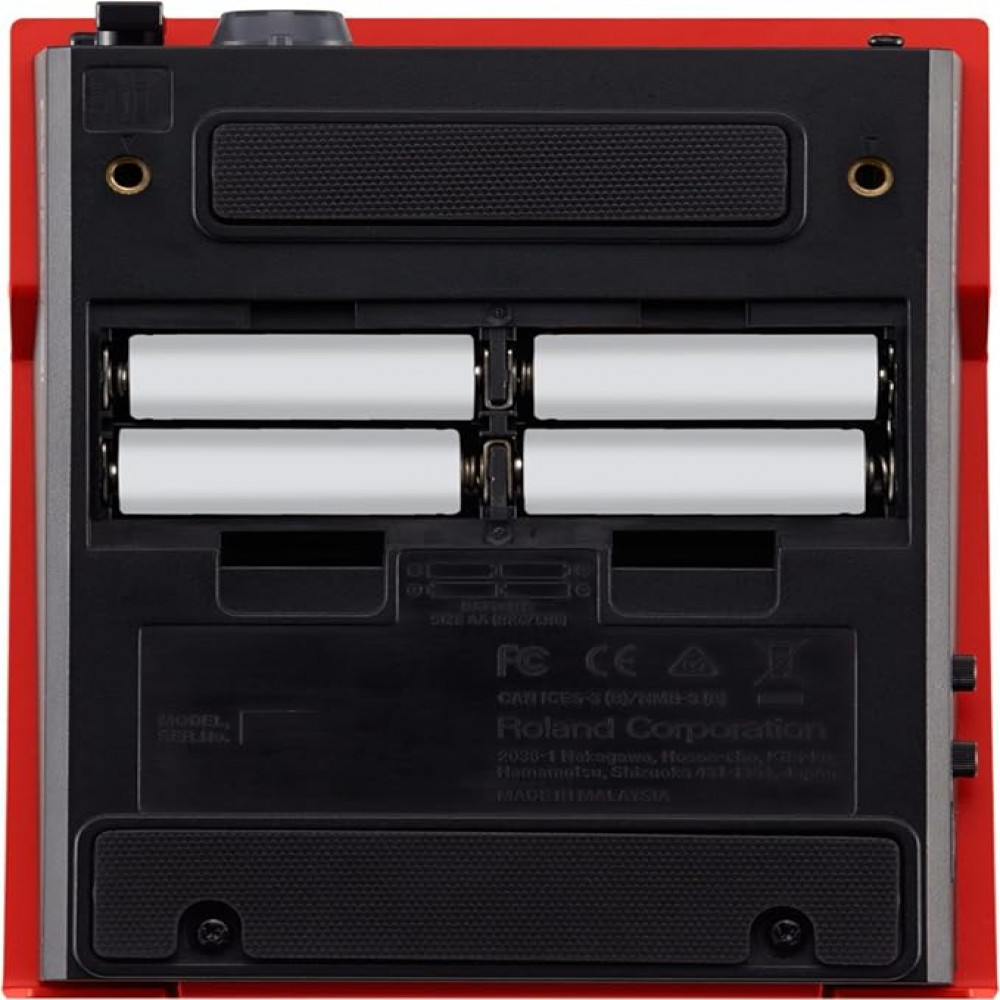

Power Supply | Rechargeable Ni-MH battery (AA, HR6) x 4 |
Power Supply | Alkaline battery (AA, LR6) x 4 |
Power Supply | AC adaptor (DC9V) |
Current Draw | 300 mA (DC IN) |
Current Draw | *Expected battery life under continuous use |
Current Draw | Rechargeable Ni-MH battery (AA, HR6): |
Current Draw | Normal use: Approx. 7hours |
Current Draw | Maximum load use: Approx. 4hours |
Current Draw | Alkaline battery (AA, LR6): |
Current Draw | Normal use: Approx. 6hours |
Current Draw | Maximum load use: Approx. 3hours |
Current Draw | *These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
Accessories | Owner's manual |
Accessories | Leaflet "USING THE UNIT SAFELY" |
Accessories | Attachment |
Accessories | Attachment screws x 2 |
Accessories | Holder mounting screws (bolt x 1, nut x 1, washers x 2)* |
Accessories | *Acceptable rod diameters: 8.0–12.7 mm (3/8–1/2 inch) |
Accessories | Alkaline batteries (AA, LR6) x 4 |
Options (sold separately) | AC adaptor: PSA-S series |
Options (sold separately) | Stereo Split Cable: PCS-31L |
Options (sold separately) | Personal drum monitor: PM-10 |
Options (sold separately) | Headphones: RH-300V |
