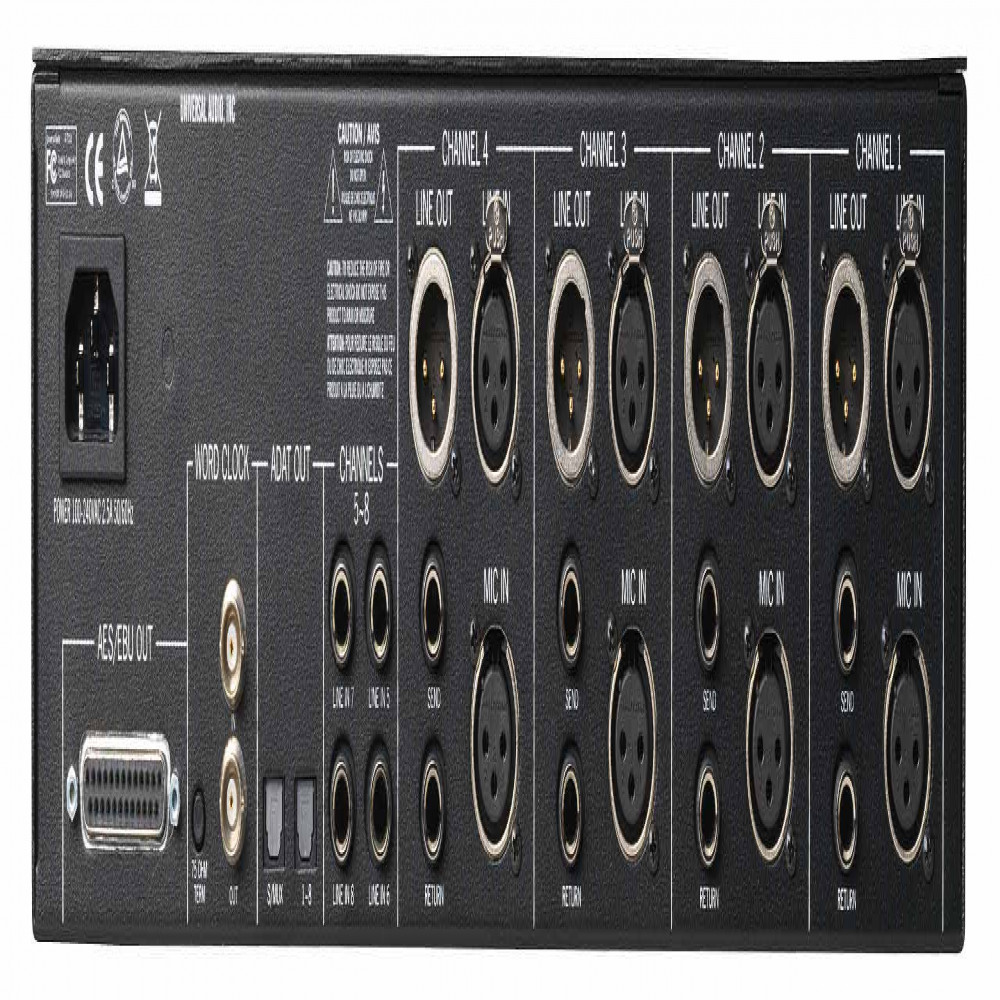

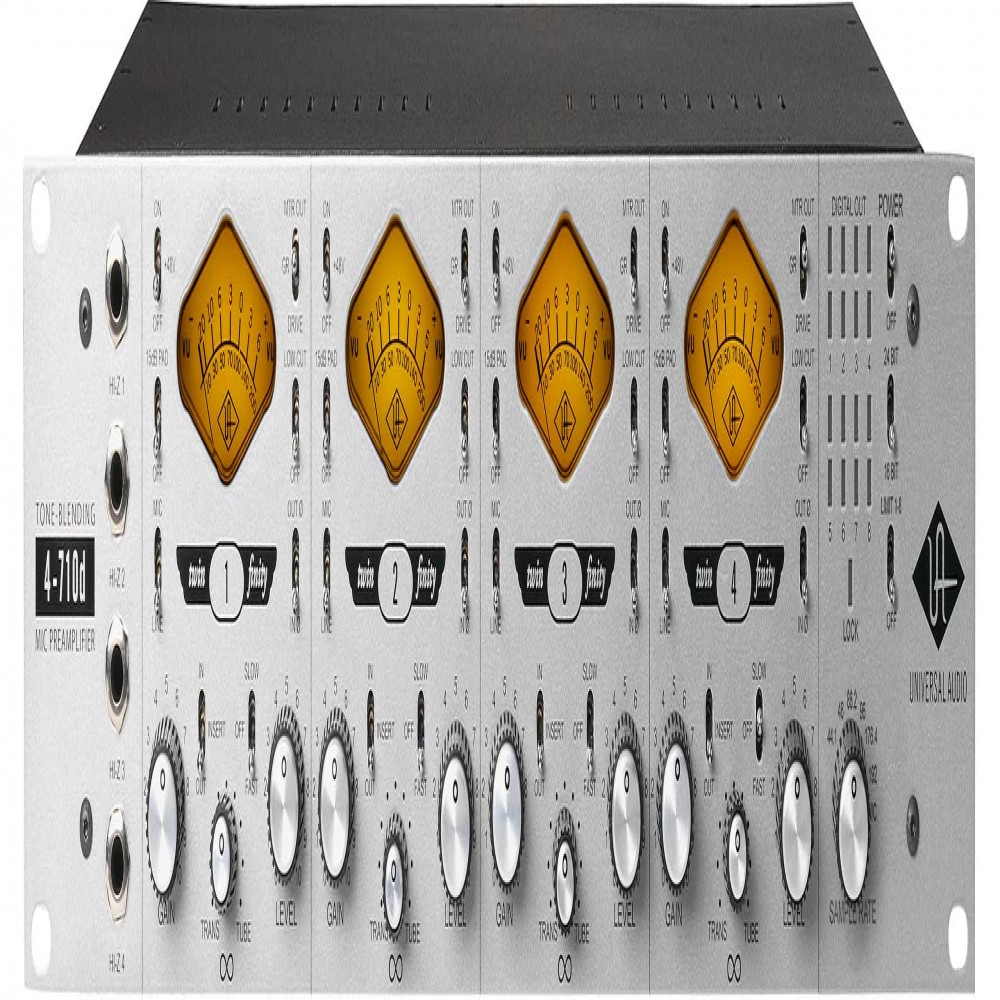

Universal Audio 4710D 4-channel Microphone Preamp & Compressor
₹247,690.00
By merging the best of UA’s classic analog design with smart modern features and workflow enhancements, the 4-710d is the most flexible microphone preamp in the UA lineup.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
By merging the best of UA’s classic analog design with smart modern features and workflow enhancements, the 4-710d is the most flexible microphone preamp in the UA lineup.
- Balanced send/return inserts (half-normalled).
- 48V phantom power.
- 75 Hz low cut filter.
- Polarity switch.
- Monolithic balanced output stage.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Line Out | |
| Gain Range | 56dB |
| Min Gain | 14dB |
| Max Gain | 70dB |
| Max Input Level (bal) | 6.7dBu |
| Max Output Level (bal) | 20dBu |
| Input Impedance (bal) | 2k? |
| Input Impedance (Hi-Z) | 2.2M? |
| Output Impedance (bal) | 600 ? |
| Equiv. Input Noise (150?, 56dB gain) | -127dBu |
| Frequency response (20Hz-20kHz) | #ERROR! |
| Low Cut Filter | |
| Type | Bessel 2nd Order |
| Corner Frequency | 75Hz |
| Attenuation (20Hz) | -23dB. |
| Pad | |
| Attenuation | 15dB |
| Phantom Power Current (per jack) | 10 mA |
| Voltage | 48V ±1V |
| Compressor | |
| Threshold | 10dBu |
| Compression Ratio | 0.16736111111111 |
| Fast Attack Time | 0.3ms |
| Fast Release Time | 100ms |
| Slow Attack Time | 2.0ms |
| Slow Release Time | 1100ms |
| Line Inputs (Ch 1-4) | |
| THD+N (-1dBFS) | -100dB (0.001%) |
| SNR (A-Wt) | 110dB |
| Dynamic Range (-60dBFS, A-wt) | 110dB |
| Frequency response | #ERROR! |
| THD+N (-1dBFS) | -103dB (0.0007%) |
| SNR (A-Wt) | 117dB |
| Dynamic Range (-60dBFS, A-Wt) | 117dB |
| Frequency response | ±0.1dB |
