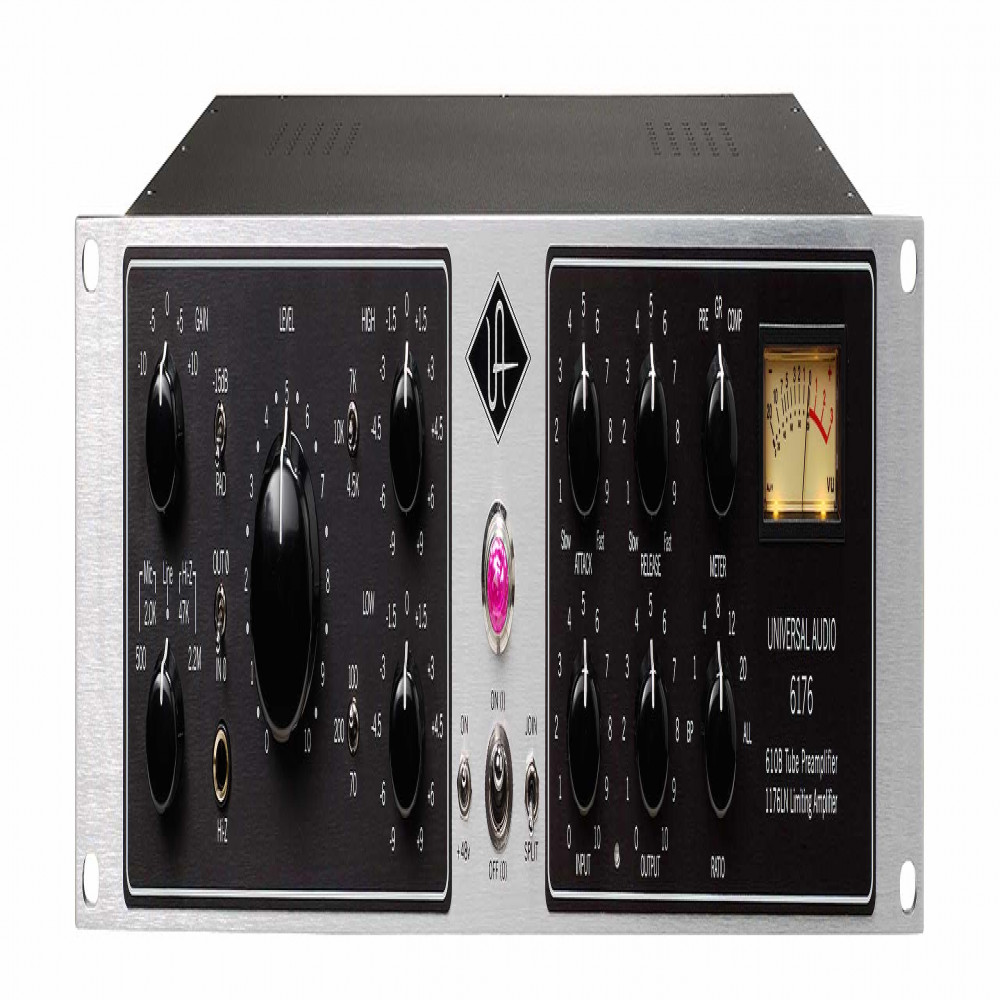

Universal Audio 6176 Vintage Channel Strip
₹276,285.00
The 6176 Vintage Channel Strip combines the alluring, all-tube sounds of the legendary Bill Putnam-designed 610 microphone preamp, with the signature FET compression of our 1176LN, to create the ultimate recording channel strip.
In Stock & Ready to ship
0 views Today
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warranty
Experience In-Store Like Buying Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Product Description
The 6176 Vintage Channel Strip combines the alluring, all-tube sounds of the legendary Bill Putnam-designed 610 microphone preamp, with the signature FET compression of our 1176LN, to create the ultimate recording channel strip.
- High and Low frequency shelving EQ.
- Variable impedance Input, Gain, and Output levels.
- Mic, balanced Line, and Hi-Z inputs.
- Ultra-quiet operation.
- Stereo interconnection via 1176-SA.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| PREAMP | |
| Microphone Input Impedance | Selectable, 500 O(ohms) or 2k |
| Balanced Line Input Impedance | 20k O |
| Hi-Z Input Impedance | Selectable between 2.2 M O or 47 k O |
| Maximum Microphone Input Level | #ERROR! |
| Maximum Output Level | #ERROR! |
| Internal Output Impedance | 80 O |
| Recommended Minimum Load | 600 O |
| Frequency Response | 20 Hz to 20 kHz +0, -1 dB |
| Maximum Gain | 65 dB (500 O input impedance) |
| Signal-to-Noise Ratio | > 90 dB (@ maximum gain) |
| Limiting Amplifier | |
| Input Impedance | Selectable, 15k O (ohms) or 600 O |
| Output Load | Impedance 600 O (floating) |
| Frequency Response | 20 Hz to 20 kHz ± 1 dB |
| Gain | 40 dB, ± 1 dB |
| Distortion | > 0.5% T.H.D. from 50 Hz – 15 kHz with limiting, at 1.1 seconds release setting. Output of +22 dBm with no greater than 0.5% T.H.D. |
| Signal-to-Noise Ratio | > 75 dB |
| Attack Time | Adjustable, from 20 to 800 microseconds |
| Release Time | Adjustable, from 50 milliseconds to 1.1 seconds |
| Stereo Interconnection | Optional, using 1176SA stereo interconnect accessory |
| General | |
| Tube Complement | (1) 12AX7A, (1) 12AT7A |
| Power Requirements | 115V/230V |
| Power Connector | Detachable IEC power cable. |
| Fuse | 400 mA time delay (slow blow) / 115 V200 mA time delay (slow blow) / 230 V |
| Power Indicator Light | 28 V bulb (type 1819) |
| Dimensions 1 | 9" W x 3.5" H x 12.25" D (two rack unit) |
| Weight | 12 lb |
