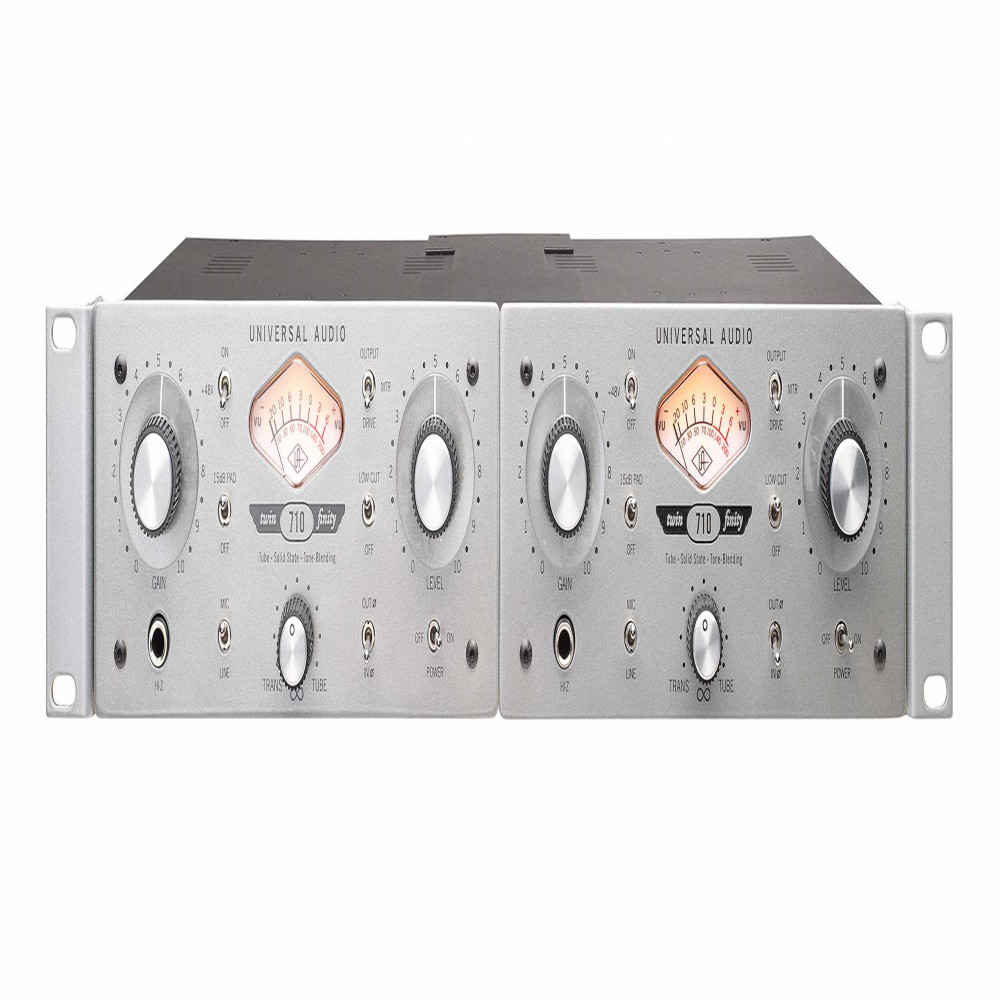

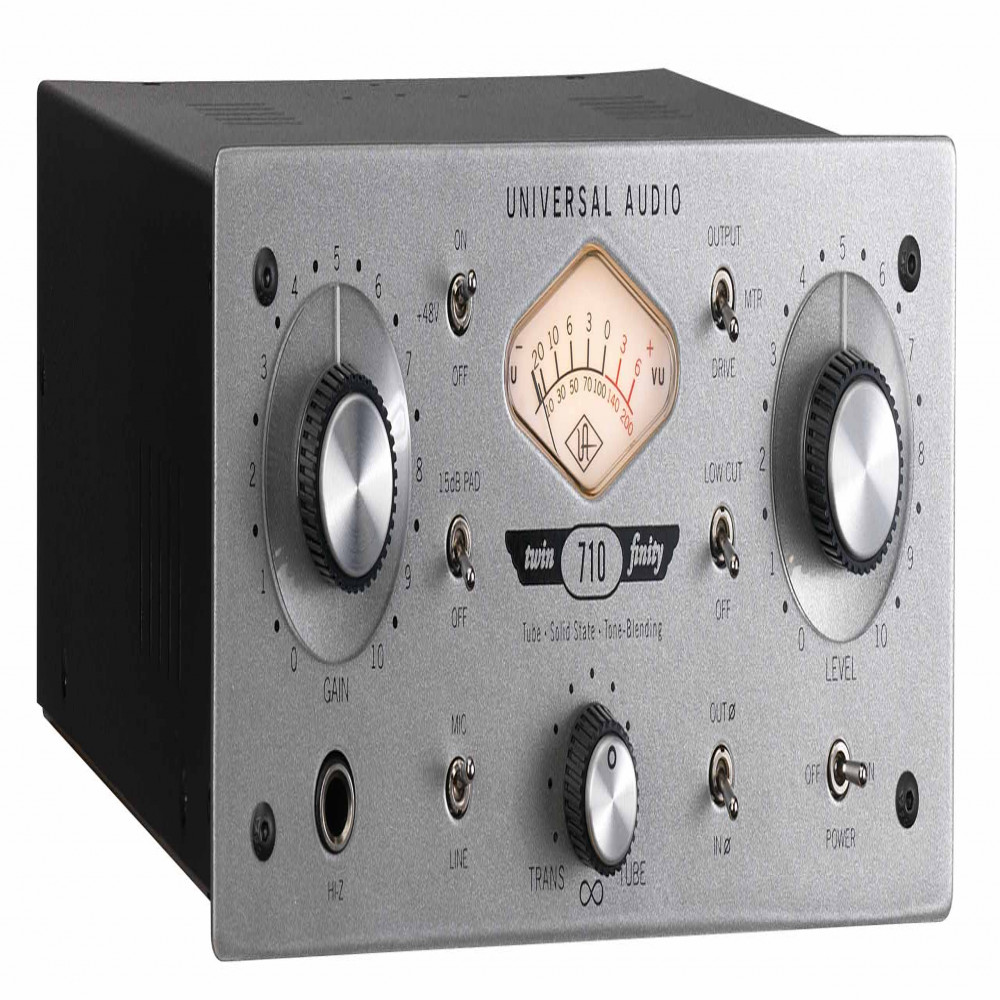

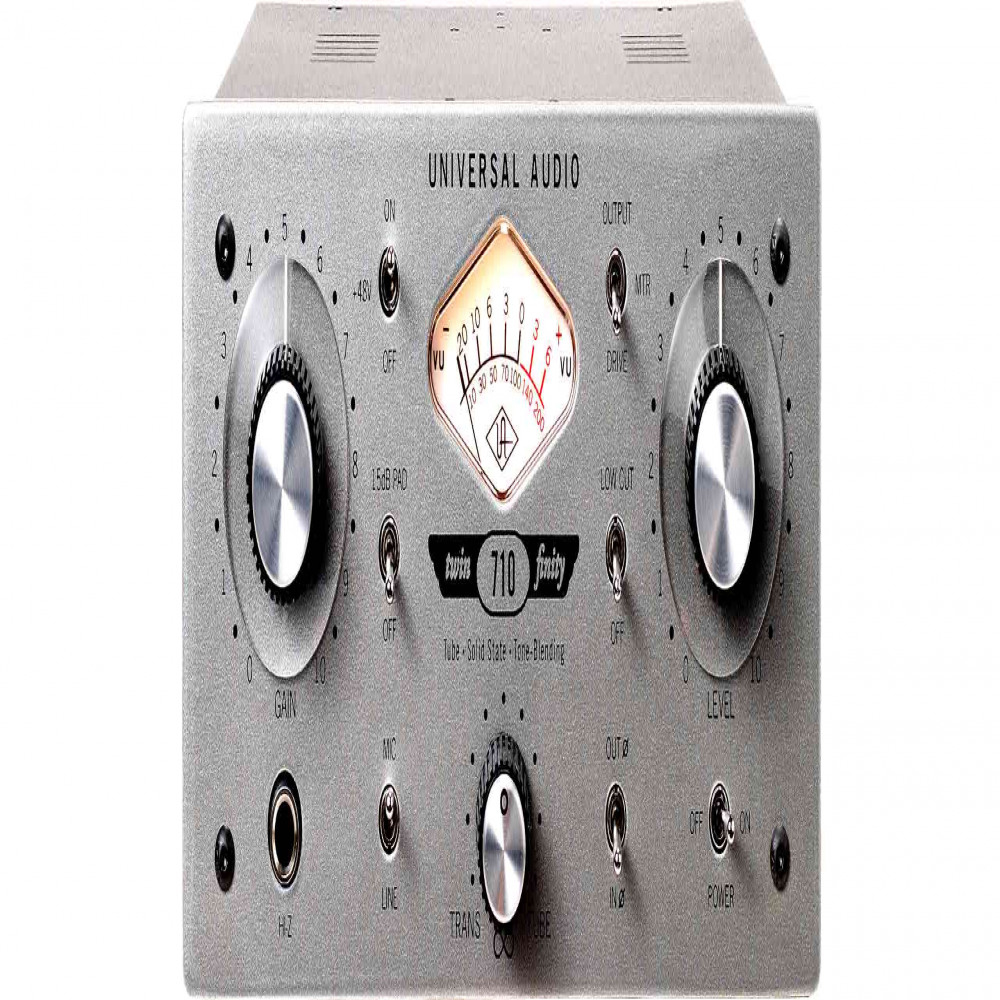

Universal Audio 710TF Twin-Finity Tone-Blending Mic Amplifier
₹95,205.00
The award-winning 710 Twin-Finity™ is a radical UA mic preamp design that combines both the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
The award-winning 710 Twin-Finity™ is a radical UA mic preamp design that combines both the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit. The 710 was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps.
- Twin-Finity™ Tone-Blending Mic/Line Preamp & Hi-Z Instrument DI.
- Dual-Path 310 volt Class-A Tube and Transimpedance Solid State Preamp.
- Phase-Aligned "Tone-Blending" of Tube and Solid State.
- Dual Gain Stages: Wire with Gain to Creamy to Crunchy.
- Discrete JFET DI with 2.2M ohm Ultra Hi-Z impedance.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| INPUTS | |
| Microphone | Female XLR |
| Balanced Line | Female XLR |
| Unbalanced Instrument | (1/4" jack) (D.I.) |
| OUTPUTS | |
| Balanced Line | Male XLR |
| Features | |
| Tube Complement | 12ax7 |
| Pad | -15dB |
| High Pass Filter | 75Hz |
| Maximum Power Consumption | 160mA @120VAC, 20W |
| Power Requirements | 100-240VAC |
| Dimensions | 8.45W x 3.5H x 10.25D |
| Weight | 5.25 lb |
| IMPEDANCE | |
| Mic Input Impedance | 2K ohms |
| Line Input Impedance | 10K ohms |
| Hi-Z Input Impedance | 2.2M ohms |
| Internal Output Impedance | 600 ohms |
| Gain/Levels | |
| Gain Range for Unit | -Infinity to 70dBu |
| Mic Range Gain Pot | 10 ~ 60 dBu |
| Line Range Gain Pot | -10 ~ 40 dBu |
| Hi-Z Range Gain Pot | -10 ~ 40 dBu |
| FREQUENCY RESPONSE | |
| Mic Frequency Response | 20Hz to 100kHz +/- 0.2 dBu |
| Line Frequency Response | 20Hz to 100kHz +/- 0.2 dBu |
| Hi-Z Frequency Response | 20Hz to 100kHz +/- 0.2 dBu |
| Distortion | |
| Min THD+Noise @ +4dBU | 0.1% tube 0.005% solid-state |
