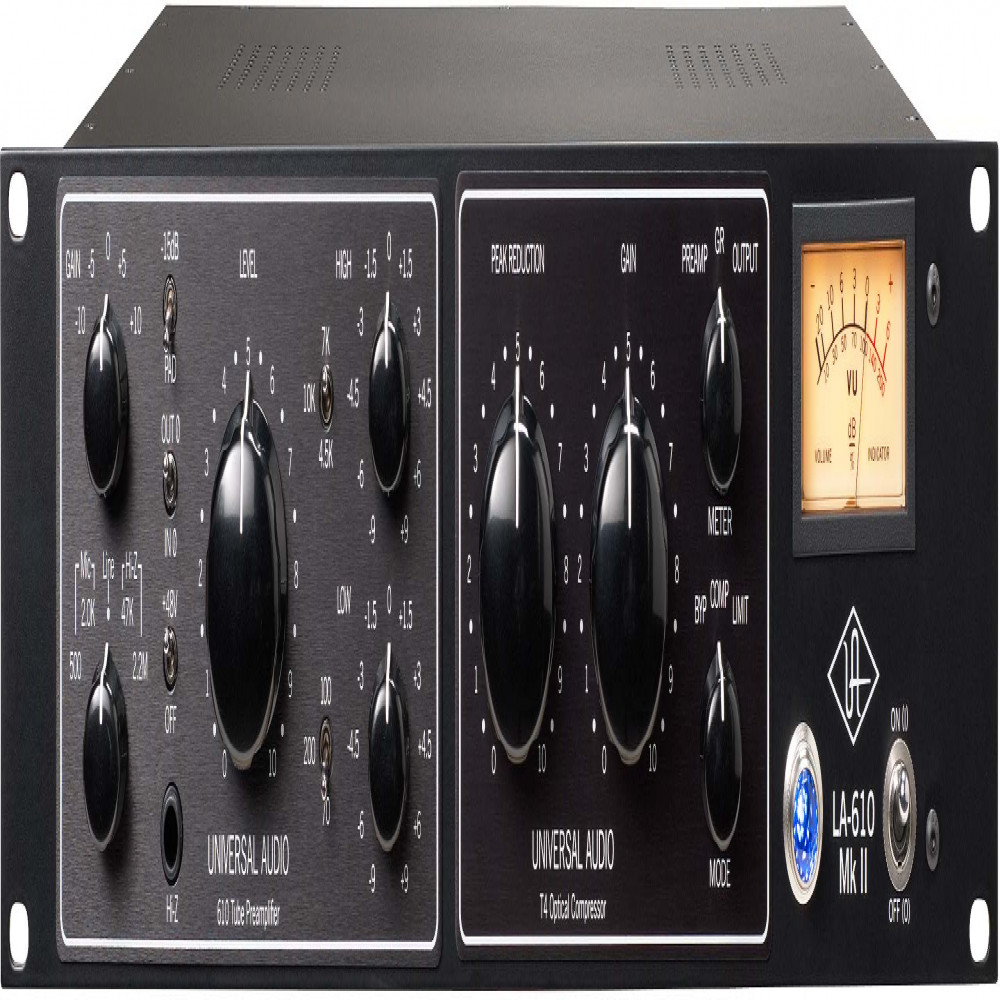

Universal Audio LA610 MkII Classic Tube Recording Channel
₹190,510.00
The LA-610 MkII combines a hand-built in the USA, all-tube, vintage mic preamp design, heard on classic albums by Coldplay, The Beach Boys, and Van Halen with authentic Teletronix T4 opto-compression circuitry.
In Stock & Ready to ship
0 views Today
9940046621
A True In-store Experience
Get expert advice on choosing the right instrument.
Talk to our product expert at
9940046621
9940046621
Reasons to choose us
Secured shipping24/7 expert serviceGenuine productsStandard warrantyProduct Description
The LA-610 MkII combines a hand-built in the USA, all-tube, vintage mic preamp design heard on classic albums by Coldplay, The Beach Boys, and Van Halen with authentic Teletronix T4 opto-compression circuitry.
- All-tube mic preamp design derived from legendary Bill Putnam-designed 610 modular console.
- Authentic Teletronix LA-2A-style T4 opto-compressor section.
- Mic pre with Gain and Level controls, variable impedance switching, and instrument DI for recording tone “color”.
- High and Low frequency shelving EQ.
- Complete vintage channel strip at groundbreaking price within project studio reach.
Want to sell yours?
List, sell, and get paid securely for your old musical instruments, connecting with music enthusiasts at your preferred price
Product Specifications
| Features | |
| Microphone Input Impedance | Selectable, 500 Ohms or 2k Ohms |
| Balanced Line Input Impedance | 20k Ohms |
| Hi-Z Input Impedance | Selectable, 2.2M Ohms or 47k Ohms |
| Maximum Microphone Input Level | -8 dBu (2K input Imp. & 15 dB Pad in) |
| Maximum Output Level | 80 Ohms |
| Recommended Minimum Load | 600 Ohms |
| Frequency Response | 20 Hz to 20 kHz α 0.5dB |
| Maximum Gain | 40 dB (Line), +77dB (Mic) |
| Noise Floor | -72 dBu 20 - 20kHz (Line In, unity Gain) |
| Compressor Ratio | 3:1, soft knee, program dependent |
| Limiter Ratio | ?: 1, soft knee, program dependent |
| Attack Time | 10 ms, program dependent |
| Release Time | Dual stage: 60 ms for 1st release, then 1 - 15 sec. |
| Tube Complement | (3) 12AX7, (1) 12AT7, (1) EL84 |
| Power Requirements | 240V |
| Power Consumption | 30 Watts |
| Power Connector | Detachable IEC power cable |
| Dimensions | 19" W x 3.5" H x 12.25" D (two rack spaces) |
| Weight | 12 lbs. |
